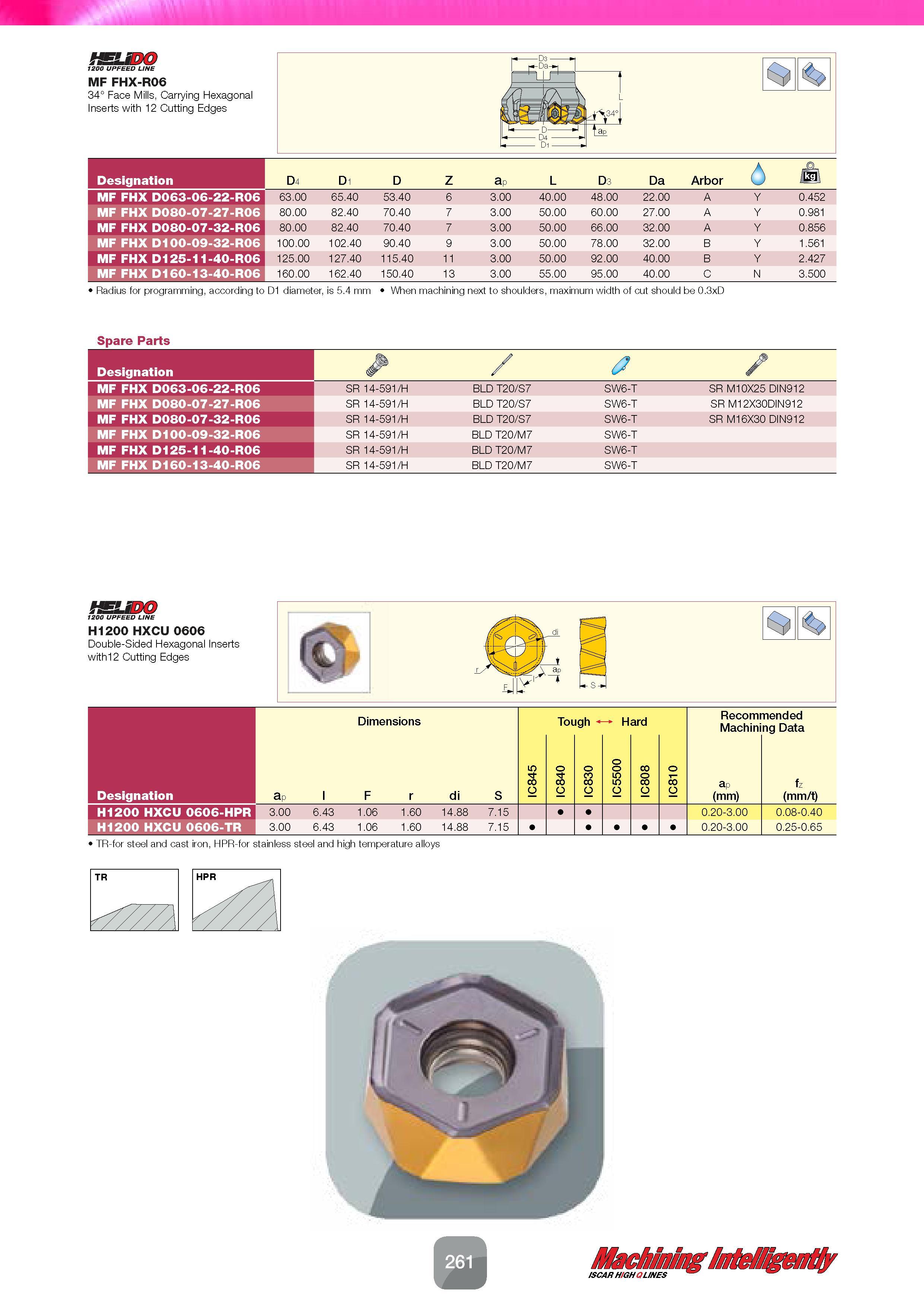

HELiDO 1200 UPFEED LINE MF FHX-R06 34° Face Mills, Carrying Hexagonal Inserts with 12 Cutting Edges Designation D4 Di D Z ap L D3 Da Arbor 6 MF FHX D063-06-22-R06 63.00 65.40 53.40 6 3.00 40.00 48.00 22.00 A Y 0.452 MF FHX D080-07-27-R06 80.00 82.40 70.40 7 3.00 50.00 60.00 27.00 A Y 0.981 MF FHX D080-07-32-R06 80.00 82.40 70.40 7 3.00 50.00 66.00 32.00 A Y 0.856 MF FHX D100-09-32-R06 100.00 102.40 90.40 9 3.00 50.00 78.00 32.00 B Y 1.561 MF FHX D125-11-40-R06 125.00 127.40 115.40 11 3.00 50.00 92.00 40.00 B Y 2.427 MF FHX D160-13-40-R06 160.00 162.40 150.40 13 3.00 55.00 95.00 40.00 C N 3.500 Radius for programming, according to D1 diameter, is 5.4 mm When machining next to shoulders, maximum width of cut should be 0.3xD Spare Parts Designation / MF FHX D063-06-22-R06 SR 14-591/H BLD T20/S7 SW6-T SR M10X25 DIN912 MF FHX D080-07-27-R06 SR 14-591/H BLD T20/S7 SW6-T SR M12X30DIN912 MF FHX D080-07-32-R06 SR 14-591/H BLD T20/S7 SW6-T SR M16X30 DIN912 MF FHX D100-09-32-R06 SR 14-591/H BLD T20/M7 SW6-T MF FHX D125-11-40-R06 SR 14-591/H BLD T20/M7 SW6-T MF FHX D160-13-40-R06 SR 14-591/H BLD T20/M7 SW6-T HELiDO 1200 UPFEED LINE H1200 HXCU 0606 Double-Sided Hexagonal Inserts with12 Cutting Edges ap Dimensions Recommended Machining Data Designation ap l F r di S m 8 IC IC840 IC830 0 IC CO 0 8 IC IC810 ap (mm) fz (mm/t) H1200 HXCU 0606-HPR 3.00 6.43 1.06 1.60 14.88 7.15 0.20-3.00 0.08-0.40 H1200 HXCU 0606-TR 3.00 6.43 1.06 1.60 14.88 7.15 0.20-3.00 0.25-0.65 TR-for steel and cast iron, HPR-for stainless steel and high temperature alloys
