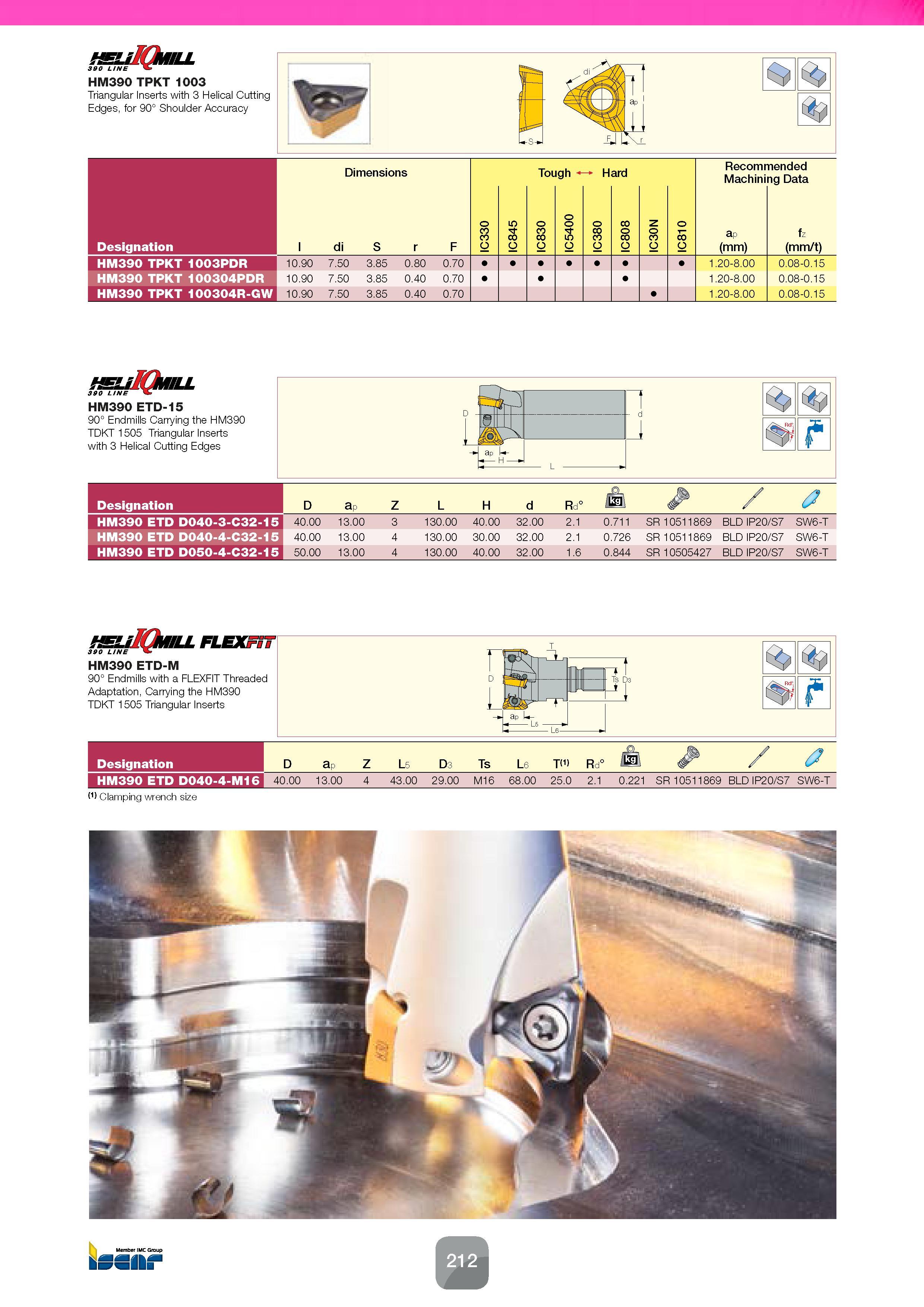

390 LINE HM390 TPKT 1003 Triangular Inserts with 3 Helical Cutting Edges, for 90° Shoulder Accuracy S Dimensions di 10.90 7.50 3.85 0.80 0.70 10.90 7.50 3.85 0.40 0.70 10.90 7.50 3.85 0.40 0.70 Recommended Machining Data ap (mm) 1.20-8.00 1.20-8.00 1.20-8.00 fz (mm/t) 0.08-0.15 0.08-0.15 0.08-0.15 S F r Designation HM390 TPKT 1003PDR HM390 TPKT 100304PDR HM390 TPKT 100304R-GW 390 LINE HM390 ETD-15 90° Endmills Carrying the HM390 TDKT 1505 Triangular Inserts with 3 Helical Cutting Edges I rEv 1 ap i - L 0 F D ap Z L H d R Q. O / J 40.00 13.00 3 130.00 40.00 32.00 2.1 0.711 SR 10511869 BLD IP20/S7 SW6-T 40.00 13.00 4 130.00 30.00 32.00 2.1 0.726 SR 10511869 BLD IP20/S7 SW6-T 50.00 13.00 4 130.00 40.00 32.00 1.6 0.844 SR 10505427 BLD IP20/S7 SW6-T D Designation HM390 ETD D040-3-C32-15 HM390 ETD D040-4-C32-15 HM390 ETD D050-4-C32-15 'SLi/Ckf/LL FLEX 390 LINE HM390 ETD-M 90° Endmills with a FLEXFIT Threaded Adaptation, Carrying the HM390 TDKT 1505 Triangular Inserts f- Pt \ Ts D3 PJ f6 Designation D ap Z L5 D3 Ts L6 T(1) Rd° / HM390 ETD D040-4-M16 40.00 13.00 4 43.00 29.00 M16 68.00 25.0 2.1 0.221 SR 10511869 BLD IP20/S7 SW6-T (1) Clamping wrench size T
