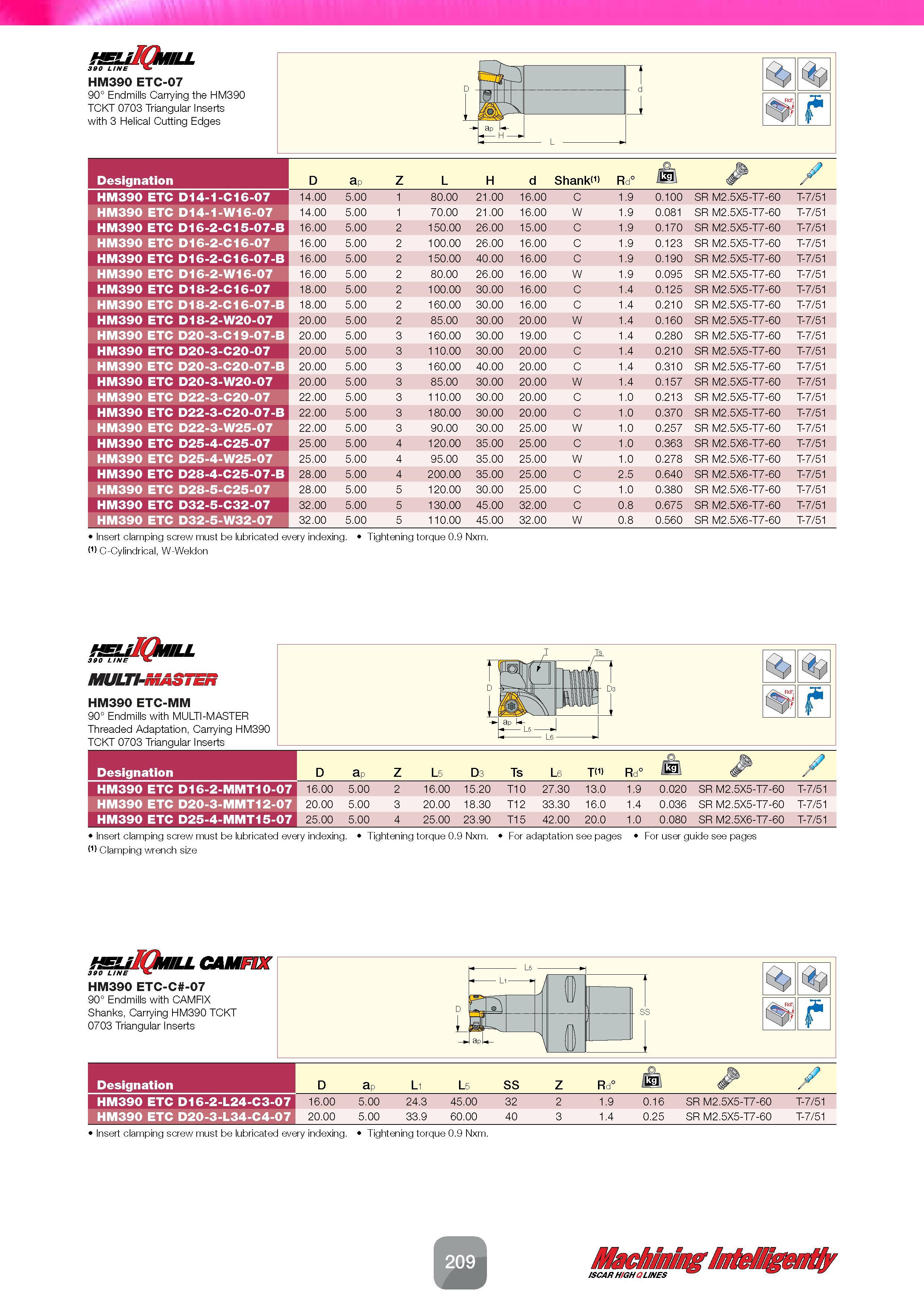

Designation D ap Z L H d Shanki1) Rd° / HM390 ETC D14-1-C16-07 14.00 5.00 1 80.00 21.00 16.00 C 1.9 0.100 SR M2.5X5-T7-60 T-7/51 HM390 ETC D14-1-W16-07 14.00 5.00 1 70.00 21.00 16.00 W 1.9 0.081 SR M2.5X5-T7-60 T-7/51 HM390 ETC D16-2-C15-07-B 16.00 5.00 2 150.00 26.00 15.00 C 1.9 0.170 SR M2.5X5-T7-60 T-7/51 HM390 ETC D16-2-C16-07 16.00 5.00 2 100.00 26.00 16.00 C 1.9 0.123 SR M2.5X5-T7-60 T-7/51 HM390 ETC D16-2-C16-07-B 16.00 5.00 2 150.00 40.00 16.00 C 1.9 0.190 SR M2.5X5-T7-60 T-7/51 HM390 ETC D16-2-W16-07 16.00 5.00 2 80.00 26.00 16.00 W 1.9 0.095 SR M2.5X5-T7-60 T-7/51 HM390 ETC D18-2-C16-07 18.00 5.00 2 100.00 30.00 16.00 C 1.4 0.125 SR M2.5X5-T7-60 T-7/51 HM390 ETC D18-2-C16-07-B 18.00 5.00 2 160.00 30.00 16.00 C 1.4 0.210 SR M2.5X5-T7-60 T-7/51 HM390 ETC D18-2-W20-07 20.00 5.00 2 85.00 30.00 20.00 W 1.4 0.160 SR M2.5X5-T7-60 T-7/51 HM390 ETC D20-3-C19-07-B 20.00 5.00 3 160.00 30.00 19.00 C 1.4 0.280 SR M2.5X5-T7-60 T-7/51 HM390 ETC D20-3-C20-07 20.00 5.00 3 110.00 30.00 20.00 C 1.4 0.210 SR M2.5X5-T7-60 T-7/51 HM390 ETC D20-3-C20-07-B 20.00 5.00 3 160.00 40.00 20.00 C 1.4 0.310 SR M2.5X5-T7-60 T-7/51 HM390 ETC D20-3-W20-07 20.00 5.00 3 85.00 30.00 20.00 W 1.4 0.157 SR M2.5X5-T7-60 T-7/51 HM390 ETC D22-3-C20-07 22.00 5.00 3 110.00 30.00 20.00 C 1.0 0.213 SR M2.5X5-T7-60 T-7/51 HM390 ETC D22-3-C20-07-B 22.00 5.00 3 180.00 30.00 20.00 C 1.0 0.370 SR M2.5X5-T7-60 T-7/51 HM390 ETC D22-3-W25-07 22.00 5.00 3 90.00 30.00 25.00 W 1.0 0.257 SR M2.5X5-T7-60 T-7/51 HM390 ETC D25-4-C25-07 25.00 5.00 4 120.00 35.00 25.00 C 1.0 0.363 SR M2.5X6-T7-60 T-7/51 HM390 ETC D25-4-W25-07 25.00 5.00 4 95.00 35.00 25.00 W 1.0 0.278 SR M2.5X6-T7-60 T-7/51 HM390 ETC D28-4-C25-07-B 28.00 5.00 4 200.00 35.00 25.00 C 2.5 0.640 SR M2.5X6-T7-60 T-7/51 HM390 ETC D28-5-C25-07 28.00 5.00 5 120.00 30.00 25.00 C 1.0 0.380 SR M2.5X6-T7-60 T-7/51 HM390 ETC D32-5-C32-07 32.00 5.00 5 130.00 45.00 32.00 C 0.8 0.675 SR M2.5X6-T7-60 T-7/51 HM390 ETC D32-5-W32-07 32.00 5.00 5 110.00 45.00 32.00 W 0.8 0.560 SR M2.5X6-T7-60 T-7/51 Insert clamping screw must be lubricated every indexing. Tightening torque 0.9 Nxm. (1) C-Cylindrical, W-Weldon MULTI-MASTER HM390 ETC-MM 90° Endmills with MULTI-MASTER Threaded Adaptation, Carrying HM390 TCKT 0703 Triangular Inserts T Ts I r PJ 'mil t s s. ilsj t -jffi I_6 Insert clamping screw must be lubricated every indexing. (1) Clamping wrench size Tightening torque 0.9 Nxm. For adaptation see pages For user guide see pages Designation D ap Z L5 D3 Ts L6 TM> Rd° / HM390 ETC D16-2-MMT10-07 16.00 5.00 2 16.00 15.20 T10 27.30 13.0 1.9 0.020 SR M2.5X5-T7-60 T-7/51 HM390 ETC D20-3-MMT12-07 20.00 5.00 3 20.00 18.30 T12 33.30 16.0 1.4 0.036 SR M2.5X5-T7-60 T-7/51 HM390 ETC D25-4-MMT15-07 25.00 5.00 4 25.00 23.90 T15 42.00 20.0 1.0 0.080 SR M2.5X6-T7-60 T-7/51 '£uf(kf/LL CAM 390 LINE HM390 ETC-C -07 90° Endmills with CAMFIX Shanks, Carrying HM390 TCKT 0703 Triangular Inserts Designation D ap L1 L5 SS Z Rd° ra y HM390 ETC D16-2-L24-C3-07 16.00 5.00 24.3 45.00 32 2 1.9 0.16 SR M2.5X5-T7-60 T-7/51 HM390 ETC D20-3-L34-C4-07 20.00 5.00 33.9 60.00 40 3 1.4 0.25 SR M2.5X5-T7-60 T-7/51 Insert clamping screw must be lubricated every indexing. Tightening torque 0.9 Nxm. ISCAR HGH LINES
