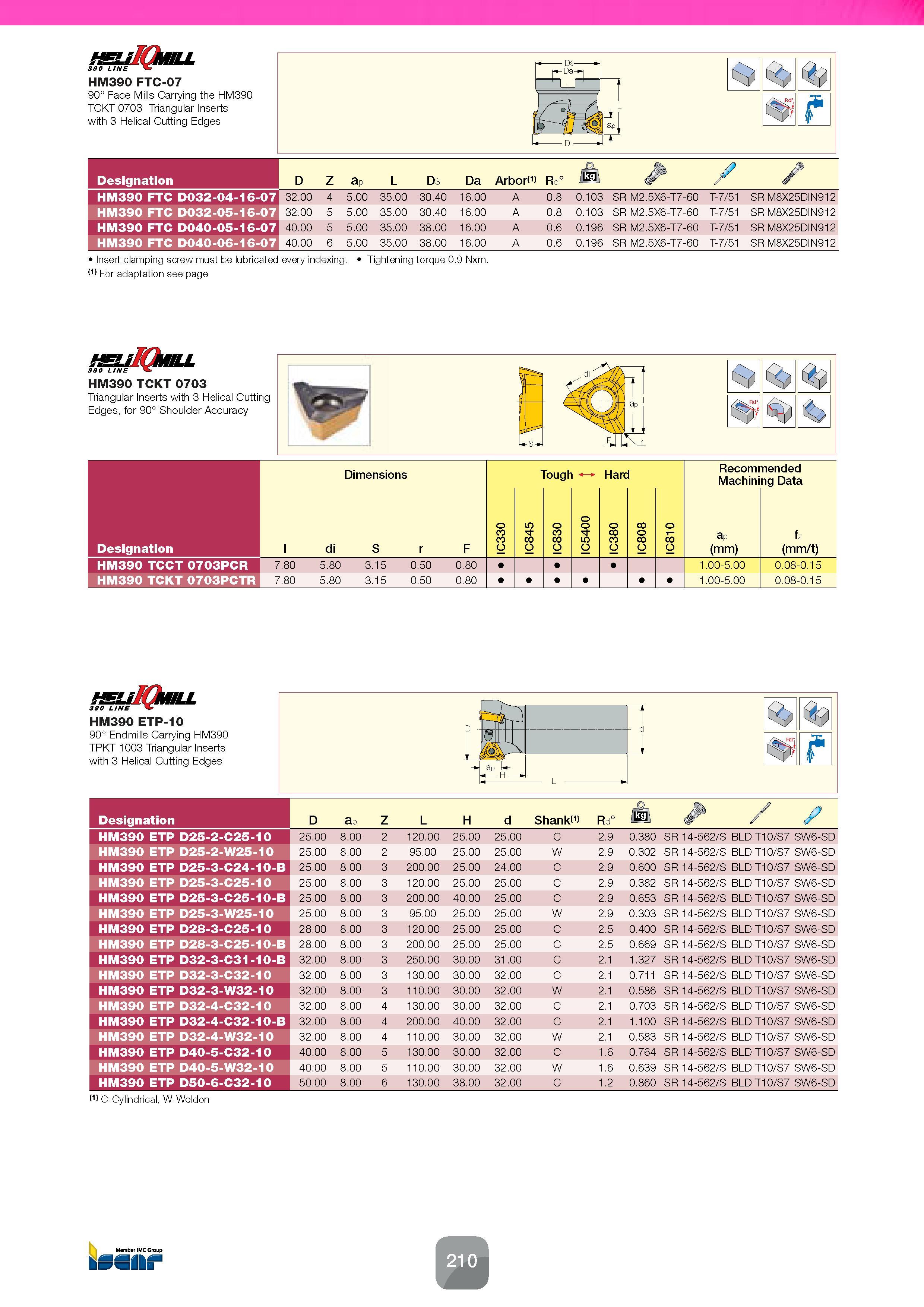

390 LINE HM390 FTC-07 90° Face Mills Carrying the HM390 TCKT 0703 Triangular Inserts with 3 Helical Cutting Edges r d rD a t & J-V °i Till L M 1 ap 1 f L D r Designation D Z ap L D3 Da Arbori1) Rd° / HM390 FTC D032-04-16-07 32.00 4 5.00 35.00 30.40 16.00 A 0.8 0.103 SR M2.5X6-T7-60 T-7/51 SR M8X25DIN912 HM390 FTC D032-05-16-07 32.00 5 5.00 35.00 30.40 16.00 A 0.8 0.103 SR M2.5X6-T7-60 T-7/51 SR M8X25DIN912 HM390 FTC D040-05-16-07 40.00 5 5.00 35.00 38.00 16.00 A 0.6 0.196 SR M2.5X6-T7-60 T-7/51 SR M8X25DIN912 HM390 FTC D040-06-16-07 40.00 6 5.00 35.00 38.00 16.00 A 0.6 0.196 SR M2.5X6-T7-60 T-7/51 SR M8X25DIN912 Insert clamping screw must be lubricated every indexing. (1) For adaptation see page Tightening torque 0.9 Nxm. 3S0 LINE HM390 TCKT 0703 Triangular Inserts with 3 Helical Cutting Edges, for 90° Shoulder Accuracy S 1% Dimensions Designation l di S r F IC330 IC845 IC830 IC5400 IC380 IC808 IC810 ap (mm) fz (mm/t) HM390 TCCT 0703PCR 7.80 5.80 3.15 0.50 0.80 1.00-5.00 0.08-0.15 HM390 TCKT 0703PCTR 7.80 5.80 3.15 0.50 0.80 1.00-5.00 0.08-0.15 Recommended Machining Data 390 LINE HM390 ETP-10 90° Endmills Carrying HM390 TPKT 1003 Triangular Inserts with 3 Helical Cutting Edges Designation D ap Z L H d Shank<1> Rd° /ra HM390 ETP D25-2-C25-10 25.00 8.00 2 120.00 25.00 25.00 C 2.9 0.380 SR 14-562/S BLD T10/S7 SW6-SD HM390 ETP D25-2-W25-10 25.00 8.00 2 95.00 25.00 25.00 W 2.9 0.302 SR 14-562/S BLD T10/S7 SW6-SD HM390 ETP D25-3-C24-10-B 25.00 8.00 3 200.00 25.00 24.00 C 2.9 0.600 SR 14-562/S BLD T10/S7 SW6-SD HM390 ETP D25-3-C25-10 25.00 8.00 3 120.00 25.00 25.00 C 2.9 0.382 SR 14-562/S BLD T10/S7 SW6-SD HM390 ETP D25-3-C25-10-B 25.00 8.00 3 200.00 40.00 25.00 C 2.9 0.653 SR 14-562/S BLD T10/S7 SW6-SD HM390 ETP D25-3-W25-10 25.00 8.00 3 95.00 25.00 25.00 W 2.9 0.303 SR 14-562/S BLD T10/S7 SW6-SD HM390 ETP D28-3-C25-10 28.00 8.00 3 120.00 25.00 25.00 C 2.5 0.400 SR 14-562/S BLD T10/S7 SW6-SD HM390 ETP D28-3-C25-10-B 28.00 8.00 3 200.00 25.00 25.00 C 2.5 0.669 SR 14-562/S BLD T10/S7 SW6-SD HM390 ETP D32-3-C31-10-B 32.00 8.00 3 250.00 30.00 31.00 C 2.1 1.327 SR 14-562/S BLD T10/S7 SW6-SD HM390 ETP D32-3-C32-10 32.00 8.00 3 130.00 30.00 32.00 C 2.1 0.711 SR 14-562/S BLD T10/S7 SW6-SD HM390 ETP D32-3-W32-10 32.00 8.00 3 110.00 30.00 32.00 W 2.1 0.586 SR 14-562/S BLD T10/S7 SW6-SD HM390 ETP D32-4-C32-10 32.00 8.00 4 130.00 30.00 32.00 C 2.1 0.703 SR 14-562/S BLD T10/S7 SW6-SD HM390 ETP D32-4-C32-10-B 32.00 8.00 4 200.00 40.00 32.00 C 2.1 1.100 SR 14-562/S BLD T10/S7 SW6-SD HM390 ETP D32-4-W32-10 32.00 8.00 4 110.00 30.00 32.00 W 2.1 0.583 SR 14-562/S BLD T10/S7 SW6-SD HM390 ETP D40-5-C32-10 40.00 8.00 5 130.00 30.00 32.00 C 1.6 0.764 SR 14-562/S BLD T10/S7 SW6-SD HM390 ETP D40-5-W32-10 40.00 8.00 5 110.00 30.00 32.00 W 1.6 0.639 SR 14-562/S BLD T10/S7 SW6-SD HM390 ETP D50-6-C32-10 50.00 8.00 6 130.00 38.00 32.00 C 1.2 0.860 SR 14-562/S BLD T10/S7 SW6-SD I1) C-Cylindrical, W-Weldon JS Member IMC Group d H L
