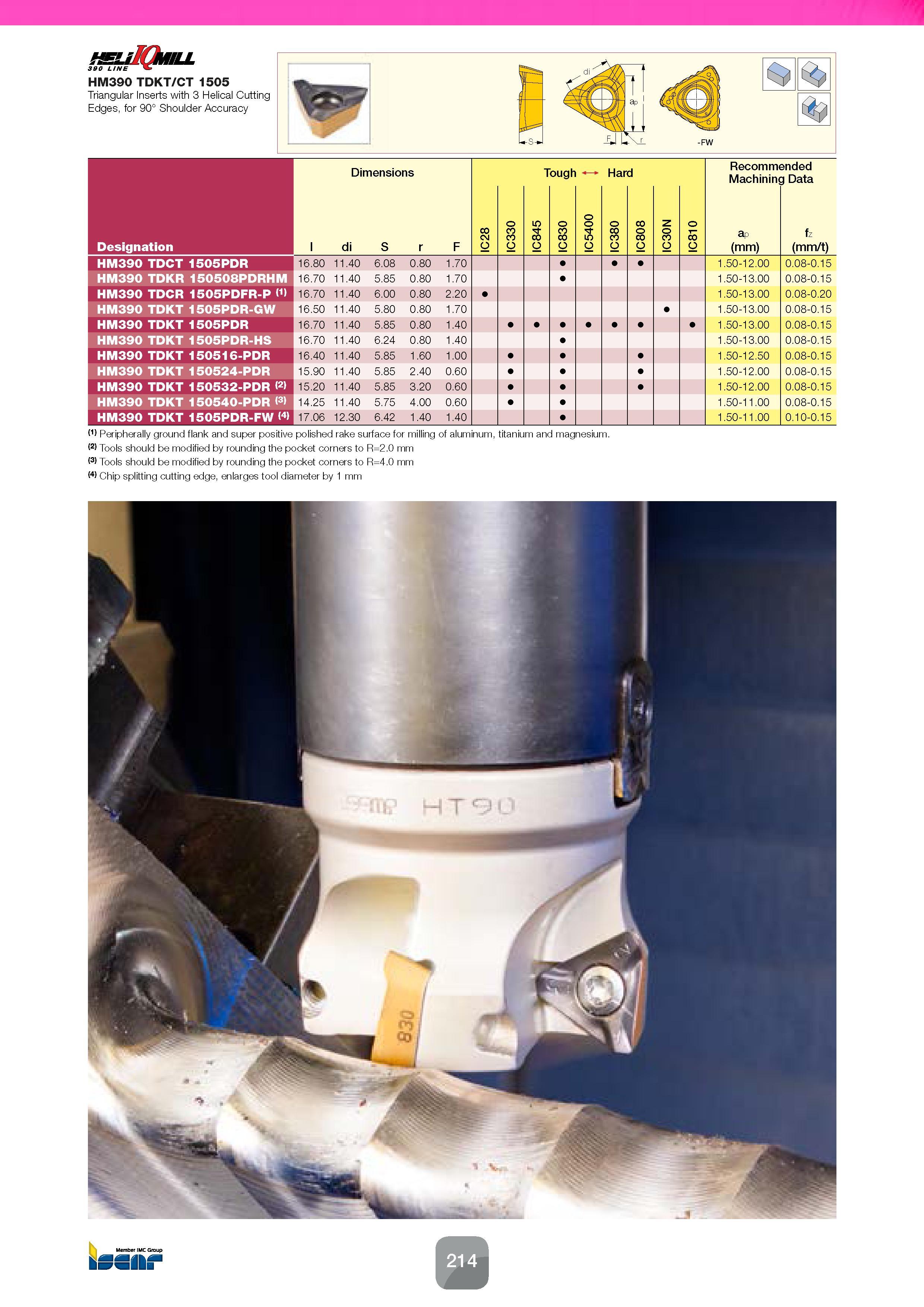

390 LINE HM390 TDKT/CT 1505 Triangular Inserts with 3 Helical Cutting Edges, for 90° Shoulder Accuracy S Dimensions Designation l di S r F IC28 IC330 IC845 IC830 IC5400 IC380 IC808 IC30N IC810 ap (mm) fz (mm/t) HM390 TDCT 1505PDR 16.80 11.40 6.08 0.80 1.70 1.50-12.00 0.08-0.15 HM390 TDKR 150508PDRHM 16.70 11.40 5.85 0.80 1.70 1.50-13.00 0.08-0.15 HM390 TDCR 1505PDFR-P (1) 16.70 11.40 6.00 0.80 2.20 1.50-13.00 0.08-0.20 HM390 TDKT 1505PDR-GW 16.50 11.40 5.80 0.80 1.70 1.50-13.00 0.08-0.15 HM390 TDKT 1505PDR 16.70 11.40 5.85 0.80 1.40 1.50-13.00 0.08-0.15 HM390 TDKT 1505PDR-HS 16.70 11.40 6.24 0.80 1.40 1.50-13.00 0.08-0.15 HM390 TDKT 150516-PDR 16.40 11.40 5.85 1.60 1.00 1.50-12.50 0.08-0.15 HM390 TDKT 150524-PDR 15.90 11.40 5.85 2.40 0.60 1.50-12.00 0.08-0.15 HM390 TDKT 150532-PDR (2) 15.20 11.40 5.85 3.20 0.60 1.50-12.00 0.08-0.15 HM390 TDKT 150540-PDR (3) 14.25 11.40 5.75 4.00 0.60 1.50-11.00 0.08-0.15 HM390 TDKT 1505PDR-FW (4) 17.06 12.30 6.42 1.40 1.40 1.50-11.00 0.10-0.15 Recommended Machining Data (1) Peripherally ground flank and super positive polished rake surface for milling of aluminum, titanium and magnesium. (2) Tools should be modified by rounding the pocket corners to R=2.0 mm (3) Tools should be modified by rounding the pocket corners to R=4.0 mm (4) Chip splitting cutting edge, enlarges tool diameter by 1 mm JS Member IMC Group
