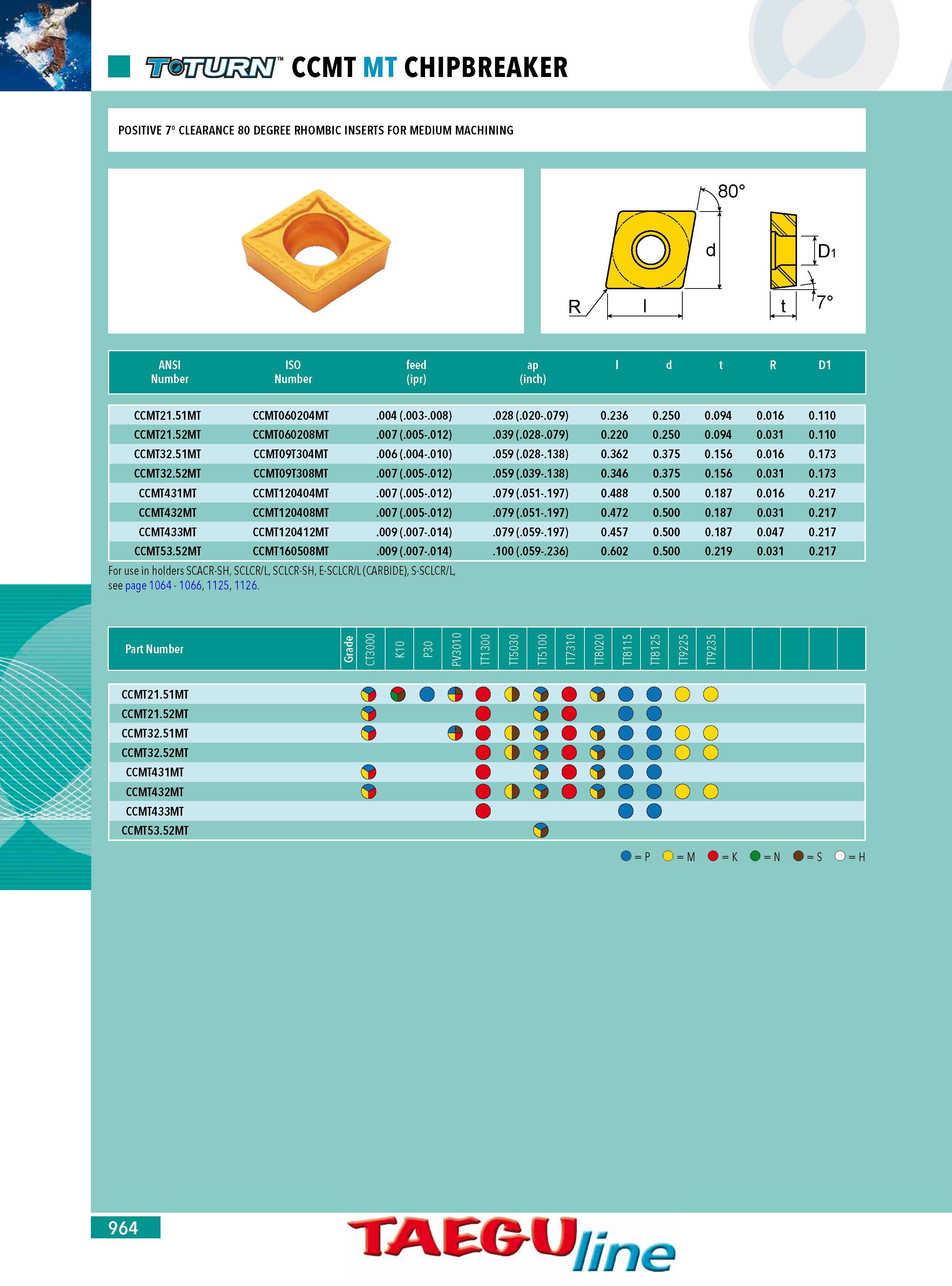

CCMT MT CHIPBREAKER POSITIVE 7 CLEARANCE 80 DEGREE RHOMBIC INSERTS FOR MEDIUM MACHINING 80 A i Di t 7 ANSI ISO feed ap ld t R D1 Number Number (ipr) (inch) For use in holders SCACR-SH SCLCR L SCLCR-SH E-SCLCR L (CARBIDE) S-SCLCR L see page 1064 - 1066 1125 1126. Part Number CCMT21.51MT CCMT060204MT .004 (.003-.008) .028 (.020-.079) 0.236 0.250 0.094 0.016 0.110 CCMT21.52MT CCMT060208MT .007 (.005-.012) .039 (.028-.079) 0.220 0.250 0.094 0.031 0.110 CCMT32.51MT CCMT09T304MT .006 (.004-.010) .059 (.028-.138) 0.362 0.375 0.156 0.016 0.173 CCMT32.52MT CCMT09T308MT .007 (.005-.012) .059 (.039-.138) 0.346 0.375 0.156 0.031 0.173 CCMT431MT CCMT120404MT .007 (.005-.012) .079 (.051-.197) 0.488 0.500 0.187 0.016 0.217 CCMT432MT CCMT120408MT .007 (.005-.012) .079 (.051-.197) 0.472 0.500 0.187 0.031 0.217 CCMT433MT CCMT120412MT .009 (.007-.014) .079 (.059-.197) 0.457 0.500 0.187 0.047 0.217 CCMT53.52MT CCMT160508MT .009 (.007-.014) .100 (.059-.236) 0.602 0.500 0.219 0.031 0.217 CCMT21.51MT Q 9 3 CCMT21.52MT O CCMT32.51MT o 9 3 O CCMT32.52MT 3 O o CCMT431MT CCMT432MT 3 3 CCMT433MT CCMT53.52MT P O M O K O N O S O H 964 TAEGU line
