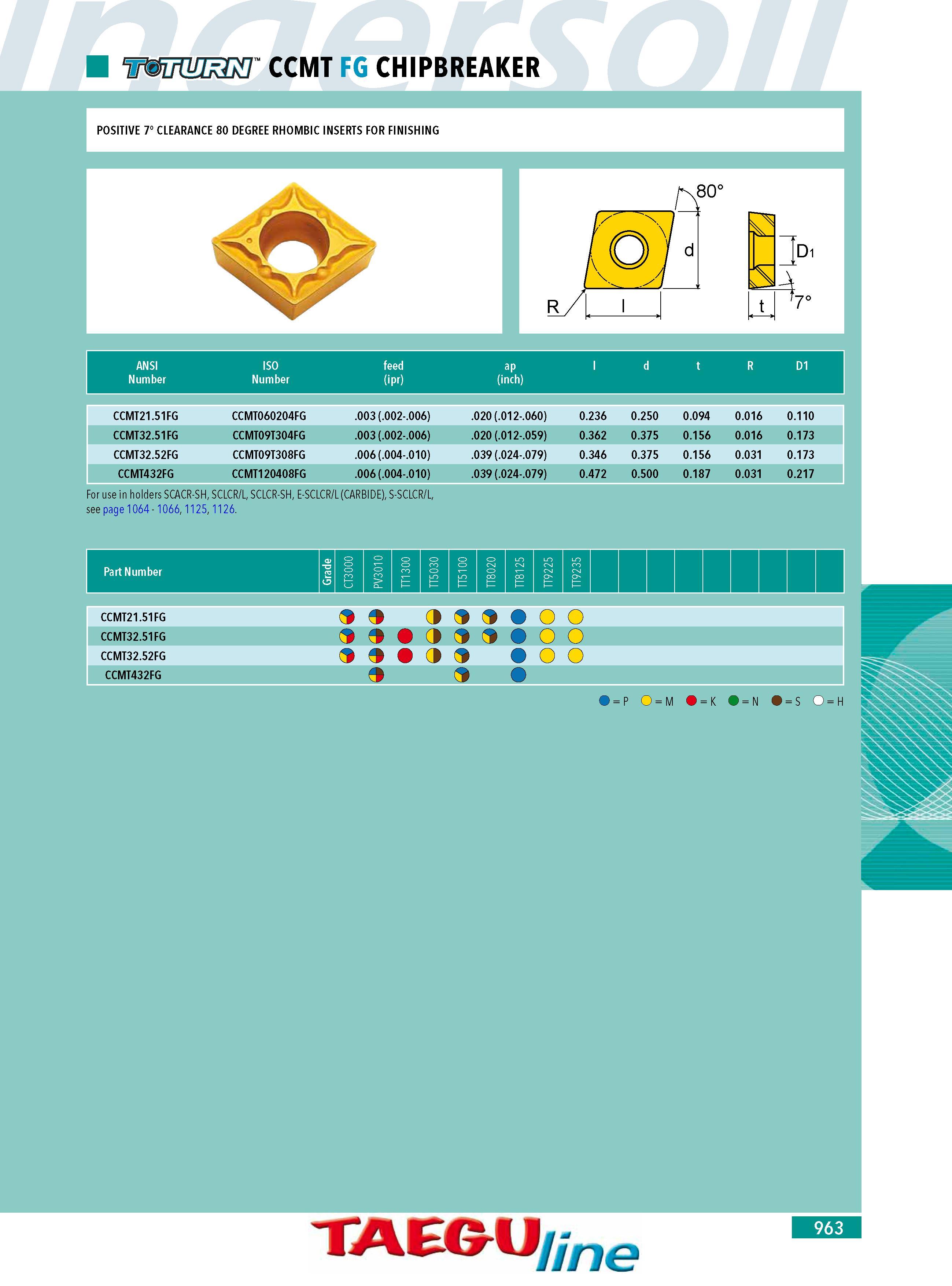

ccmt fg chipbreaker POSITIVE 7 CLEARANCE 80 DEGREE RHOMBIC INSERTS FOR FINISHING ANSI ISO feed ap ld t R D1 Number Number (ipr) (inch) CCMT21.51FG CCMT060204FG .003 (.002-.006) .020 (.012-.060) 0.236 0.250 0.094 0.016 0.110 CCMT32.51FG CCMT09T304FG .003 (.002-.006) .020 (.012-.059) 0.362 0.375 0.156 0.016 0.173 CCMT32.52FG CCMT09T308FG .006 (.004-.010) .039 (.024-.079) 0.346 0.375 0.156 0.031 0.173 CCMT432FG CCMT120408FG .006 (.004-.010) .039 (.024-.079) 0.472 0.500 0.187 0.031 0.217 For use in holders SCACR-SH SCLCR L SCLCR-SH E-SCLCR L (CARBIDE) S-SCLCR L see page 1064 - 1066 1125 1126. Part Number CCMT21.51FG 9 9 9 9 9 O o CCMT32.51FG 9 9 9 9 O () CCMT32.52FG 9 9 9 CCMT432FG 9 9 ) P O M O K N ) S O H TAEGU line 963
