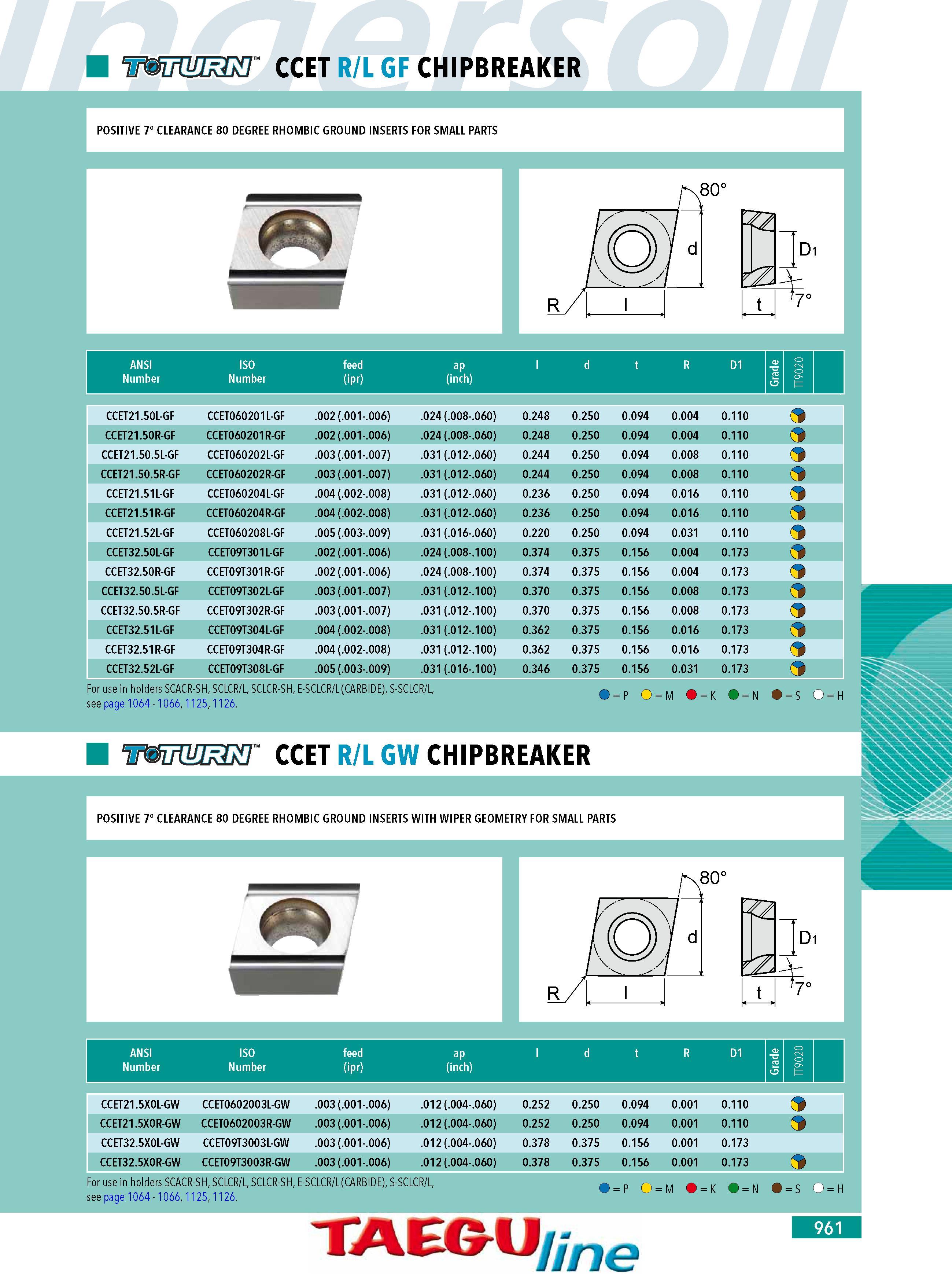

CCET R L GF CHIPBREAKER POSITIVE 7 CLEARANCE 80 DEGREE RHOMBIC GROUND INSERTS FOR SMALL PARTS ANSI ISO feed ap l d t dR D1 Number Number (ipr) (inch) CCET21.50L-GF CCET060201L-GF .002 (.001-.006) .024 (.008-.060) 0.248 0.250 0.094 0.004 0.110 CCET21.50R-GF CCET060201R-GF .002 (.001-.006) .024 (.008-.060) 0.248 0.250 0.094 0.004 0.110 CCET21.50.5L-GF CCET060202L-GF .003 (.001-.007) .031 (.012-.060) 0.244 0.250 0.094 0.008 0.110 o CCET21.50.5R-GF CCET060202R-GF .003 (.001-.007) .031 (.012-.060) 0.244 0.250 0.094 0.008 0.110 o CCET21.51L-GF CCET060204L-GF .004 (.002-.008) .031 (.012-.060) 0.236 0.250 0.094 0.016 0.110 o CCET21.51R-GF CCET060204R-GF .004 (.002-.008) .031 (.012-.060) 0.236 0.250 0.094 0.016 0.110 CCET21.52L-GF CCET060208L-GF .005 (.003-.009) .031 (.016-.060) 0.220 0.250 0.094 0.031 0.110 CCET32.50L-GF CCET09T301L-GF .002 (.001-.006) .024 (.008-.100) 0.374 0.375 0.156 0.004 0.173 CCET32.50R-GF CCET09T301R-GF .002 (.001-.006) .024 (.008-.100) 0.374 0.375 0.156 0.004 0.173 o CCET32.50.5L-GF CCET09T302L-GF .003 (.001-.007) .031 (.012-.100) 0.370 0.375 0.156 0.008 0.173 CCET32.50.5R-GF CCET09T302R-GF .003 (.001-.007) .031 (.012-.100) 0.370 0.375 0.156 0.008 0.173 o CCET32.51L-GF CCET09T304L-GF .004 (.002-.008) .031 (.012-.100) 0.362 0.375 0.156 0.016 0.173 CCET32.51R-GF CCET09T304R-GF .004 (.002-.008) .031 (.012-.100) 0.362 0.375 0.156 0.016 0.173 CCET32.52L-GF CCET09T308L-GF .005 (.003-.009) .031 (.016-.100) 0.346 0.375 0.156 0.031 0.173 o For use in holders SCACR-SH SCLCR L SCLCR-SH E-SCLCR L (CARBIDE) S-SCLCR L see page 1064 - 1066 1125 1126. P o M O 7s S O H u&uunnzr ccet r l gw chipbreaker POSITIVE 7 CLEARANCE 80 DEGREE RHOMBIC GROUND INSERTS WITH WIPER GEOMETRY FOR SMALL PARTS t 7 Dl ANSI ISO feed fe ap pl d lt dR D1 Number Number (ipr) (i (inch) CCET21.5X0L-GW CCET0602003L-GW .003 (.001-.006) .012 (.004-.060) 0.252 0.250 0.094 0.001 0.110 CCET21.5X0R-GW CCET0602003R-GW .003 (.001-.006) .012 (.004-.060) 0.252 0.250 0.094 0.001 0.110 9 CCET32.5X0L-GW CCET09T3003L-GW .003 (.001-.006) .012 (.004-.060) 0.378 0.375 0.156 0.001 0.173 CCET32.5X0R-GW CCET09T3003R-GW .003 (.001-.006) .012 (.004-.060) 0.378 0.375 0.156 0.001 0.173 1 S For use in holders SCACR-SH SCLCR L SCLCR-SH E-SCLCR L (CARBIDE) S-SCLCR L see page 1064 - 1066 1125 1126. O P O M O K O N O S O H TAEGU le 961
