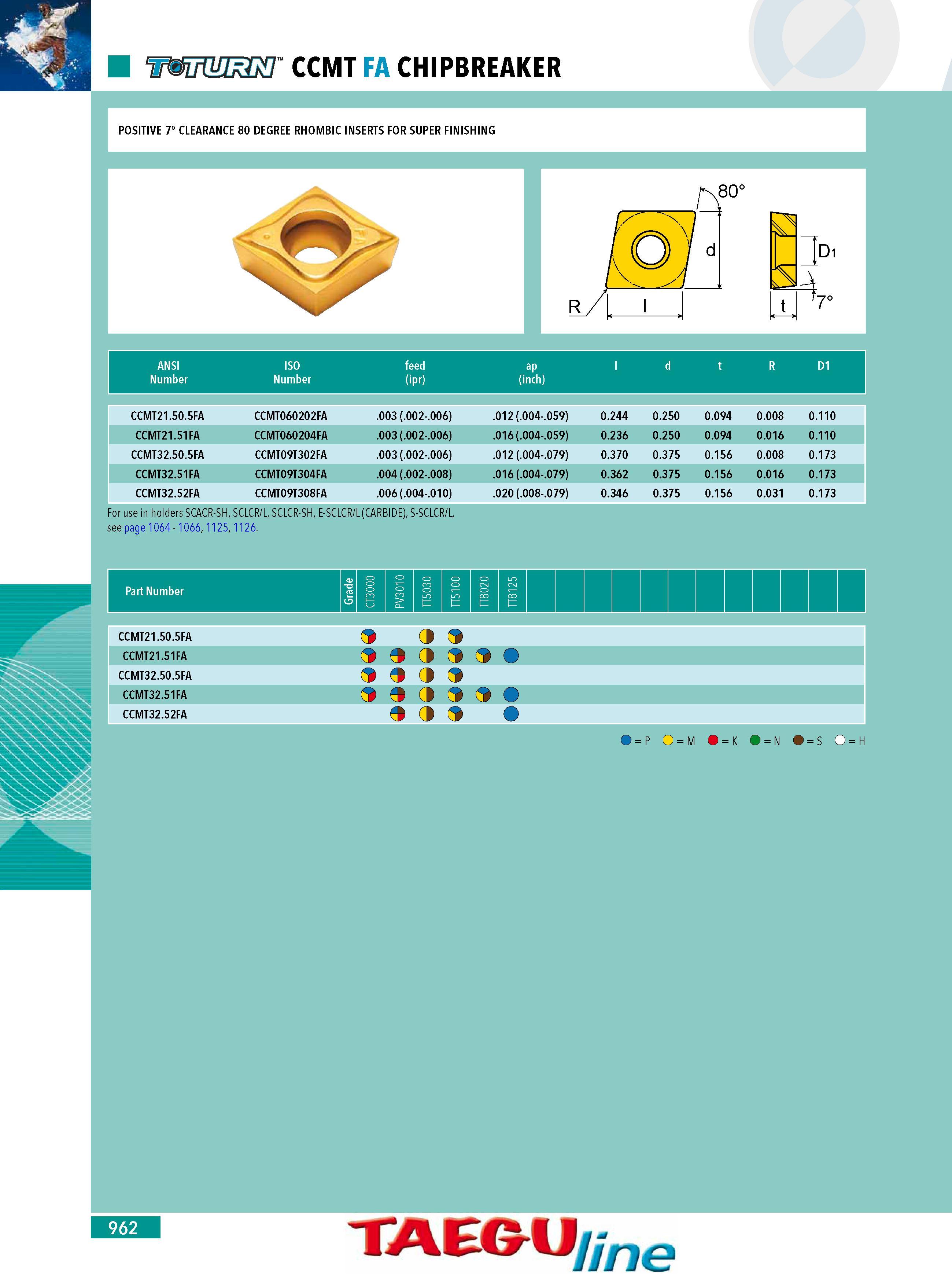

ccmt fa chipbreaker POSITIVE 7 CLEARANCE 80 DEGREE RHOMBIC INSERTS FOR SUPER FINISHING ANSI ISO feed ap ld t R D1 Number Number (ipr) (inch) CCMT21.50.5FA CCMT060202FA .003 (.002-.006) .012 (.004-.059) 0.244 0.250 0.094 0.008 0.110 CCMT21.51FA CCMT060204FA .003 (.002-.006) .016 (.004-.059) 0.236 0.250 0.094 0.016 0.110 CCMT32.50.5FA CCMT09T302FA .003 (.002-.006) .012 (.004-.079) 0.370 0.375 0.156 0.008 0.173 CCMT32.51FA CCMT09T304FA .004 (.002-.008) .016 (.004-.079) 0.362 0.375 0.156 0.016 0.173 CCMT32.52FA CCMT09T308FA .006 (.004-.010) .020 (.008-.079) 0.346 0.375 0.156 0.031 0.173 For use in holders SCACR-SH SCLCR L SCLCR-SH E-SCLCR L (CARBIDE) S-SCLCR L see page 1064 - 1066 1125 1126. Part Number CCMT21.50.5FA 9 CCMT21.51FA 9 9 9 CCMT32.50.5FA 9 9 9 9 CCMT32.51FA 9 9 9 9 9 u CCMT32.52FA 9 9 9 O P O M K O N S O H 962 TAEGU line
