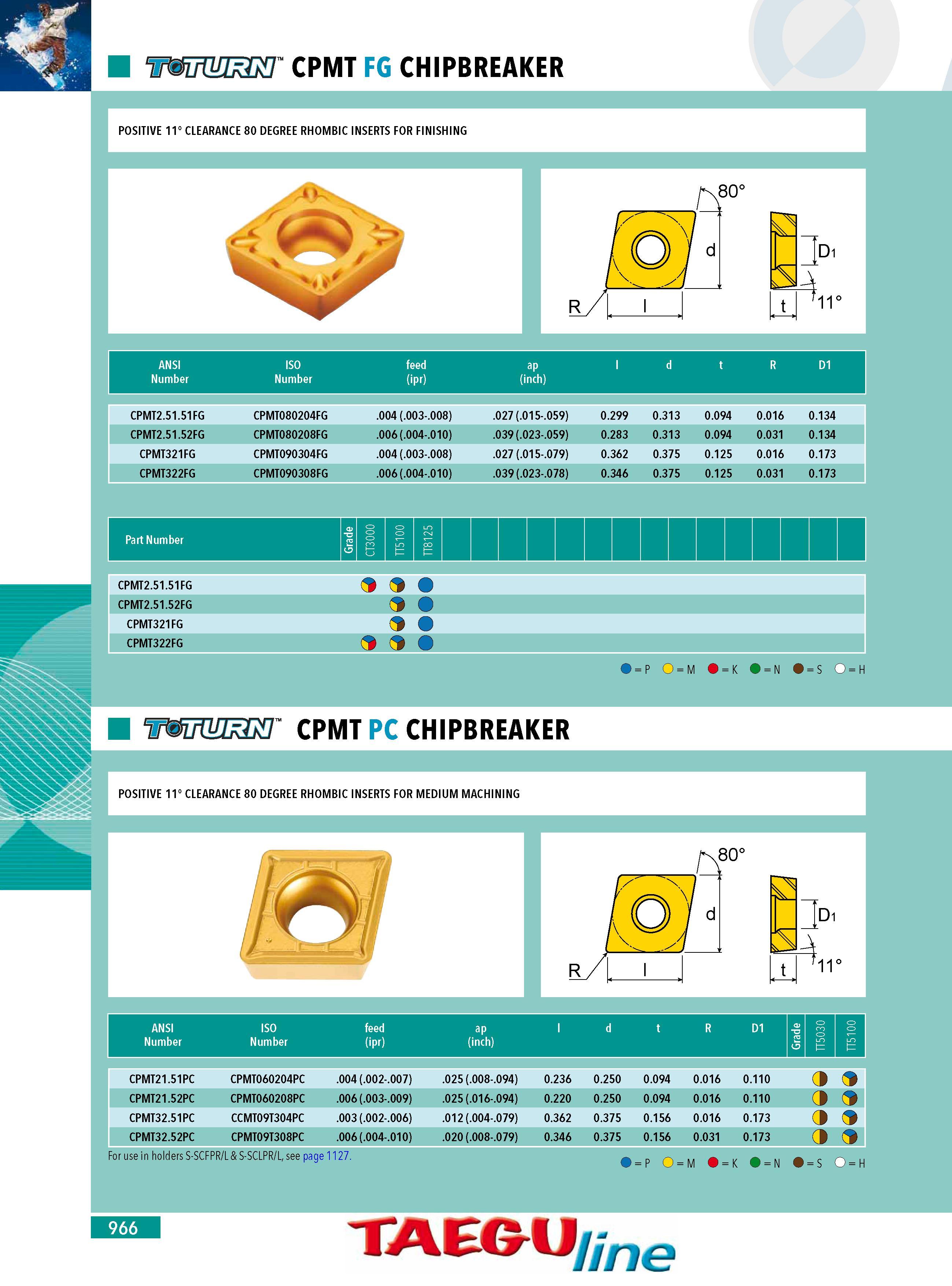

cpmt fg chipbreaker POSITIVE 11 CLEARANCE 80 DEGREE RHOMBIC INSERTS FOR FINISHING 80 Pj i k 4 t Di ANSI ISO feed ap l d t R D1 Number Number (ipr) (inch) CPMT2.51.51FG CPMT080204FG .004 (.003-.008) .027 (.015-.059) 0.299 0.313 0.094 0.016 0.134 CPMT2.51.52FG CPMT080208FG .006 (.004-.010) .039 (.023-.059) 0.283 0.313 0.094 0.031 0.134 CPMT321FG CPMT090304FG .004 (.003-.008) .027 (.015-.079) 0.362 0.375 0.125 0.016 0.173 CPMT322FG CPMT090308FG .006 (.004-.010) .039 (.023-.078) 0.346 0.375 0.125 0.031 0.173 Part Number CPMT2.51.51FG 9 CPMT2.51.52FG CPMT321FG o CPMT322FG 9 O P O M O K O N O S O H WmMBT CPMT PC CHIPBREAKER POSITIVE 11 CLEARANCE 80 DEGREE RHOMBIC INSERTS FOR MEDIUM MACHINING r k t Di ANASNISI ISO fefeded apa l d tt RR D1 Number NNmber (ip(irp)r) (inch) CPMT21.51PC CPMT060204PC .004 (.002-.007) .025 (.008-.094) 0.236 0.250 0.094 0.016 0.110 O 9 CPMT21.52PC CPMT060208PC .006 (.003-.009) .025 (.016-.094) 0.220 0.250 0.094 0.016 0.110 CPMT32.51PC CCMT09T304PC .003 (.002-.006) .012 (.004-.079) 0.362 0.375 0.156 0.016 0.173 O CPMT32.52PC CPMT09T308PC .006 (.004-.010) .020 (.008-.079) 0.346 0.375 0.156 0.031 0.173 O 9 For use in holders S-SCFPR L & S-SCLPR L see page 1127. P o M O K O S O H O o 966 TAEGU line
