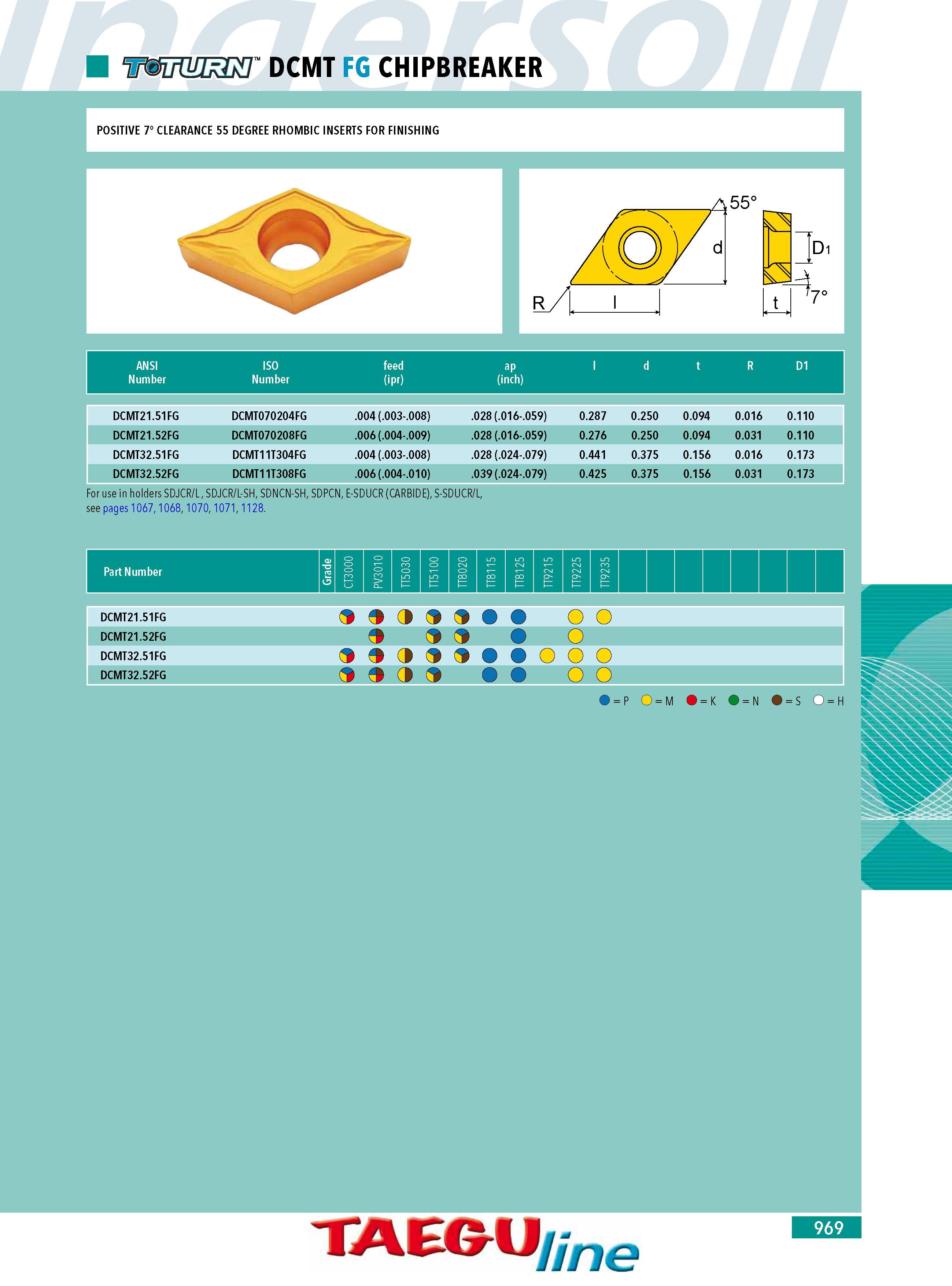

dcmt fg chipbreaker POSITIVE 7 CLEARANCE 55 DEGREE RHOMBIC INSERTS FOR FINISHING ANSI ISO feed ap l d t R D1 Number Number (ipr) (inch) DCMT21.51FG DCMT070204FG .004 (.003-.008) .028 (.016-.059) 0.287 0.250 0.094 0.016 0.110 DCMT21.52FG DCMT070208FG .006 (.004-.009) .028 (.016-.059) 0.276 0.250 0.094 0.031 0.110 DCMT32.51FG DCMT11T304FG .004 (.003-.008) .028 (.024-.079) 0.441 0.375 0.156 0.016 0.173 DCMT32.52FG DCMT11T308FG .006 (.004-.010) .039 (.024-.079) 0.425 0.375 0.156 0.031 0.173 For use in holders SDJCR L SDJCR L-SH SDNCN-SH SDPCN E-SDUCR (CARBIDE) S-SDUCR L see pages 1067 1068 1070 1071 1128. e Part Number 2 Gr 0 0 O TC 0 O CO P TT5030 TT5100 TT8020 TT8115 TT8125 TT9215 TT9225 TT9235 DCMT21.51FG 9 9 9 9 9 DCMT21.52FG 9 O 9 o DCMT32.51FG O 9 9 9 o DCMT32.52FG 9 9 9 9 P O M ) K N O S O H TAEGU line 969
