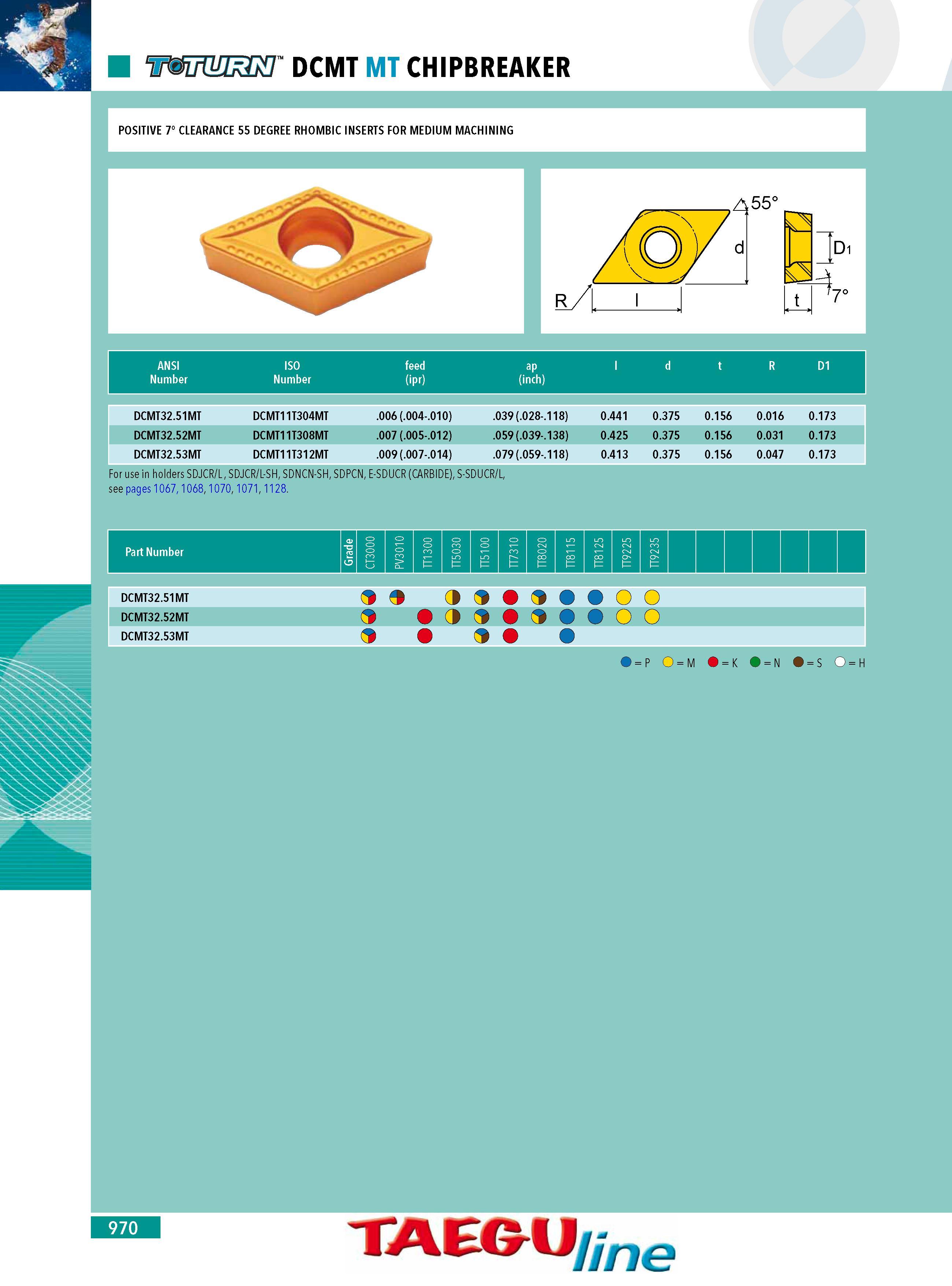

DCMT MT CHIPBREAKER POSITIVE 7 CLEARANCE 55 DEGREE RHOMBIC INSERTS FOR MEDIUM MACHINING ANSI ISO feed ap ld t R D1 Number Number (ipr) (inch) DCMT32.51MT DCMT11T304MT .006 (.004-.010) .039 (.028-.118) 0.441 0.375 0.156 0.016 0.173 DCMT32.52MT DCMT11T308MT .007 (.005-.012) .059 (.039-.138) 0.425 0.375 0.156 0.031 0.173 DCMT32.53MT DCMT11T312MT .009 (.007-.014) .079 (.059-.118) 0.413 0.375 0.156 0.047 0.173 For use in holders SDJCR L SDJCR L-SH SDNCN-SH SDPCN E-SDUCR (CARBIDE) S-SDUCR L see pages 1067 1068 1070 1071 1128. Part Number DCMT32.51MT 9 3 O o DCMT32.52MT O o DCMT32.53MT P O M K O N S O H 970 TAE&U ;ne
