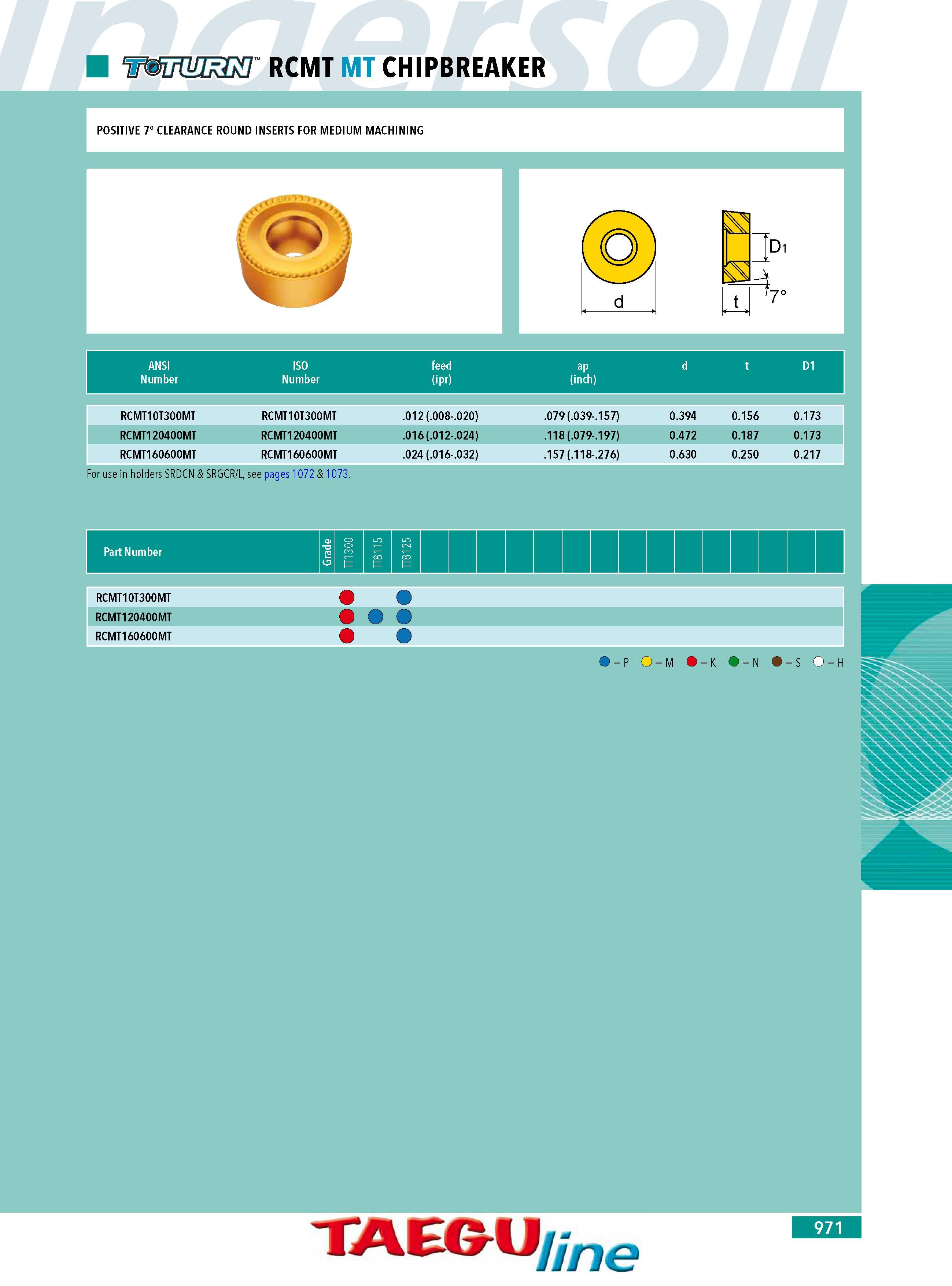

RCMT MT CHIPBREAKER POSITIVE 7 CLEARANCE ROUND INSERTS FOR MEDIUM MACHINING ANSI ISO feed ap d t D1 Number Number (ipr) (inch) RCMT10T300MT RCMT10T300MT .012 (.008-.020) .079 (.039-.157) 0.394 0.156 0.173 RCMT120400MT RCMT120400MT .016 (.012-.024) .118 (.079-.197) 0.472 0.187 0.173 RCMT160600MT RCMT160600MT .024 (.016-.032) .157 (.118-.276) 0.630 0.250 0.217 For use in holders SRDCN & SRGCR L see pages 1072 & 1073. e 0 5 5 Part Number d Gr 0 CO oo 2 oo TT1 TT8 TT8 RCMT10T300MT RCMT120400MT RCMT160600MT P O M K O N S O H TAEMJ ne 971
