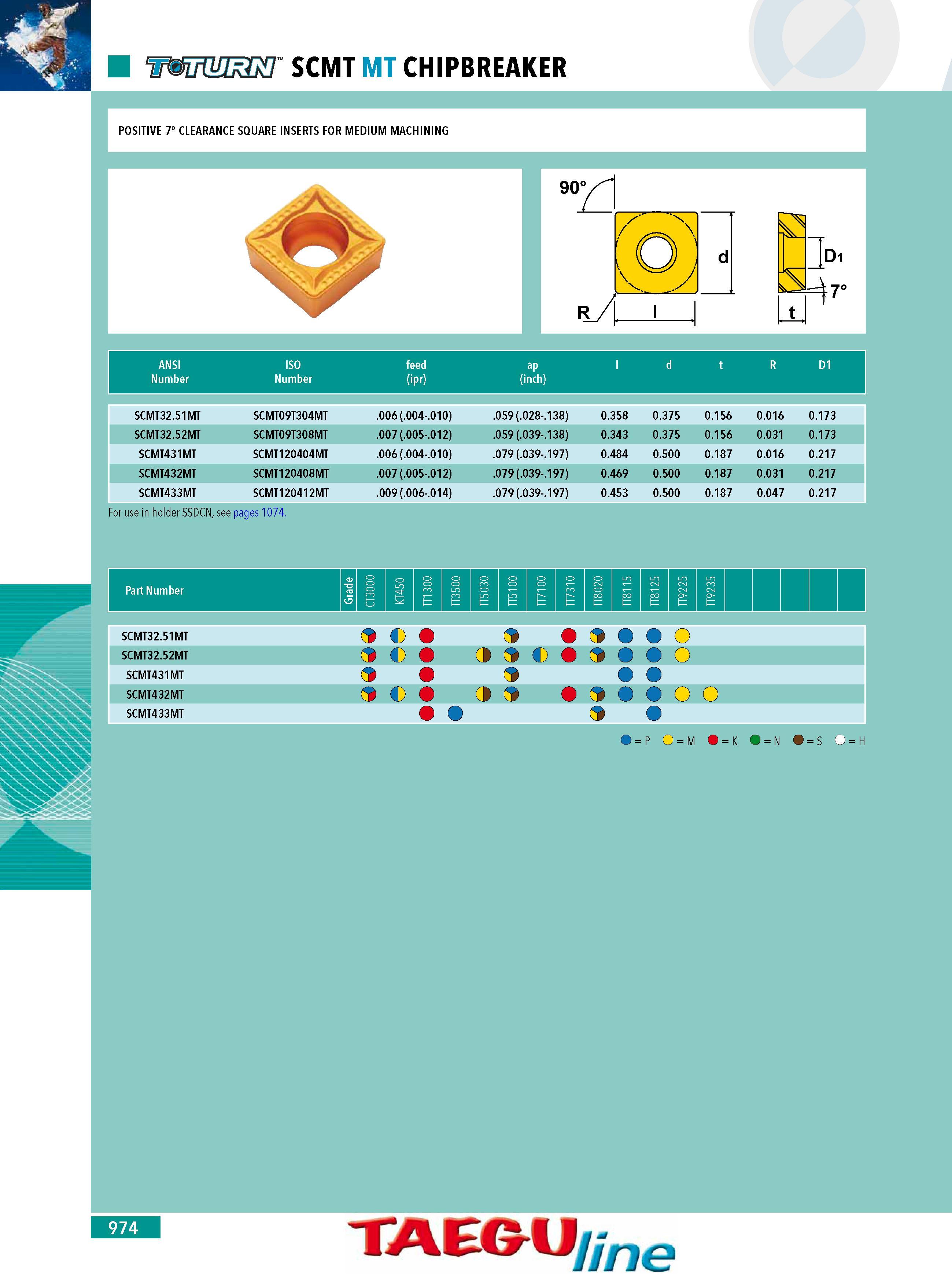

972 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.974

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 974 0972 Lab2u

scmt mt chipbreaker POSITIVE 7 CLEARANCE SQUARE INSERTS FOR MEDIUM MACHINING K3 jDi ANSI ISO feed ap l d t R D1 Number Number (ipr) (inch) SCMT32.51MT SCMT09T304MT .006 (.004-.010) .059 (.028-.138) 0.358 0.375 0.156 0.016 0.173 SCMT32.52MT SCMT09T308MT .007 (.005-.012) .059 (.039-.138) 0.343 0.375 0.156 0.031 0.173 SCMT431MT SCMT120404MT .006 (.004-.010) .079 (.039-.197) 0.484 0.500 0.187 0.016 0.217 SCMT432MT SCMT120408MT .007 (.005-.012) .079 (.039-.197) 0.469 0.500 0.187 0.031 0.217 SCMT433MT SCMT120412MT .009 (.006-.014) .079 (.039-.197) 0.453 0.500 0.187 0.047 0.217 For use in holder SSDCN see pages 1074. Part Number SCMT32.51MT o c 9 9 O SCMT32.52MT c 3 O SCMT431MT SCMT432MT 9 3 SCMT433MT 9 O P O M N S O H K 974 TAEGU line
