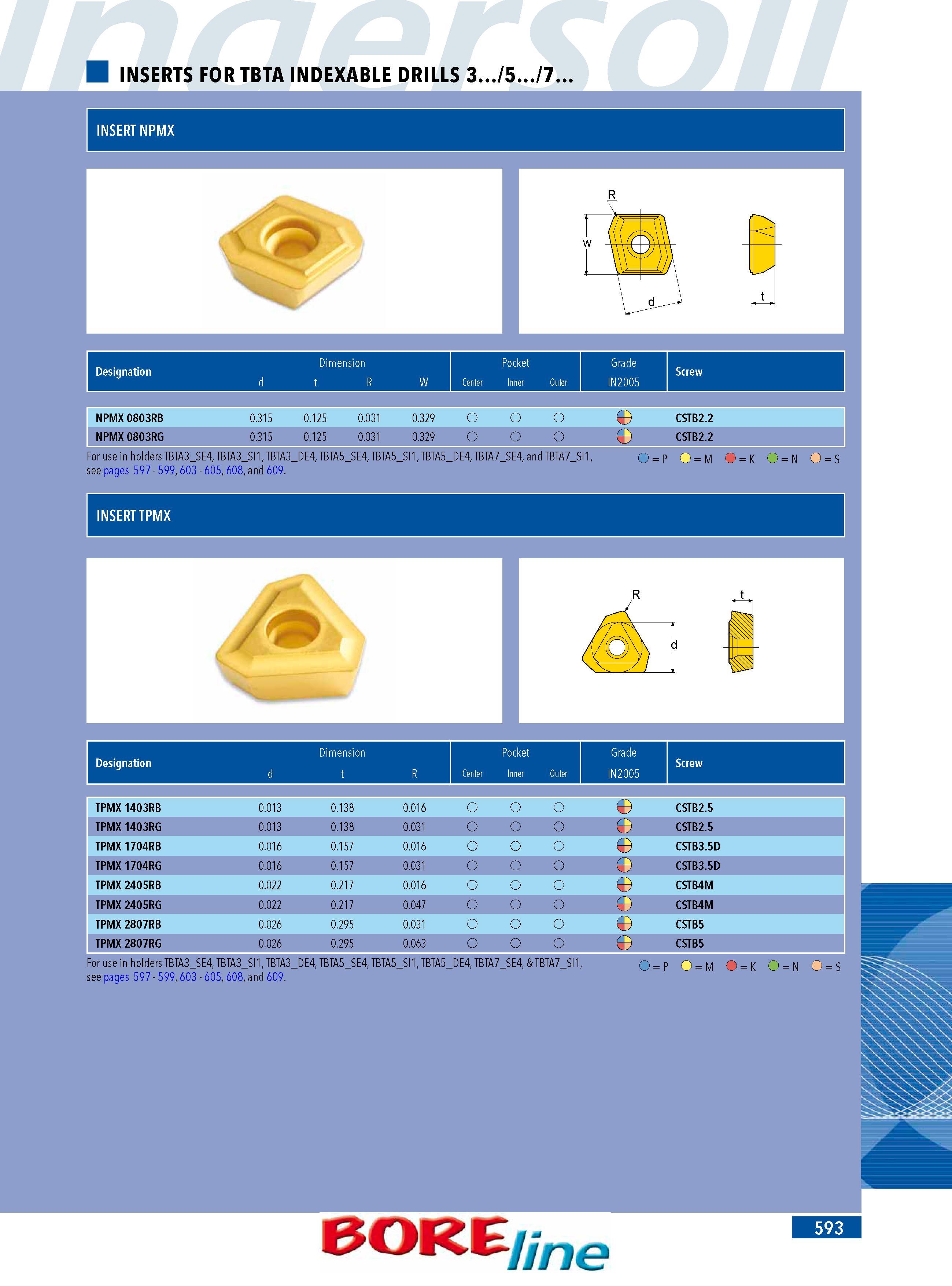

INSERTS FOR TBTA INDEXABLE DRILLS 3... 5... 7.. INSERT NPMX Dimension Pocket Grade Designation Screw d t R W Center Inner Outer IN2005 NPMX 0803RB 0.315 0.125 0.031 0.329 o CSTB2.2 NPMX 0803RG 0.315 0.125 0.031 0.329 O CSTB2.2 For use in holders TBTA3SE4 TBTA3SI1 TBTA3DE4 TBTA5SE4 TBTA5SI1 TBTA5DE4 TBTA7SE4 and TBTA7SI1 O P O M O K O N O S see pages 597 - 599 603 - 605 608 and 609. INSERT TPMX Dimension Pocket Grade Designation Screw d t R Center Inner Outer IN2005 TPMX1403RB 0.013 0.138 0.016 O CSTB2.5 TPMX 1403RG 0.013 0.138 0.031 o CSTB2.5 TPMX 1704RB 0.016 0.157 0.016 o CSTB3.5D TPMX 1704RG 0.016 0.157 0.031 O CSTB3.5D TPMX 2405RB 0.022 0.217 0.016 O CSTB4M TPMX 2405RG 0.022 0.217 0.047 o CSTB4M TPMX 2807RB 0.026 0.295 0.031 o CSTB5 TPMX 2807RG 0.026 0.295 0.063 o CSTB5 For use in holders TBTA3SE4 TBTA3SI1 TBTA3 see pages 597 - 599 603 - 605 608 and 609. 5 TA BT 4 E 1 LO TA BT 4 E D 5 TA BT D m BT A SE4 & TBTA7SI1 o S O Cl o M o P 60KE ne 593
