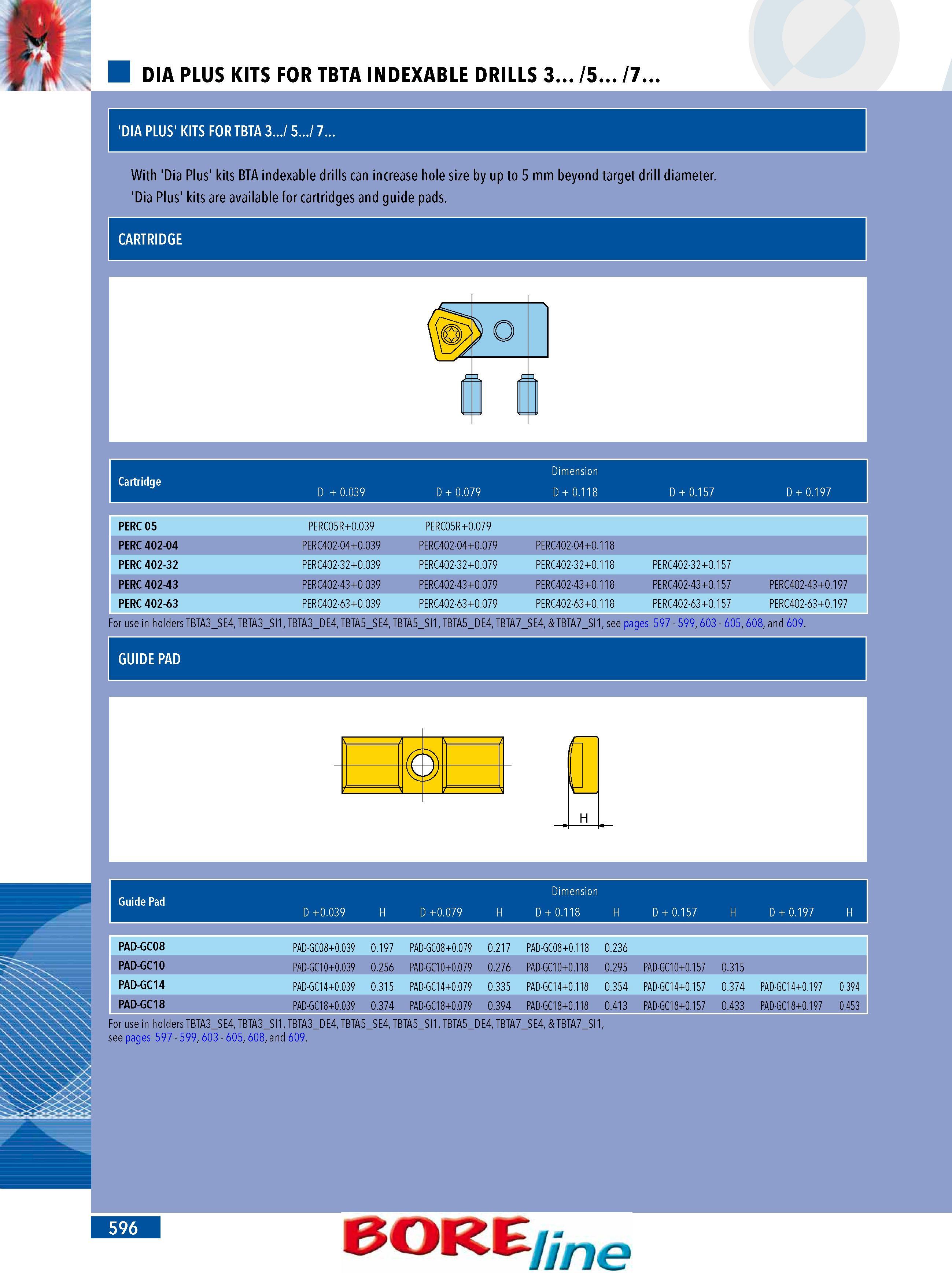

DIA PLUS KITS FOR TBTA INDEXABLE DRILLS 3... 5... 7... 'DIA PLUS' KITS FOR TBTA 3... 5... 7... With 'Dia Plus' kits BTA indexable drills can increase hole size by up to 5 mm beyond target drill diameter. 'Dia Plus' kits are available for cartridges and guide pads. CARTRIDGE Dimension Cartridge D + 0.039 D + 0.079 D + 0.118 D + 0.157 D + 0.197 PERC 05 PERC05R+0.039 PERC05R+0.079 PERC 402-04 PERC402-04+0.039 PERC402-04+0.079 PERC402-04+0.118 PERC 402-32 PERC402-32+0.039 PERC402-32+0.079 PERC402-32+0.118 PERC402-32+0.157 PERC 402-43 PERC402-43+0.039 PERC402-43+0.079 PERC402-43+0.118 PERC402-43+0.157 PERC402-43+0.197 PERC 402-63 PERC402-63+0.039 PERC402-63+0.079 PERC402-63+0.118 PERC402-63+0.157 PERC402-63+0.197 For use in holders TBTA3SE4 TBTA3SI1 TBTA3DE4 TBTA5SE4 TBTA5SI1 TBTA5DE4 TBTA7SE4 & TBTA7SI1 see pages 597 - 599 603 - 605 608 and 609. GUIDE PAD Dimension Guide Pad D +0.039 H D +0.079 H D + 0.118 H D + 0.157 H D + 0.197 PAD-GC08 PAD-GC08+0.039 0.197 PAD-GC08+0.079 0.217 PAD-GC08+0.118 0.236 PAD-GC10 PAD-GC10+0.039 0.256 PAD-GC10+0.079 0.276 PAD-GC10+0.118 0.295 PAD-GC10+0.157 0.315 PAD-GC14 PAD-GC14+0.039 0.315 PAD-GC14+0.079 0.335 PAD-GC14+0.118 0.354 PAD-GC14+0.157 0.374 PAD-GC14+0.197 0.394 PAD-GC18 PAD-GC18+0.039 0.374 PAD-GC18+0.079 0.394 PAD-GC18+0.118 0.413 PAD-GC18+0.157 0.433 PAD-GC18+0.197 0.453 For use in holders TBTA3SE4 TBTA3SI1 TBTA3DE4 TBTA5SE4 TBTA5SI1 TBTA5DE4 TBTA7SE4 & TBTA7SI1 see pages 597 - 599 603 - 605 608 and 609. 596 BORE ne
