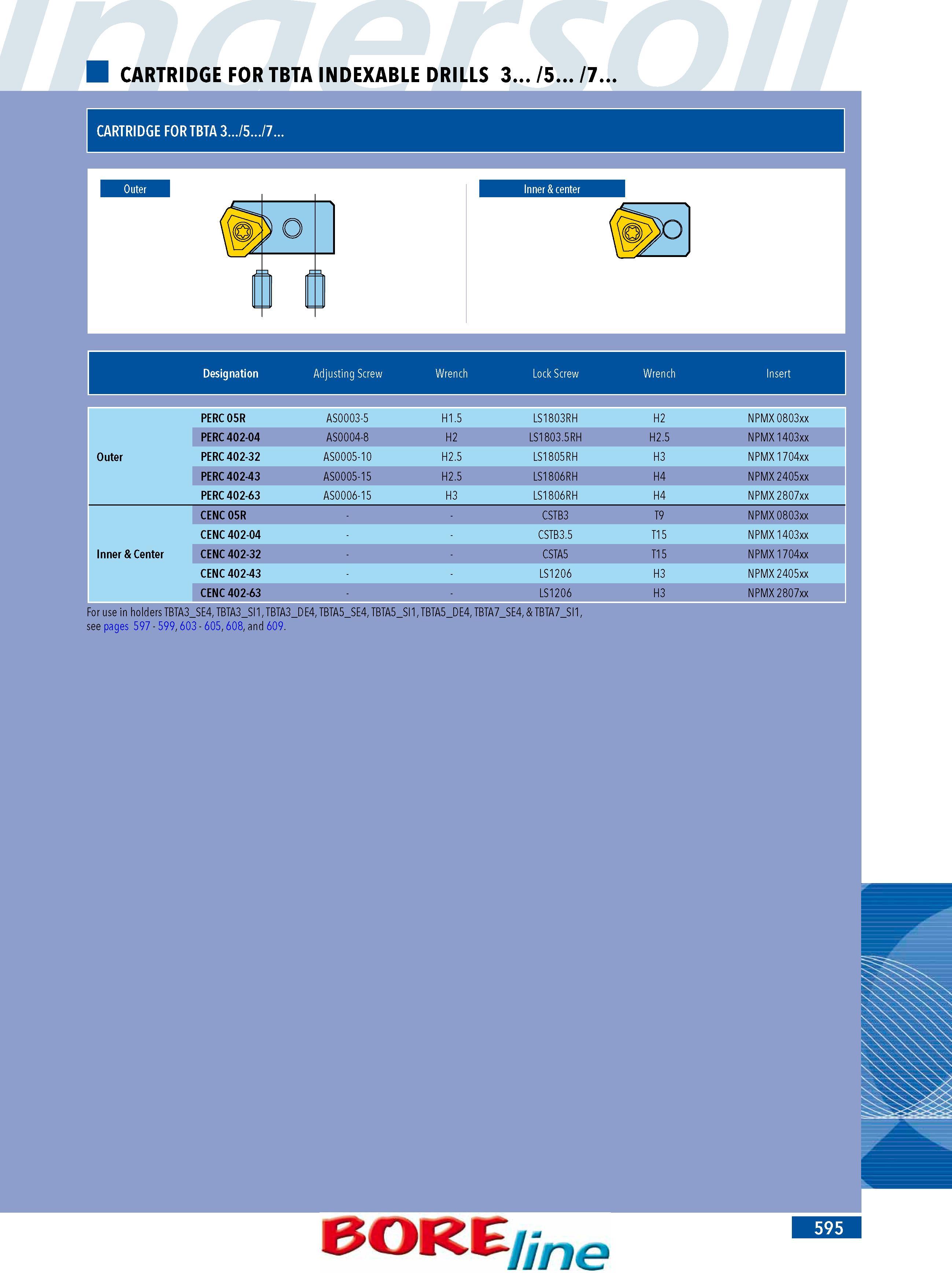

CARTRIDGE FOR TBTA INDEXABLE DRILLS 3... 5... 7. CARTRIDGE FOR TBTA 3... S... 7... Designation Adjusting Screw Wrench Lock Screw Wrench Insert PERC 0SR AS0003-5 H1.5 LS1803RH H2 NPMX 0803xx PERC 402-04 AS0004-8 H2 LS1803.5RH H2.5 NPMX 1403xx Outer PERC 402-32 AS0005-10 H2.5 LS1805RH H3 NPMX 1704xx PERC 402-43 AS0005-15 H2.5 LS1806RH H4 NPMX 2405xx PERC 402-63 AS0006-15 H3 LS1806RH H4 NPMX 2807xx CENC0SR CSTB3 T9 NPMX 0803xx CENC 402-04 CSTB3.5 T15 NPMX 1403xx Inner & Center CENC 402-32 CSTA5 T15 NPMX 1704xx CENC 402-43 LS1206 H3 NPMX 2405xx CENC 402-63 LS1206 H3 NPMX 2807xx For use in holders TBTA3SE4 TBTA3SI1 TBTA3DE4 TBTA5SE4 TBTA5SI1 TBTA5DE4 TBTA7SE4 & TBTA7SI1 see pages 597 - 599 603 - 605 608 and 609. BORE ne S9S
