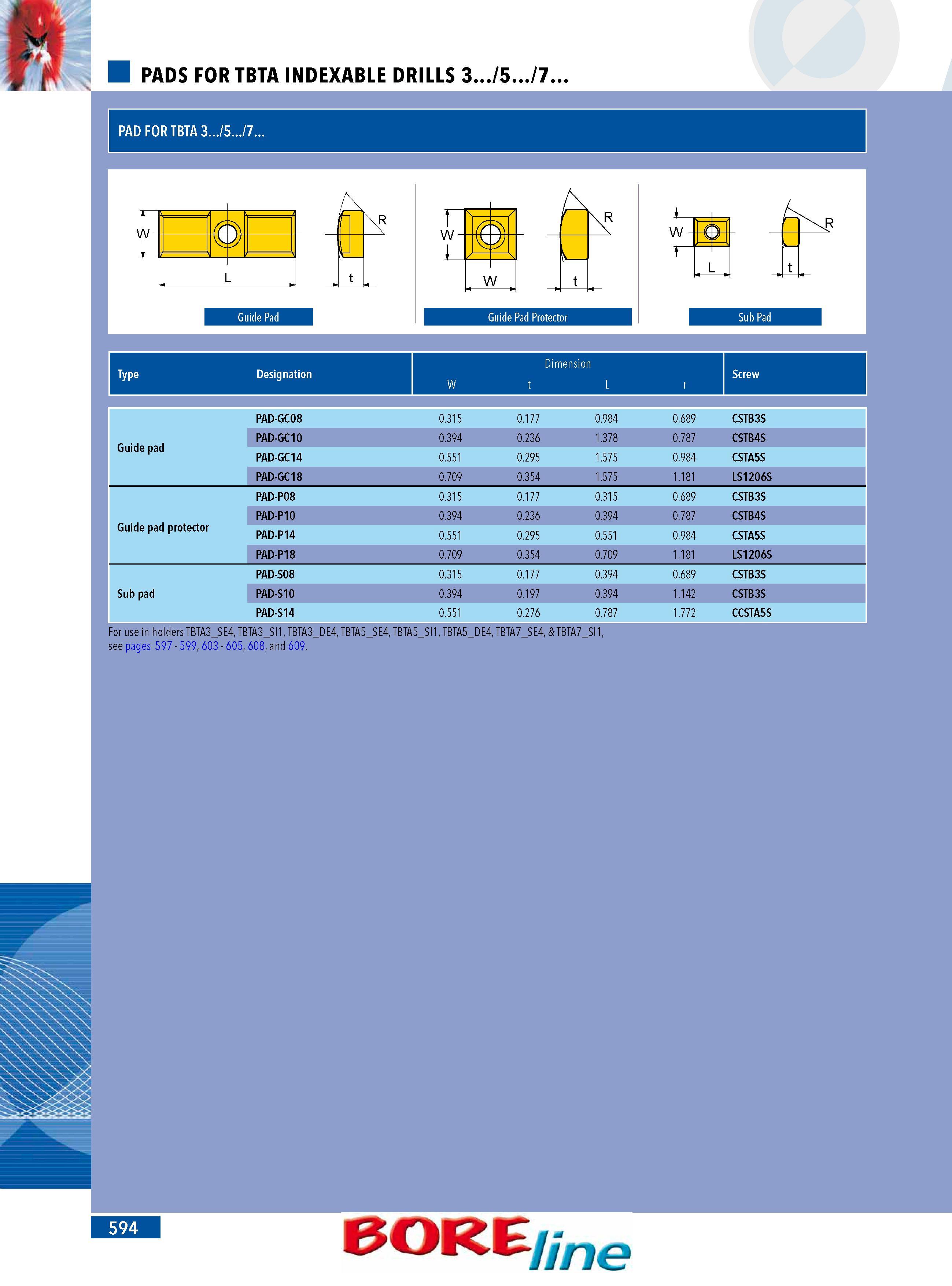

PADS FOR TBTA INDEXABLE DRILLS 3... 5... 7... PAD FOR TBTA 3... S... 7... Dimension Type Designation W t L r PAD-GC08 0.315 0.177 0.984 0.689 CSTB3S Guide pad PAD-GC10 0.394 0.236 1.378 0.787 CSTB4S PAD-GC14 0.551 0.295 1.575 0.984 CSTASS PAD-GC18 0.709 0.354 1.575 1.181 LS1206S PAD-P08 0.315 0.177 0.315 0.689 CSTB3S Guide pad protector PAD-P10 0.394 0.236 0.394 0.787 CSTB4S PAD-P14 0.551 0.295 0.551 0.984 CSTASS PAD-P18 0.709 0.354 0.709 1.181 LS1206S PAD-S08 0.315 0.177 0.394 0.689 CSTB3S Sub pad PAD-S10 0.394 0.197 0.394 1.142 CSTB3S PAD-S14 0.551 0.276 0.787 1.772 CCSTASS For use in holders TBTA3SE4 TBTA3SI1 TBTA3DE4 TBTA5SE4 TBTA5SI1 TBTA5DE4 TBTA7SE4 & TBTA7SI1 see pages 597 - 599 603 - 605 608 and 609. 594 BORE ne
