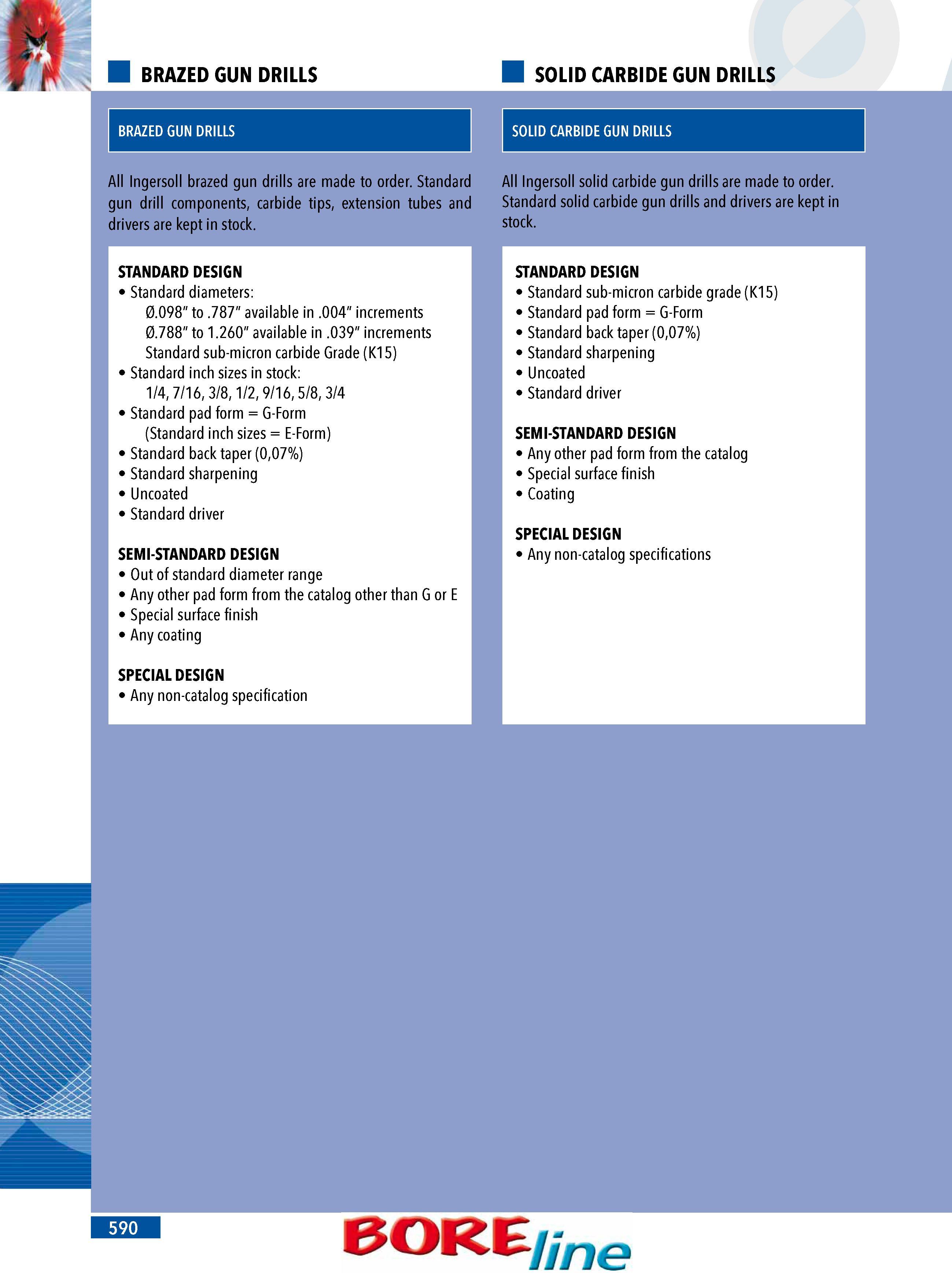

BRAZED GUN DRILLS BRAZED GUN DRILLS SOLID CARBIDE GUN DRILLS SOLID CARBIDE GUN DRILLS All Ingersoll brazed gun drills are made to order. Standard gun drill components carbide tips extension tubes and drivers are kept in stock. All Ingersoll solid carbide gun drills are made to order. Standard solid carbide gun drills and drivers are kept in stock. STANDARD DESIGN Standard diameters: 0.098" to .787" available in .004" increments 0.788" to 1.260 available in .039'' increments Standard sub-micron carbide Grade (K15) Standard inch sizes in stock: 1 4 7 16 3 8 1 2 9 16 5 8 3 4 Standard pad form G-Form (Standard inch sizes E-Form) Standard back taper (007%) Standard sharpening Uncoated Standard driver SEMI-STANDARD DESIGN Out of standard diameter range Any other pad form from the catalog other than G or E Special surface finish Any coating SPECIAL DESIGN Any non-catalog specification STANDARD DESIGN Standard sub-micron carbide grade (K15) Standard pad form G-Form Standard back taper (007%) Standard sharpening Uncoated Standard driver SEMI-STANDARD DESIGN Any other pad form from the catalog Special surface finish Coating SPECIAL DESIGN Any non-catalog specifications 590 60KE ne
