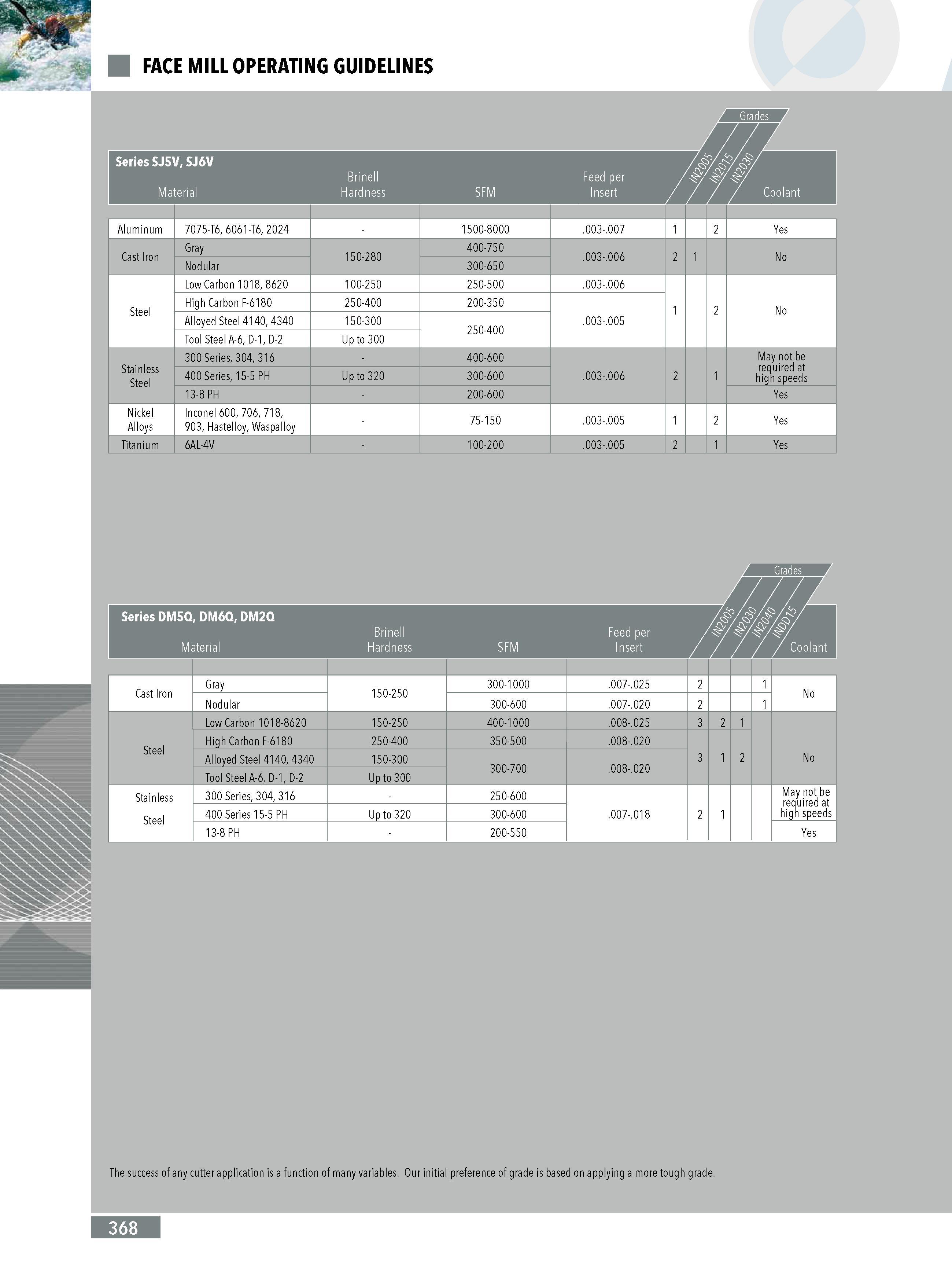

FACE MILL OPERATING GUIDELINES Series SJ5V SJ6V Material Brinell Hardness SFM Feed per Insert V Ww Coolant Aluminum 7075-T6 6061-T6 2024 1500-8000 .003-.007 1 2 Yes Cast Iron Gray 150-280 400-750 .003-.006 2 1 No Nodular 300-650 Steel Low Carbon 1018 8620 100-250 250-500 .003-.006 1 2 No High Carbon F-6180 250-400 200-350 .003- .005 Alloyed Steel 4140 4340 150-300 250-400 Tool Steel A-6 D-1 D-2 Up to 300 Stainless Steel 300 Series 304 316 400-600 .003-.006 2 1 May not be required at high speeds 400 Series 15-5 PH Up to 320 300-600 13-8 PH 200-600 Yes Nickel Alloys Inconel 600 706 718 903 Hastelloy Waspalloy 75-150 .003-.005 1 2 Yes Titanium 6AL-4V 100-200 .003-.005 2 1 Yes Series DM5Q DM6Q DM2Q Material Brinell Hardness SFM Feed per Insert f w Coolant Cast Iron Gray 150-250 300-1000 .007-.025 2 1 No Nodular 300-600 .007-.020 2 1 Steel Low Carbon 1018-8620 150-250 400-1000 .008-.025 3 2 1 No High Carbon F-6180 250-400 350-500 .008-.020 3 1 2 Alloyed Steel 4140 4340 150-300 300-700 .008-.020 Tool Steel A-6 D-1 D-2 Up to 300 Stainless Steel 300 Series 304 316 250-600 .007-.018 2 1 May not be required at high speeds 400 Series 15-5 PH Up to 320 300-600 13-8 PH 200-550 Yes The success of any cutter application is a function of many variables. Our initial preference of grade is based on applying a more tough grade. 368
