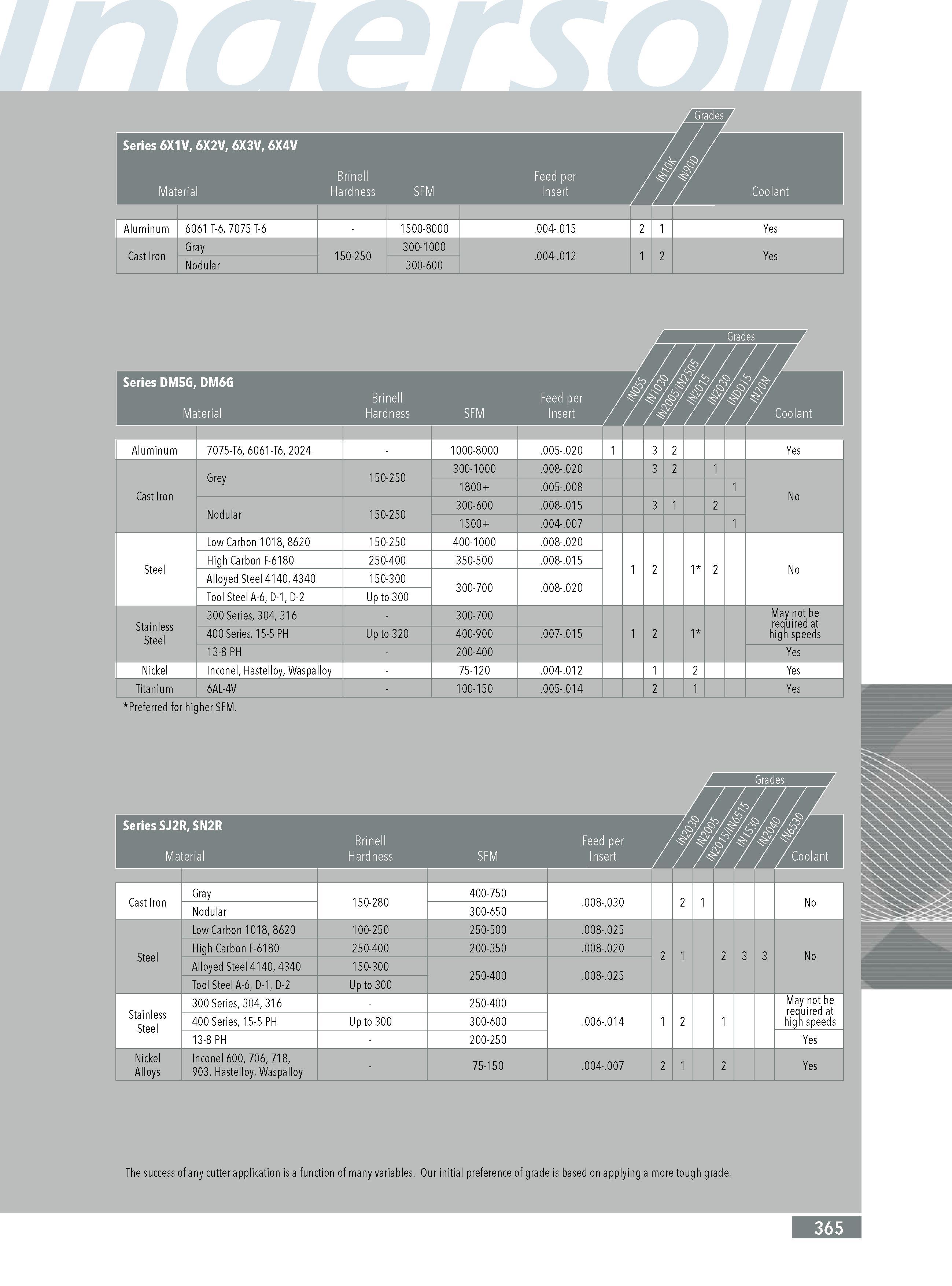

363 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.365

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 365 0363 Lab2u

Grades Series 6X1V 6X2V 6X3V 6X4V Material Brinell Hardness SFM Feed per Insert Coolant Aluminum 6061 T-6 7075 T-6 1500-8000 .004-.015 2 1 Yes Cast Iron Gray 150-250 300-1000 .004-.012 1 2 Yes Nodular 300-600 Series DM5G DM6G Material Hardness Aluminum 7075-T6 6061-T6 2024 1000-8000 .005-.020 1 3 2 Yes Grey 150-250 300-1000 .008-.020 3 2 1 Cast Iron 1800+ .005-.008 1 No Nodular 150-250 300-600 .008-.015 3 1 2 1500+ .004-.007 1 Low Carbon 1018 8620 150-250 400-1000 .008-.020 Steel High Carbon F-6180 250-400 350-500 .008-.015 2 2 No Alloyed Steel 4140 4340 150-300 300-700 .008-.020 1 1 Tool Steel A-6 D-1 D-2 Up to 300 Stainless Steel 300 Series 304 316 300-700 May not be required at 400 Series 15-5 PH Up to 320 400-900 .007-.015 1 2 1 high speeds 13-8 PH 200-400 Yes Nickel Inconel Hastelloy Waspalloy 75-120 .004-.012 1 2 Yes Titanium 6AL-4V 100-150 .005-.014 2 1 Yes Preferred for higher SFM. Series SJ2R SN2R Material Hardness Cast Iron Gray 150-280 400-750 .008-.030 2 No Nodular 300-650 1 Low Carbon 1018 8620 100-250 250-500 .008-.025 Steel High Carbon F-6180 250-400 200-350 .008-.020 2 1 2 3 3 No Alloyed Steel 4140 4340 150-300 250-400 .008-.025 Tool Steel A-6 D-1 D-2 Up to 300 Stainless Steel 300 Series 304 316 250-400 May not be required at high speeds 400 Series 15-5 PH Up to 300 300-600 .006-.014 1 2 1 13-8 PH 200-250 Yes Nickel Alloys Inconel 600 706 718 903 Hastelloy Waspalloy 75-150 .004-.007 2 1 2 Yes The success of any cutter application is a function of many variables. Our initial preference of grade is based on applying a more tough grade. 365
