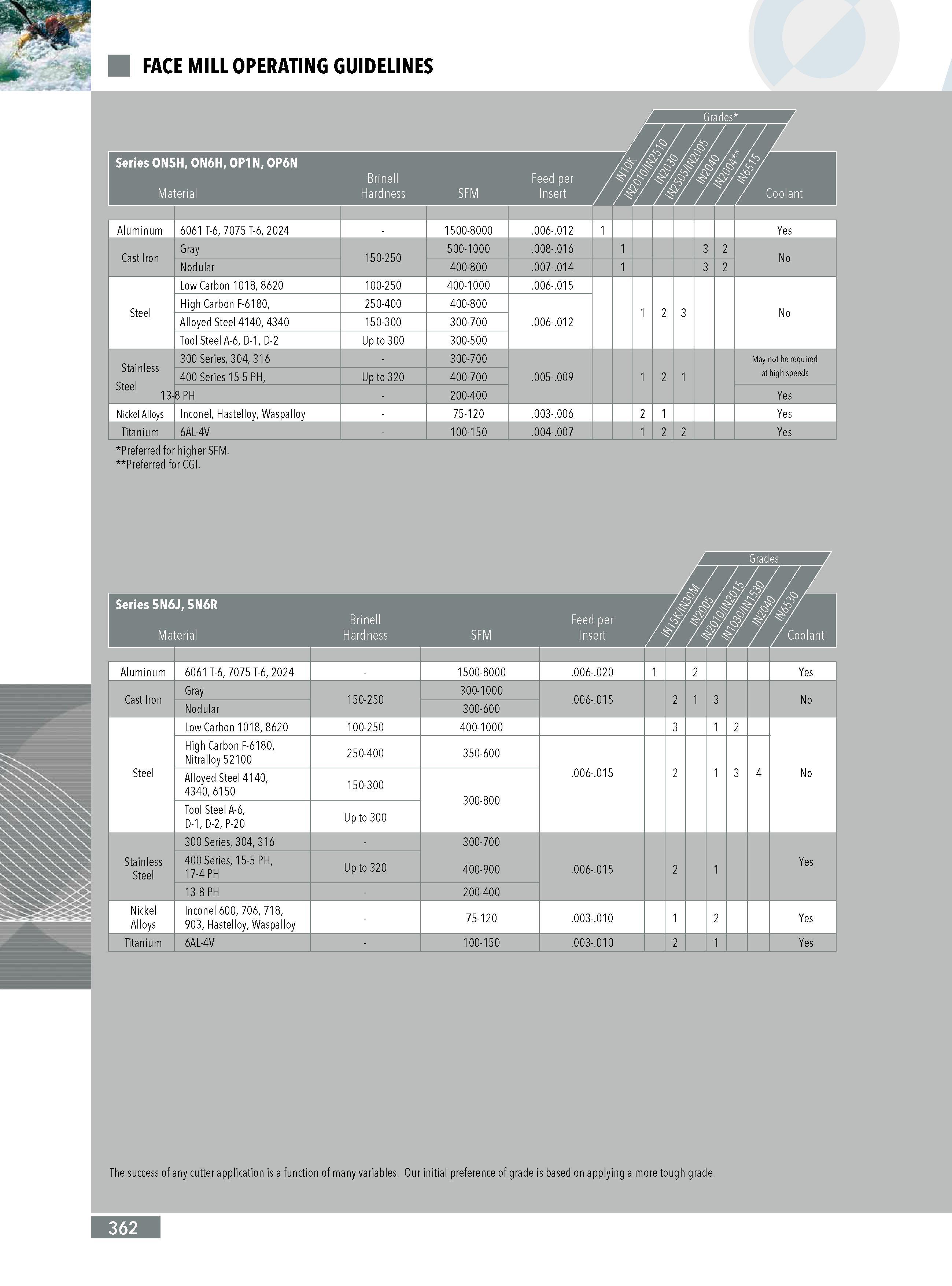

360 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.362

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 362 0360 Lab2u

FACE MILL OPERATING GUIDELINES Series ON5H ON6H OP1N OP6N Material Hardness Aluminum 6061 T-6 7075 T-6 2024 1500-8000 .006-.012 1 Yes Cast Iron Gray 150-250 500-1000 .008-.016 1 3 2 No Nodular 400-800 .007-.014 1 3 2 Low Carbon 1018 8620 100-250 400-1000 .006-.015 Steel High Carbon F-6180 250-400 400-800 2 3 No Alloyed Steel 4140 4340 150-300 300-700 .006-.012 1 Tool Steel A-6 D-1 D-2 Up to 300 300-500 Stainless Steel 13- 300 Series 304 316 300-700 May not be required 400 Series 15-5 PH Up to 320 400-700 .005-.009 1 2 1 at high speeds 8 PH 200-400 Yes Nickel Alloys Inconel Hastelloy Waspalloy 75-120 .003-.006 2 1 Yes Titanium 6AL-4V 100-150 .004-.007 1 2 2 Yes Preferred for higher SFM. Preferred for CGI. Series 5N6J 5N6R Material Brinell Hardness SFM Feed per Insert M 07 f WS0 7JP fff f' Coolant Aluminum 6061 T-6 7075 T-6 2024 1500-8000 .006-.020 1 2 Yes Cast Iron Gray 150-250 300-1000 .006-.015 2 1 1 3 No Nodular 300-600 Low Carbon 1018 8620 100-250 400-1000 3 1 2 High Carbon F-6180 Nitralloy 52100 250-400 350-600 Steel Alloyed Steel 4140 4340 6150 150-300 300-800 .006-.015 2 1 3 4 No Tool Steel A-6 D-1 D-2 P-20 Up to 300 300 Series 304 316 300-700 Stainless Steel 400 Series 15-5 PH 17-4 PH Up to 320 400-900 .006-.015 2 1 Yes 13-8 PH 200-400 Nickel Alloys Inconel 600 706 718 903 Hastelloy Waspalloy 75-120 .003-.010 1 2 Yes Titanium 6AL-4V 100-150 .003-.010 2 1 Yes The success of any cutter application is a function of many variables. Our initial preference of grade is based on applying a more tough grade. 362
