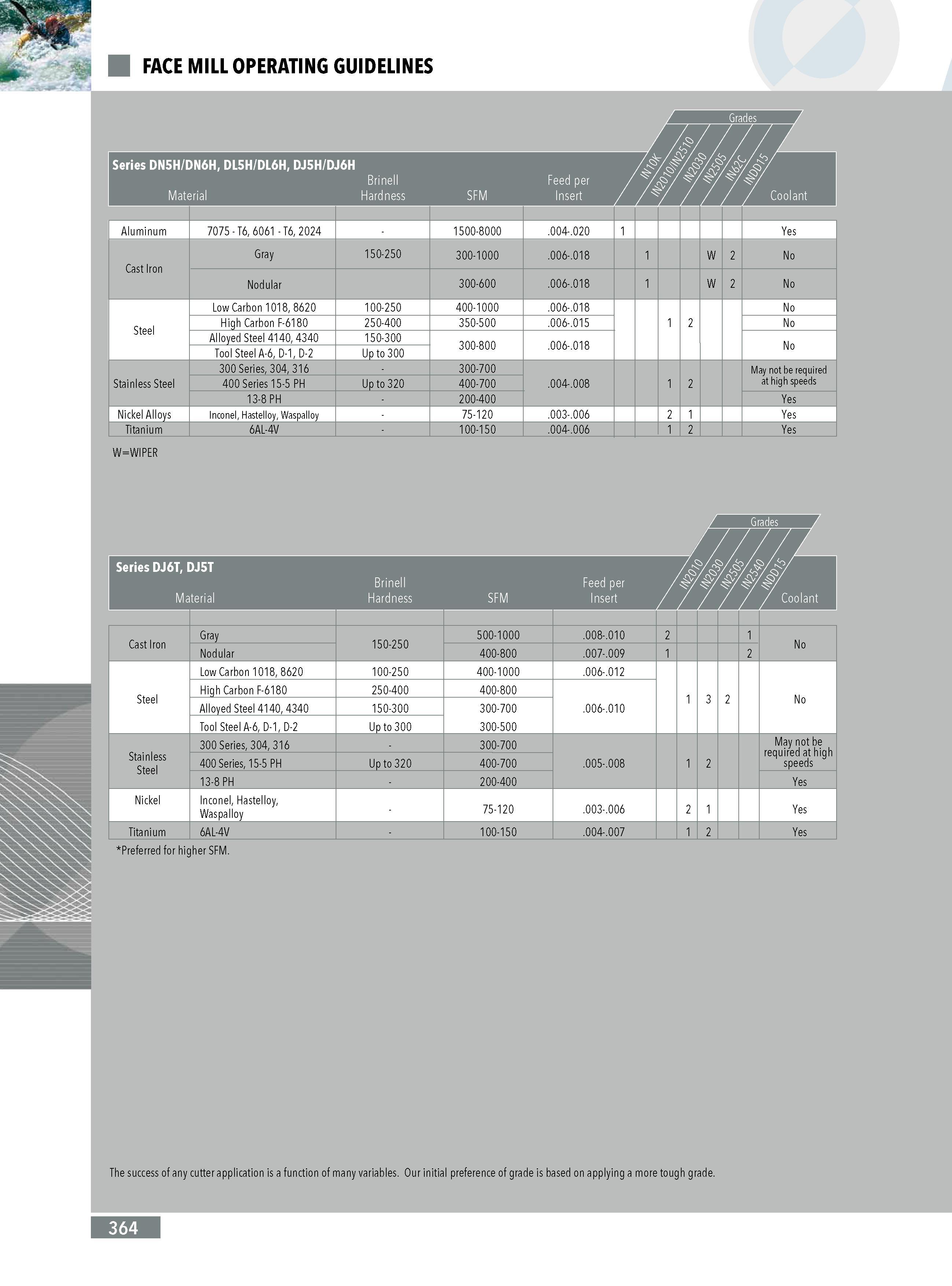

FACE MILL OPERATING GUIDELINES Series DN5H DN6H DL5H DL6H DJ5H DJ6H Material Hardness Aluminum 7075 - T6 6061 - T6 2024 1500-8000 .004-.020 1 Yes Cast Iron Gray 150-250 300-1000 .006-.018 1 W 2 No Nodular 300- 600 .006-.018 1 W 2 No Low Carbon 1018 8620 100-250 400-1000 .006-.018 No Steel High Carbon F-6180 250-400 350-500 .006-.015 1 2 No Alloyed Steel 4140 4340 150-300 300- 800 .006-.018 No Tool Steel A-6 D-1 D-2 Up to 300 300 Series 304 316 300-700 May not be required Stainless Steel 400 Series 15-5 PH Up to 320 400-700 .004-.008 1 2 at high speeds 13-8 PH 200-400 Yes Nickel Alloys Inconel Hastelloy Waspalloy 75-120 .003-.006 2 1 Yes Titanium 6AL-4V 100-150 .004-.006 1 2 Yes WWIPER Preferred for higher SFM. Series DJ6T DJ5T Material Brinell Hardness SFM Feed per Insert 7 t-A 7 Wfw Coolant Cast Iron Gray 150-250 500-1000 .008-.010 2 1 No Nodular 400-800 .007-.009 1 2 Low Carbon 1018 8620 100-250 400-1000 .006-.012 Steel High Carbon F-6180 250-400 400-800 3 2 No Alloyed Steel 4140 4340 150-300 300-700 .006-.010 1 Tool Steel A-6 D-1 D-2 Up to 300 300-500 Stainless Steel 300 Series 304 316 300-700 May not be required at high speeds 400 Series 15-5 PH Up to 320 400-700 .005-.008 1 2 13-8 PH 200-400 Yes Nickel Inconel Hastelloy Waspalloy 75-120 .003-.006 2 1 Yes Titanium 6AL-4V 100-150 .004-.007 1 2 Yes The success of any cutter application is a function of many variables. Our initial preference of grade is based on applying a more tough grade. 364
