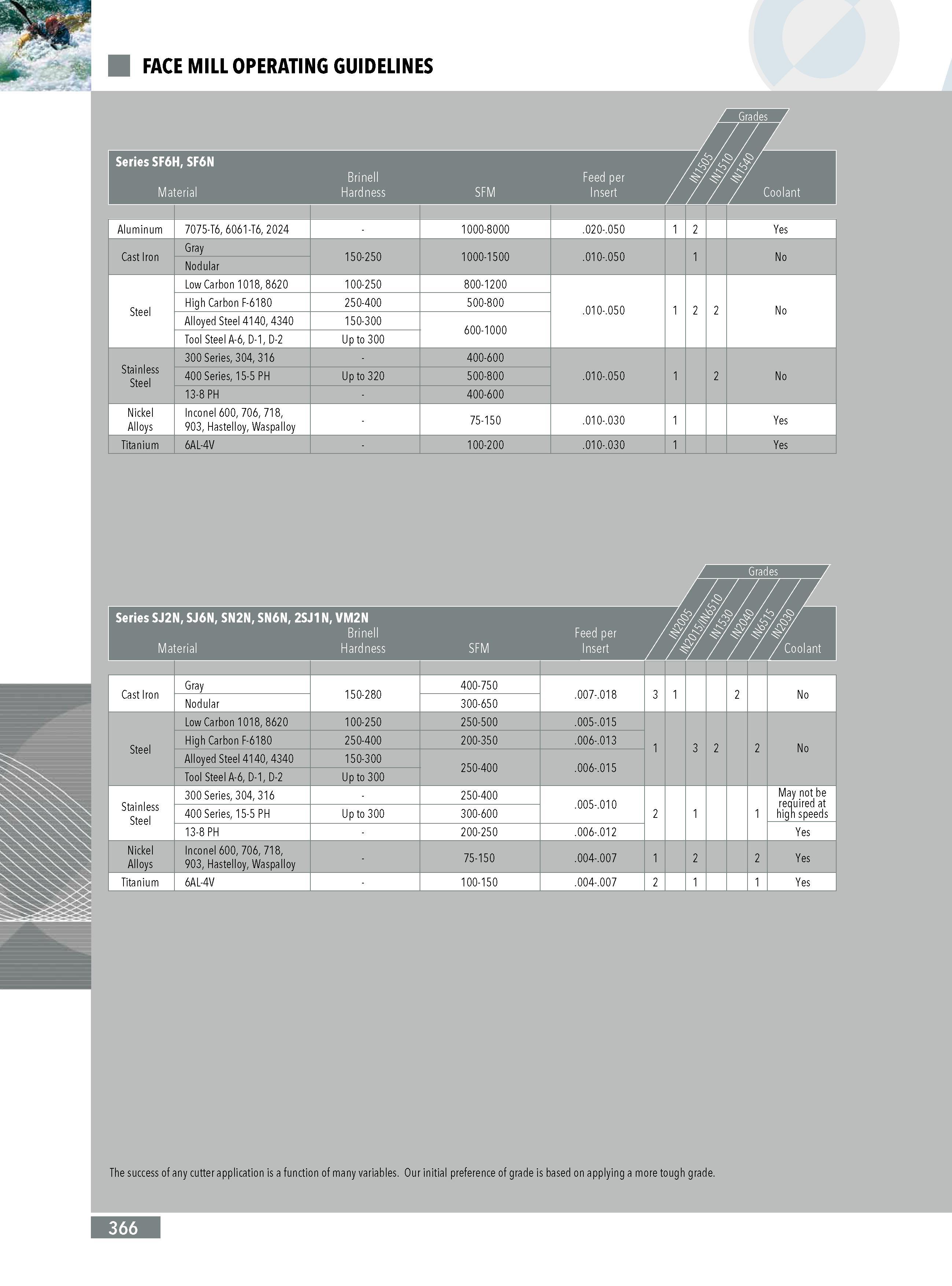

FACE MILL OPERATING GUIDELINES Series SF6H SF6N Material Brinell Hardness SFM Feed per Insert 4 f f W Coolant Aluminum 7075-T6 6061-T6 2024 1000-8000 .020-.050 1 2 Yes Cast Iron Gray 150-250 1000-1500 .010-.050 1 No Nodular Steel Low Carbon 1018 8620 100-250 800-1200 .010-.050 1 2 2 No High Carbon F-6180 250-400 500-800 Alloyed Steel 4140 4340 150-300 600-1000 Tool Steel A-6 D-1 D-2 Up to 300 Stainless Steel 300 Series 304 316 400-600 .010-.050 1 2 No 400 Series 15-5 PH Up to 320 500-800 13-8 PH 400-600 Nickel Alloys Inconel 600 706 718 903 Hastelloy Waspalloy 75-150 .010-.030 1 Yes Titanium 6AL-4V 100-200 .010-.030 1 Yes Series SJ2N SJ6N SN2N SN6N 2SJ1N VM2N Material Hardness Cast Iron Gray 150-280 400-750 .007-.018 3 2 No Nodular 300-650 1 Low Carbon 1018 8620 100-250 250-500 .005-.015 Steel High Carbon F-6180 250-400 200-350 .006-.013 1 3 2 2 No Alloyed Steel 4140 4340 150-300 250-400 .006-.015 Tool Steel A-6 D-1 D-2 Up to 300 Stainless Steel 300 Series 304 316 250-400 .005-.010 May not be required at high speeds 400 Series 15-5 PH Up to 300 300-600 2 1 1 13-8 PH 200-250 .006-.012 Yes Nickel Alloys Inconel 600 706 718 903 Hastelloy Waspalloy 75-150 .004-.007 1 2 2 Yes Titanium 6AL-4V 100-150 .004-.007 2 1 1 Yes The success of any cutter application is a function of many variables. Our initial preference of grade is based on applying a more tough grade. 366
