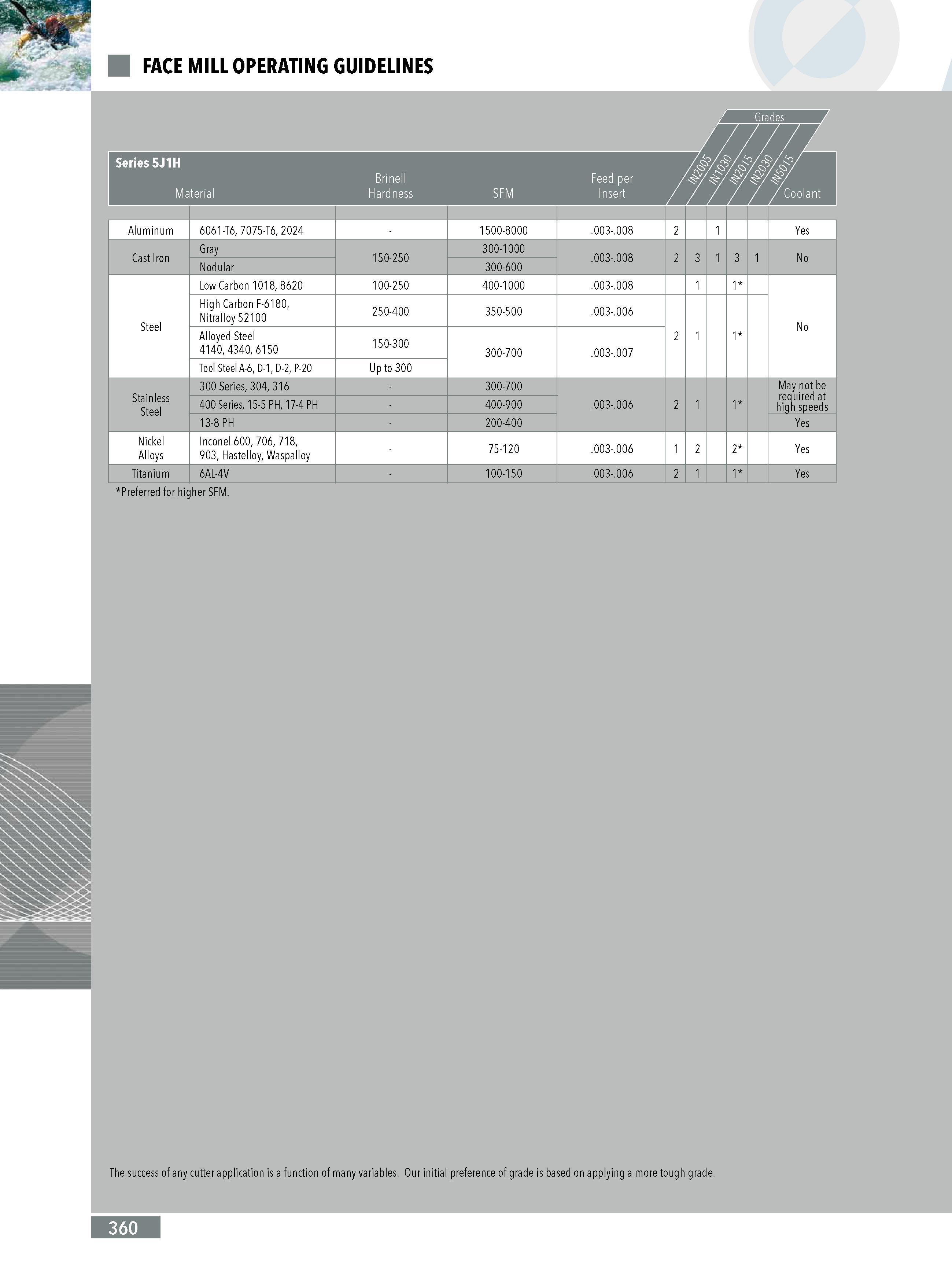

FACE MILL OPERATING GUIDELINES Series 5J1H Material Brinell Hardness SFM Feed per Insert & VV Coolant Aluminum 6061-T6 7075-T6 2024 1500-8000 .003-.008 2 1 Yes Cast Iron Gray 150-250 300-1000 .003-.008 2 3 3 No Nodular 300-600 1 1 Low Carbon 1018 8620 100-250 400-1000 .003-.008 1 1 Steel High Carbon F-6180 Nitralloy 52100 250-400 350- 500 .003-.006 No Alloyed Steel 4140 4340 6150 150-300 300-700 .003-.007 2 1 1 Tool Steel A-6 D-1 D-2 P-20 Up to 300 Stainless Steel 300 Series 304 316 300-700 May not be required at high speeds 400 Series 15-5 PH 17-4 PH 400-900 .003-.006 2 1 1 13-8 PH 200-400 Yes Nickel Alloys Inconel 600 706 718 903 Hastelloy Waspalloy 75-120 .003-.006 1 2 2 Yes Titanium 6AL-4V 100-150 .003-.006 2 1 1 Yes Preferred for higher SFM. The success of any cutter application is a function of many variables. Our initial preference of grade is based on applying a more tough grade. 360
