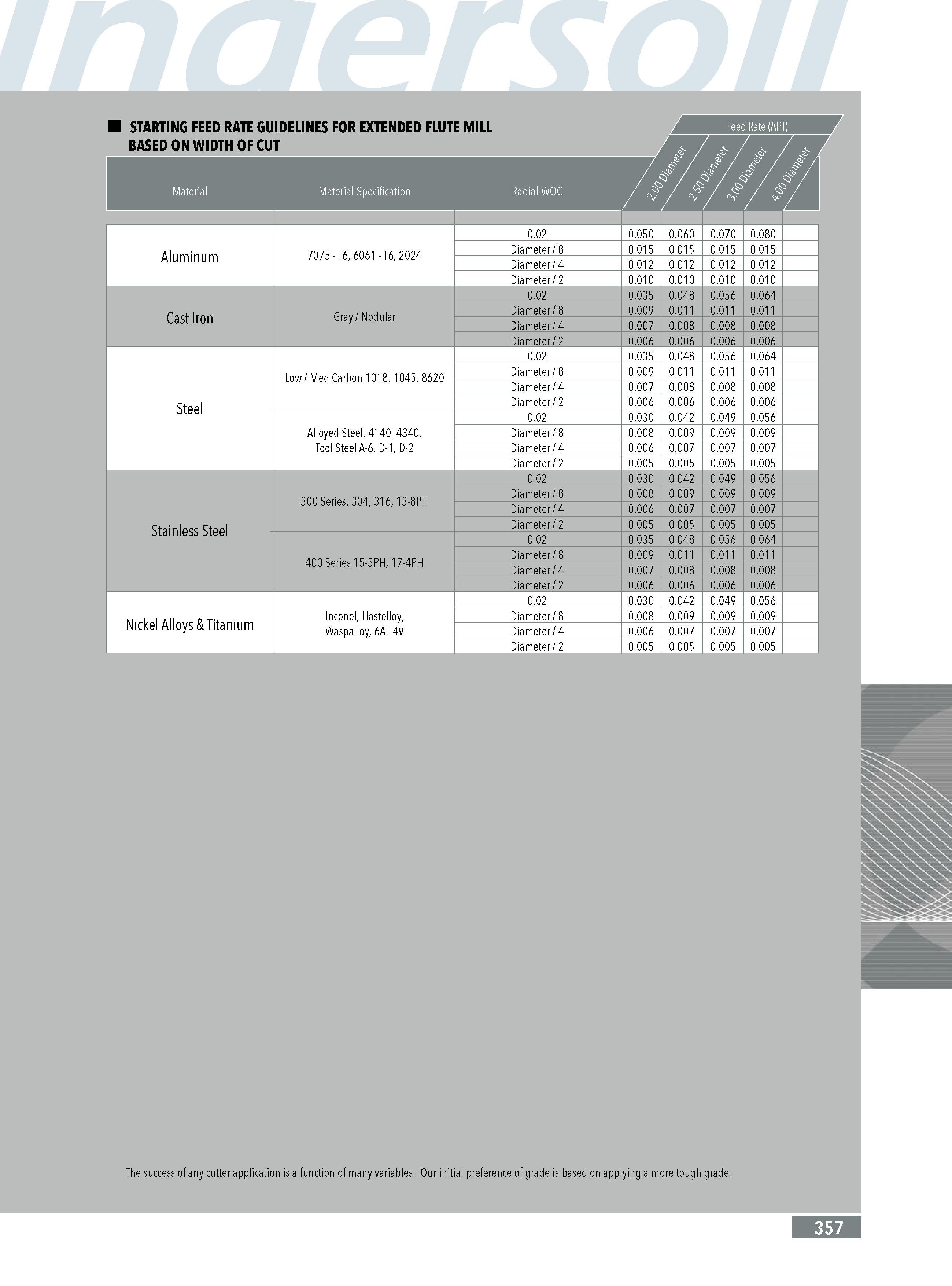

355 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.357

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 357 0355 Lab2u

Aluminum 7075 - T6 6061 - T6 2024 0.02 0.050 0.060 0.070 0.080 Diameter 8 0.015 0.015 0.015 0.015 Diameter 4 0.012 0.012 0.012 0.012 Diameter 2 0.010 0.010 0.010 0.010 Cast Iron Gray Nodular 0.02 0.035 0.048 0.056 0.064 Diameter 8 0.009 0.011 0.011 0.011 Diameter 4 0.007 0.008 0.008 0.008 Diameter 2 0.006 0.006 0.006 0.006 Low Med Carbon 1018 1045 8620 0.02 0.035 0.048 0.056 0.064 Diameter 8 0.009 0.011 0.011 0.011 Diameter 4 0.007 0.008 0.008 0.008 Diameter 2 0.006 0.006 0.006 0.006 Alloyed Steel 4140 4340 Tool Steel A-6 D-1 D-2 0.02 0.030 0.042 0.049 0.056 Diameter 8 0.008 0.009 0.009 0.009 Diameter 4 0.006 0.007 0.007 0.007 Diameter 2 0.005 0.005 0.005 0.005 300 Series 304 316 13-8PH 0.02 0.030 0.042 0.049 0.056 Diameter 8 0.008 0.009 0.009 0.009 Diameter 4 0.006 0.007 0.007 0.007 Diameter 2 0.005 0.005 0.005 0.005 Stainless Steel 400 Series 15-5PH 17-4PH 0.02 0.035 0.048 0.056 0.064 Diameter 8 0.009 0.011 0.011 0.011 Diameter 4 0.007 0.008 0.008 0.008 Diameter 2 0.006 0.006 0.006 0.006 Nickel Alloys & Titanium Inconel Hastelloy Waspalloy 6AL-4V 0.02 0.030 0.042 0.049 0.056 Diameter 8 0.008 0.009 0.009 0.009 Diameter 4 0.006 0.007 0.007 0.007 Diameter 2 0.005 0.005 0.005 0.005 The success of any cutter application is a function of many variables. Our initial preference of grade is based on applying a more tough grade. 357
