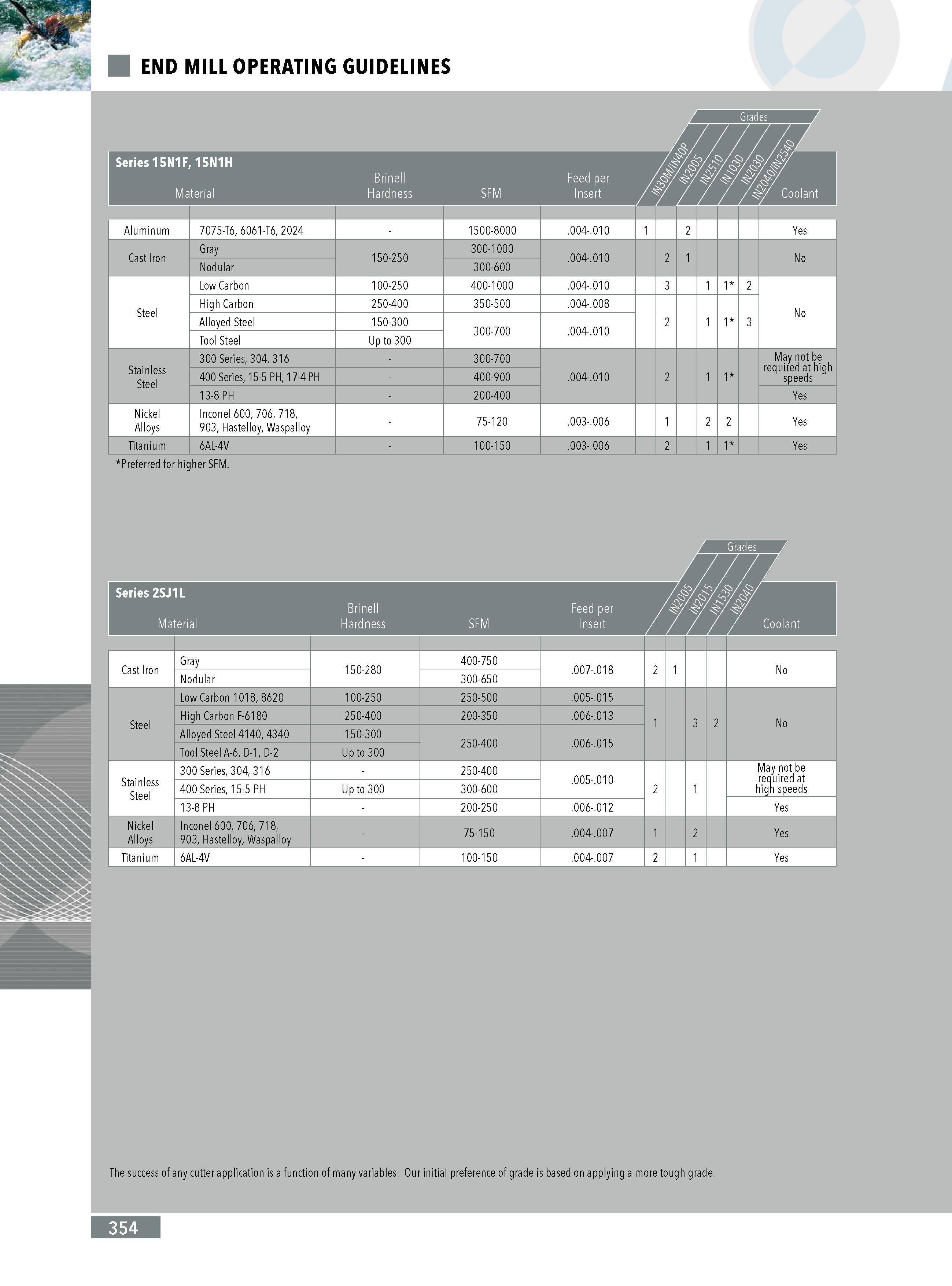

END MILL OPERATING GUIDELINES Aluminum 7075-T6 6061-T6 2024 1500-8000 .004-.010 1 2 Yes Cast Iron Gray 150-250 300-1000 .004-.010 2 1 No Nodular 300-600 Low Carbon 100-250 400-1000 .004-.010 3 1 1 2 Steel High Carbon 250-400 350-500 .004-.008 No Alloyed Steel 150-300 300-700 .004- .010 2 1 1 3 Tool Steel Up to 300 Stainless Steel 300 Series 304 316 300-700 May not be required at high speeds 400 Series 15-5 PH 17-4 PH 400-900 .004-.010 2 1 1 13-8 PH 200-400 Yes Nickel Alloys Inconel 600 706 718 903 Hastelloy Waspalloy 75-120 .003-.006 1 2 2 Yes Titanium 6AL-4V 100-150 .003-.006 2 1 1 Yes Preferred for higher SFM. Series 2SJ1L Material Brinell Hardness SFM Feed per Insert f 7 w Coolant Cast Iron Gray 150-280 400-750 .007-.018 2 1 No Nodular 300-650 Steel Low Carbon 1018 8620 100-250 250-500 .005-.015 1 3 2 No High Carbon F-6180 250-400 200-350 .006-.013 Alloyed Steel 4140 4340 150-300 250-400 .006-.015 Tool Steel A-6 D-1 D-2 Up to 300 Stainless Steel 300 Series 304 316 250-400 .005-.010 2 1 May not be required at high speeds 400 Series 15-5 PH Up to 300 300-600 13-8 PH 200-250 .006-.012 Yes Nickel Alloys Inconel 600 706 718 903 Hastelloy Waspalloy 75-150 .004-.007 1 2 Yes Titanium 6AL-4V 100-150 .004-.007 2 1 Yes The success of any cutter application is a function of many variables. Our initial preference of grade is based on applying a more tough grade. 354
