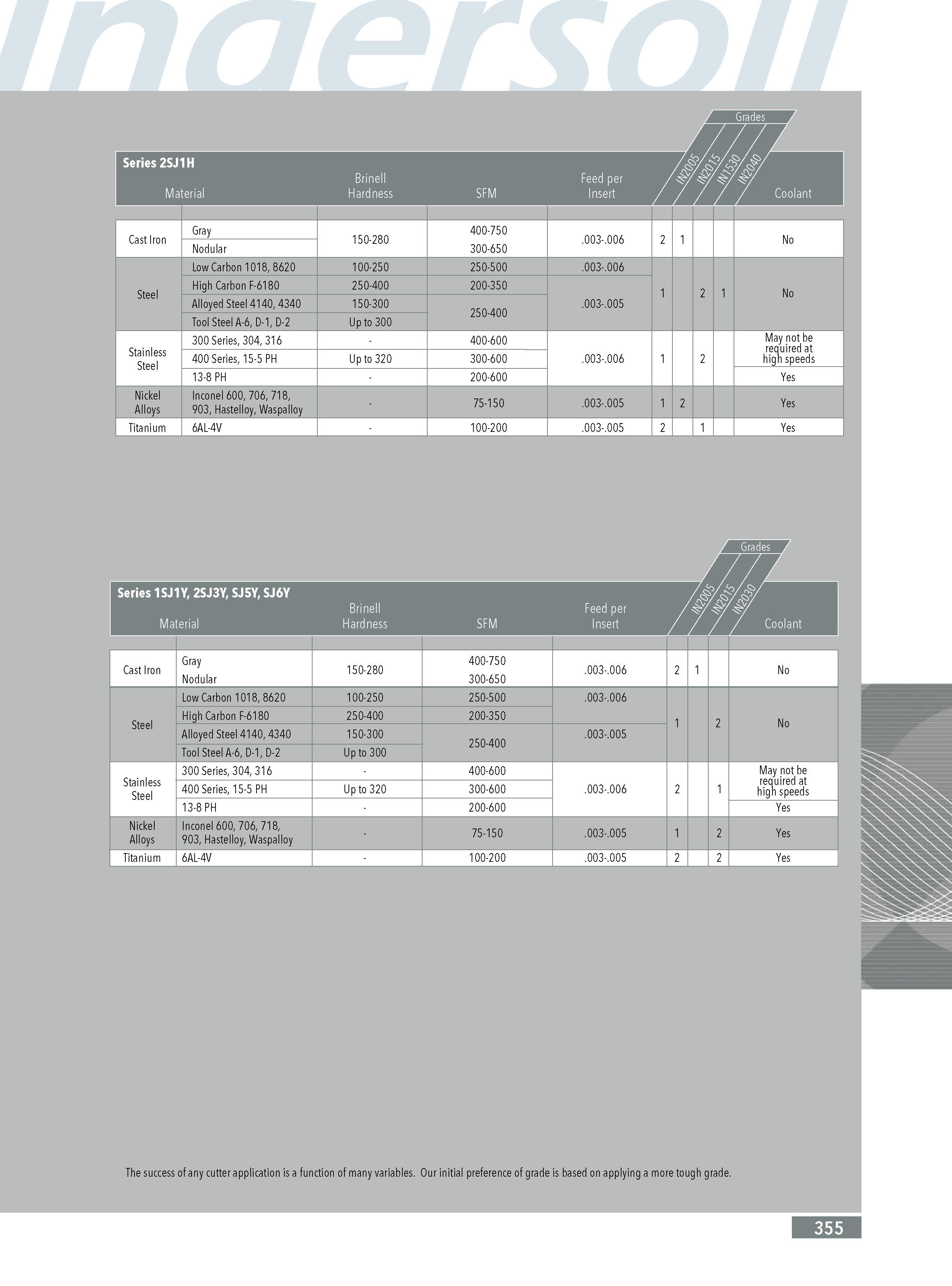

353 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.355

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 355 0353 Lab2u

W Series 2SJ1H Material Brinell Hardness SFM Feed per Insert f 7 7 w Coolant Cast Iron Gray 150-280 400-750 300-650 .003-.006 2 1 No Nodular Steel Low Carbon 1018 8620 100-250 250-500 .003-.006 1 2 1 No High Carbon F-6180 250-400 200-350 .003-.005 Alloyed Steel 4140 4340 150-300 250-400 Tool Steel A-6 D-1 D-2 Up to 300 Stainless Steel 300 Series 304 316 400-600 .003-.006 1 2 May not be required at high speeds 400 Series 15-5 PH Up to 320 300-600 13-8 PH 200-600 Yes Nickel Alloys Inconel 600 706 718 903 Hastelloy Waspalloy 75-150 .003-.005 1 2 Yes Titanium 6AL-4V 100-200 .003-.005 2 1 Yes Series 1SJ1Y 2SJ3Y SJ5Y SJ6Y Material Brinell Hardness SFM Feed per Insert 7 w Coolant Cast Iron Gray Nodular 150-280 400-750 300-650 .003-.006 2 1 No Low Carbon 1018 8620 100-250 250-500 .003-.006 Steel High Carbon F-6180 250-400 200-350 1 1 2 No Alloyed Steel 4140 4340 150-300 250-400 .003- .005 Tool Steel A-6 D-1 D-2 Up to 300 Stainless Steel 300 Series 304 316 400-600 May not be required at high speeds 400 Series 15-5 PH Up to 320 300-600 .003-.006 2 1 13-8 PH 200-600 Yes Nickel Alloys Inconel 600 706 718 903 Hastelloy Waspalloy 75-150 .003-.005 1 2 Yes Titanium 6AL-4V 100-200 .003-.005 2 2 Yes The success of any cutter application is a function of many variables. Our initial preference of grade is based on applying a more tough grade. 355
