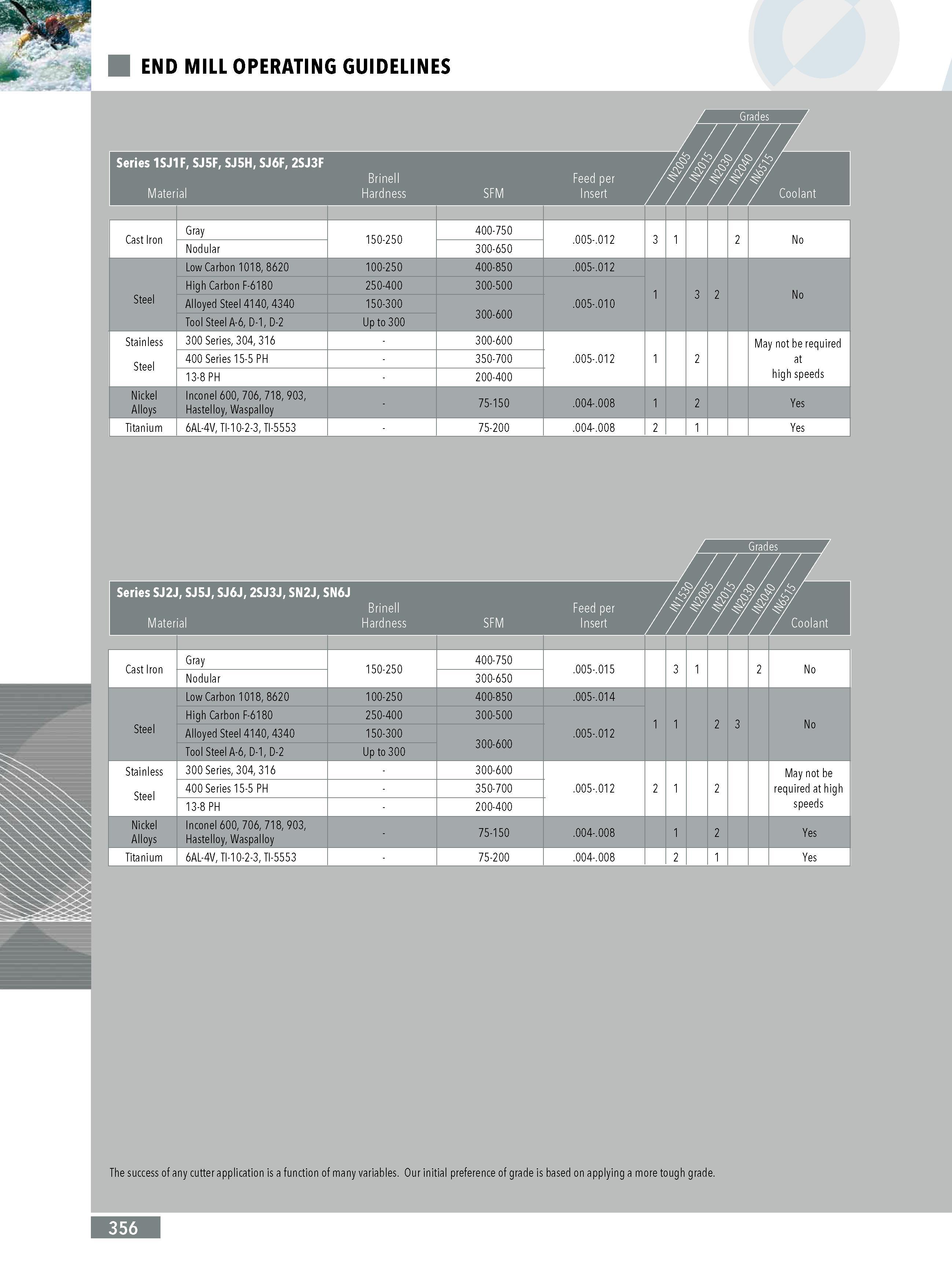

END MILL OPERATING GUIDELINES Series 1SJ1F SJ5F SJ5H SJ6F 2SJ3F Material Brinell Hardness Feed per Insert WwmW Cast Iron Gray 150-250 400-750 .005-.012 3 1 2 No Nodular 300-650 Low Carbon 1018 8620 100-250 400-850 .005-.012 High Carbon F-6180 250-400 300-500 3 2 No Steel Alloyed Steel 4140 4340 150-300 300-600 .005-.010 1 Tool Steel A-6 D-1 D-2 Up to 300 Stainless 300 Series 304 316 300-600 May not be required Steel 400 Series 15-5 PH 350-700 .005-.012 1 2 at 13-8 PH 200-400 high speeds Nickel Alloys Inconel 600 706 718 903 Hastelloy Waspalloy 75-150 .004-.008 1 2 Yes Titanium 6AL-4V TI-10-2-3 TI-5553 75-200 .004-.008 2 1 Yes Series SJ2J SJ5J SJ6J 2SJ3J SN2J SN6J Material Brinell Hardness Feed per Insert WWW Cast Iron Gray 150-250 400-750 .005-.015 3 1 2 No Nodular 300-650 Low Carbon 1018 8620 100-250 400-850 .005-.014 High Carbon F-6180 250-400 300-500 2 3 No Steel Alloyed Steel 4140 4340 150-300 300-600 .005-.012 1 1 Tool Steel A-6 D-1 D-2 Up to 300 Stainless 300 Series 304 316 300-600 May not be Steel 400 Series 15-5 PH 350-700 .005-.012 2 1 2 required at high 13-8 PH 200-400 speeds Nickel Alloys Inconel 600 706 718 903 Hastelloy Waspalloy 75-150 .004-.008 1 2 Yes Titanium 6AL-4V TI-10-2-3 TI-5553 75-200 .004-.008 2 1 Yes Coolant SFM Coolant SFM The success of any cutter application is a function of many variables. Our initial preference of grade is based on applying a more tough grade. 356
