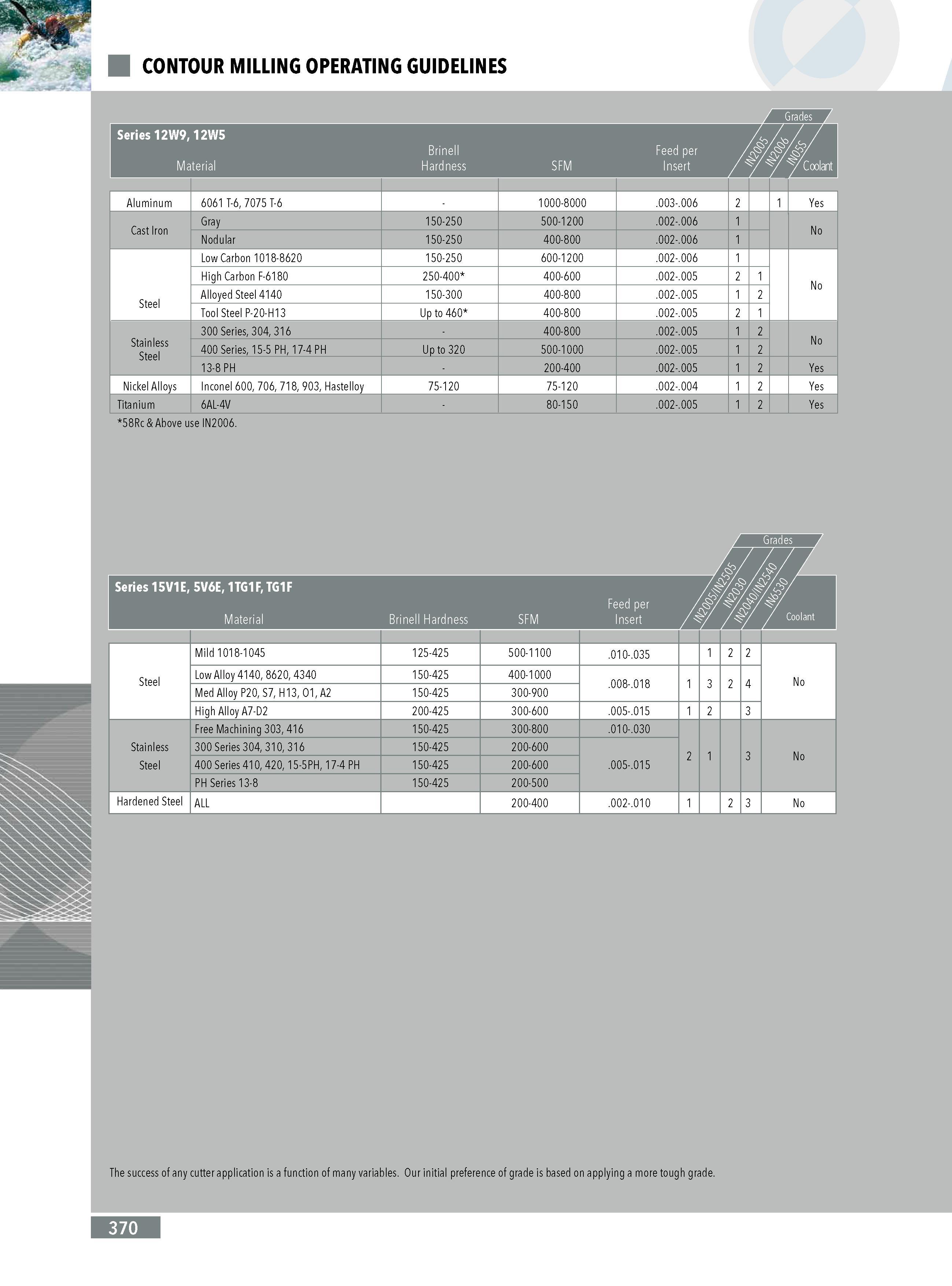

CONTOUR MILLING OPERATING GUIDELINES Grades Series 12W912W5 Material Brinell Hardness SFM Feed per Insert i i y Coolant Aluminum 6061 T-6 7075 T-6 1000-8000 .003-.006 2 1 Yes Cast Iron Gray 150-250 500-1200 .002-.006 1 No Nodular 150-250 400-800 .002-.006 1 Low Carbon 1018-8620 150-250 600-1200 .002-.006 1 High Carbon F-6180 250-400 400-600 .002-.005 2 1 No Steel Alloyed Steel 4140 150-300 400-800 .002-.005 1 2 Tool Steel P-20-H13 Up to 460 400-800 .002-.005 2 1 Stainless Steel 300 Series 304 316 400-800 .002-.005 1 2 No 400 Series 15-5 PH 17-4 PH Up to 320 500-1000 .002-.005 1 2 13-8 PH 200-400 .002-.005 1 2 Yes Nickel Alloys Inconel 600 706 718 903 Hastelloy 75-120 75-120 .002-.004 1 2 Yes Titanium 6AL-4V 80-150 .002-.005 1 2 Yes 58Rc & Above use IN2006. The success of any cutter application is a function of many variables. Our initial preference of grade is based on applying a more tough grade. 370
