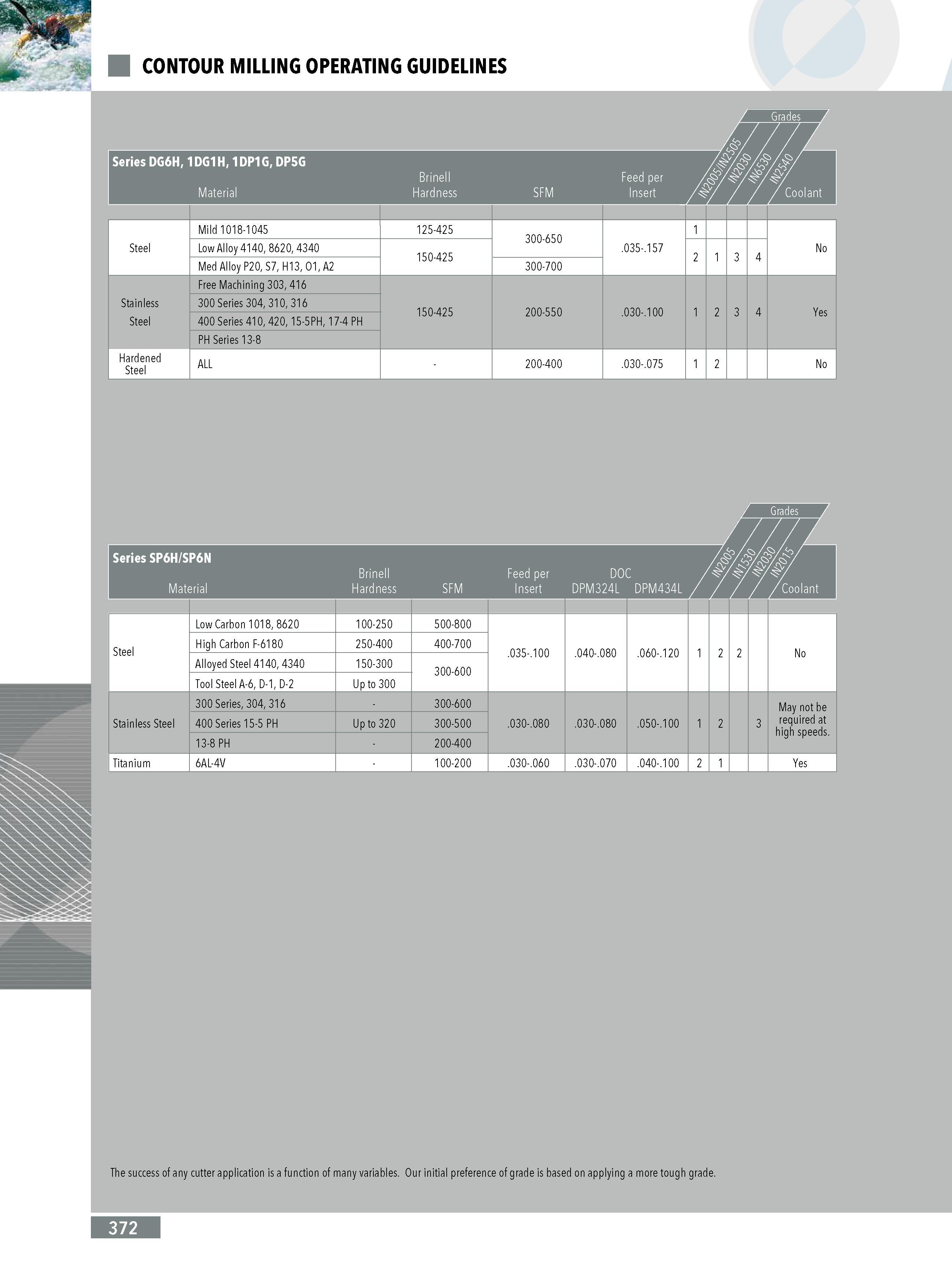

CONTOUR MILLING OPERATING GUIDELINES Series DG6H IDG1H 1DP1G DP5G Material Brinell Hardness SFM Feed per Insert A f Coolant Steel Mild 1018-1045 125-425 300-650 .035-.157 1 No Low Alloy 4140 8620 4340 150-425 2 1 3 4 Med Alloy P20 S7 H13 O1 A2 300-700 Stainless Steel Hardened Steel Free Machining 303 416 150-425 200-550 .030-.100 1 2 3 4 Yes 300 Series 304 310 316 400 Series 410 420 15-5PH 17-4 PH PH Series 13-8 ALL 200-400 .030-.075 1 2 No Series SP6H SP6N Material Brinell Hardness SFM Feed per Insert DO DPM324L DPM434L wi i Coolant Steel Low Carbon 1018 8620 100-250 500-800 .035-.100 .040-.080 .060-.120 1 2 2 No High Carbon F-6180 250-400 400-700 Alloyed Steel 4140 4340 150-300 300-600 Tool Steel A-6 D-1 D-2 Up to 300 Stainless Steel 300 Series 304 316 300-600 .030-.080 .030-.080 .050-.100 1 2 3 May not be requi red at high speeds. 400 Series 15-5 PH Up to 320 300-500 13-8 PH 200-400 Titanium 6AL-4V 100-200 .030-.060 .030-.070 .040-.100 2 1 Yes The success of any cutter application is a function of many variables. Our initial preference of grade is based on applying a more tough grade. 372
