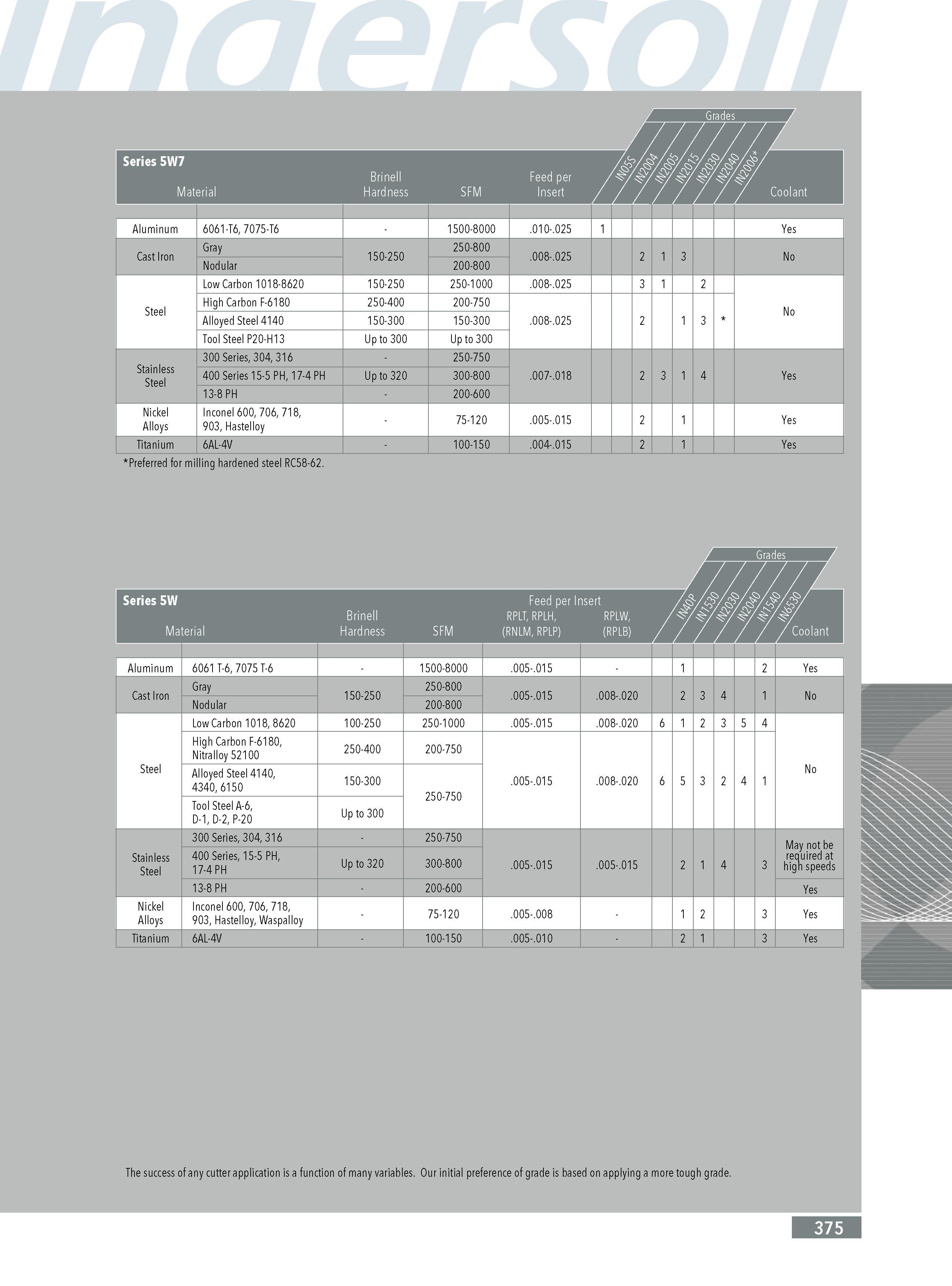

373 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.375

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 375 0373 Lab2u

Series 5W7 Material Brinell Hardness SFM Feed per Insert V & ws w Coolant Aluminum 6061-T6 7075-T6 1500-8000 .010-.025 1 Yes Cast Iron Gray 150-250 250-800 .008-.025 2 1 3 No Nodular 200-800 Steel Low Carbon 1018-8620 150-250 250-1000 .008-.025 3 1 2 No High Carbon F-6180 250-400 200-750 .008-.025 2 1 3 Alloyed Steel 4140 150-300 150-300 Tool Steel P20-H13 Up to 300 Up to 300 Stainless Steel 300 Series 304 316 250-750 .007-.018 2 3 1 4 Yes 400 Series 15-5 PH 17-4 PH Up to 320 300-800 13-8 PH 200-600 Nickel Alloys Inconel 600 706 718 903 Hastelloy 75-120 .005-.015 2 1 Yes Titanium 6AL-4V 100-150 .004-.015 2 1 Yes Preferred for milling hardened steel RC58-62. Series 5W Material Brinell Hardness Feed per Insert RPLT RPLH RPLW (RNLM RPLP) (RPLB) WWwwWw Aluminum 6061 T-6 7075 T-6 1500-8000 .005-.015 1 2 Yes Cast Iron Gray 150-250 250-800 .005-.015 .008-.020 2 3 4 1 No Nodular 200-800 Low Carbon 1018 8620 100-250 250-1000 .005-.015 .008-.020 6 1 2 3 5 4 High Carbon F-6180 Nitralloy 52100 250-400 200-750 Steel Alloyed Steel 4140 4340 6150 150-300 250-750 .005-.015 .008-.020 6 5 3 2 4 1 No Tool Steel A-6 D-1 D-2 P-20 Up to 300 300 Series 304 316 250-750 May not be required at high speeds Stainless Steel 400 Series 15-5 PH 17-4 PH Up to 320 300-800 .005-.015 .005-.015 2 1 4 3 13-8 PH 200-600 Yes Nickel Alloys Inconel 600 706 718 903 Hastelloy Waspalloy 75-120 .005-.008 1 2 3 Yes Titanium 6AL-4V 100-150 .005-.010 2 1 3 Yes Coolant SFM The success of any cutter application is a function of many variables. Our initial preference of grade is based on applying a more tough grade. 375
