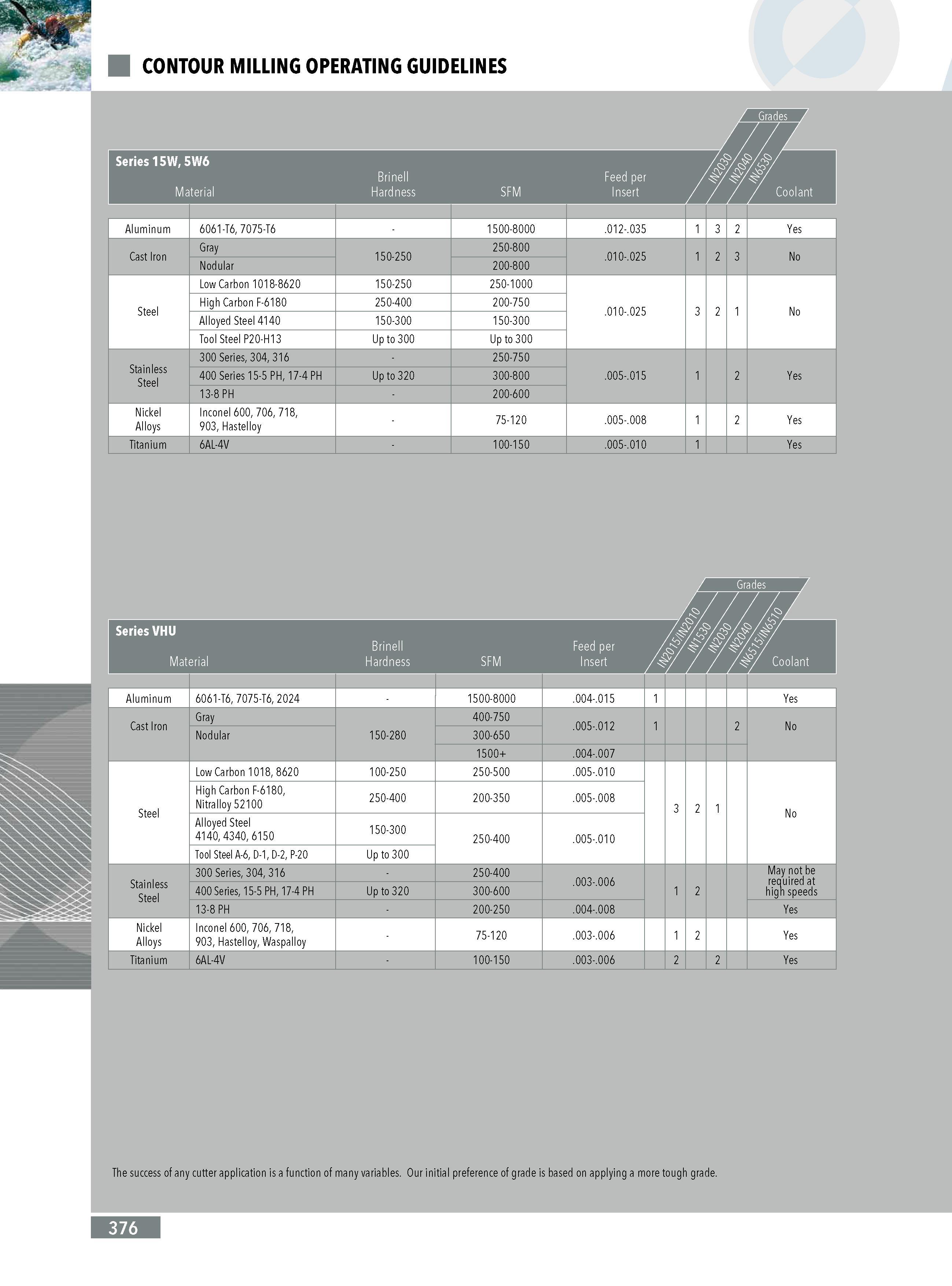

CONTOUR MILLING OPERATING GUIDELINES Series 15W 5W6 Material Hardness Aluminum 6061-T6 7075-T6 1500-8000 .012-.035 1 3 2 Yes Cast Iron Gray 150-250 250-800 .010-.025 1 1 2 3 No Nodular 200-800 Low Carbon 1018-8620 150-250 250-1000 Steel High Carbon F-6180 250-400 200-750 .010-.025 3 2 No Alloyed Steel 4140 150-300 150-300 1 Tool Steel P20-H13 Up to 300 Up to 300 Stainless Steel 300 Series 304 316 250-750 400 Series 15-5 PH 17-4 PH Up to 320 300-800 .005-.015 1 2 Yes 13-8 PH 200-600 Nickel Alloys Inconel 600 706 718 903 Hastelloy 75-120 .005-.008 1 2 Yes Titanium 6AL-4V 100-150 .005-.010 1 Yes Series VHU Material Hardness Aluminum 6061-T6 7075-T6 2024 1500-8000 .004-.015 1 Yes Cast Iron Gray 400-750 .005-.012 2 No Nodular 150-280 300-650 1 1500+ .004-.007 Low Carbon 1018 8620 100-250 250-500 .005-.010 Steel High Carbon F-6180 Nitralloy 52100 250-400 200-350 .005-.008 3 2 1 No Alloyed Steel 4140 4340 6150 150-300 250-400 .005-.010 Tool Steel A-6 D-1 D-2 P-20 Up to 300 Stainless Steel 300 Series 304 316 250-400 .003-.006 May not be required at high speeds 400 Series 15-5 PH 17-4 PH Up to 320 300-600 1 2 13-8 PH 200-250 .004-.008 Yes Nickel Alloys Inconel 600 706 718 903 Hastelloy Waspalloy 75-120 .003-.006 1 2 Yes Titanium 6AL-4V 100-150 .003-.006 2 2 Yes The success of any cutter application is a function of many variables. Our initial preference of grade is based on applying a more tough grade. 376
