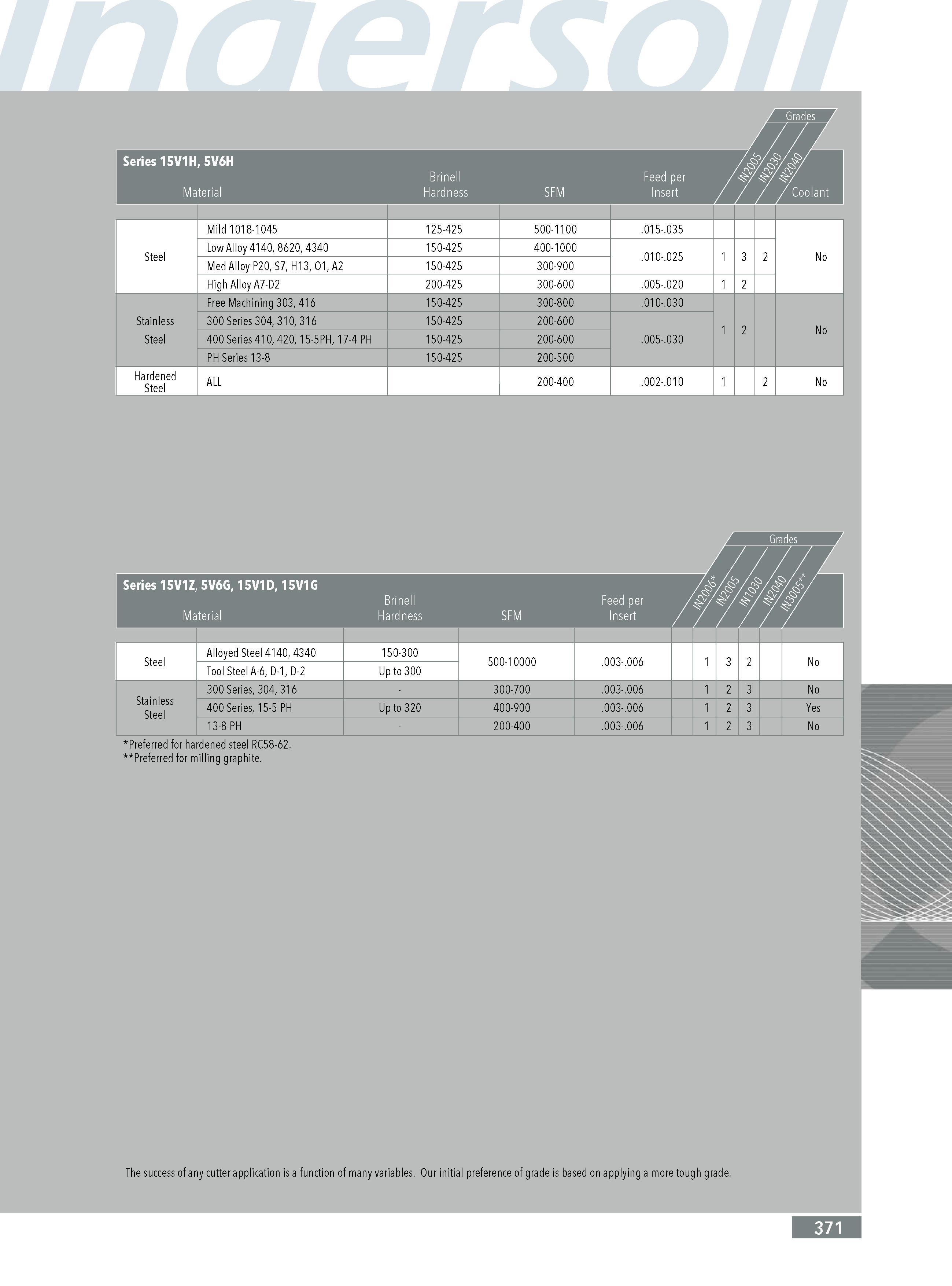

369 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.371

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 371 0369 Lab2u

Series 15V1H 5V6H Material Brinell Hardness SFM Feed per Insert m Sv w Coolant Steel Mild 1018-1045 125-425 500-1100 .015-.035 No Low Alloy 4140 8620 4340 150-425 400-1000 .010-.025 1 3 2 Med Alloy P20 S7 H13 O1 A2 150-425 300-900 High Alloy A7-D2 200-425 300-600 .005-.020 1 2 Stainless Steel Free Machining 303 416 150-425 300-800 .010-.030 1 2 No 300 Series 304 310 316 150-425 200-600 .005-.030 400 Series 410 420 15-5PH 17-4 PH 150-425 200-600 PH Series 13-8 150-425 200-500 Hardened Steel ALL 200-400 .002-.010 1 2 No Series 15V1Z 5V6G 15V1D 15V1G Material Brinell Hardness SFM Feed per Insert r % Ww nt Steel Alloyed Steel 4140 4340 150-300 500-10000 .003-.006 1 3 2 No Tool Steel A-6 D-1 D-2 Up to 300 Stainless Steel 300 Series 304 316 300-700 .003-.006 1 2 3 No 400 Series 15-5 PH Up to 320 400-900 .003-.006 1 2 3 Yes 13-8 PH 200-400 .003-.006 1 2 3 No Preferred for hardened steel RC58-62. Preferred for milling graphite. The success of any cutter application is a function of many variables. Our initial preference of grade is based on applying a more tough grade. 371
