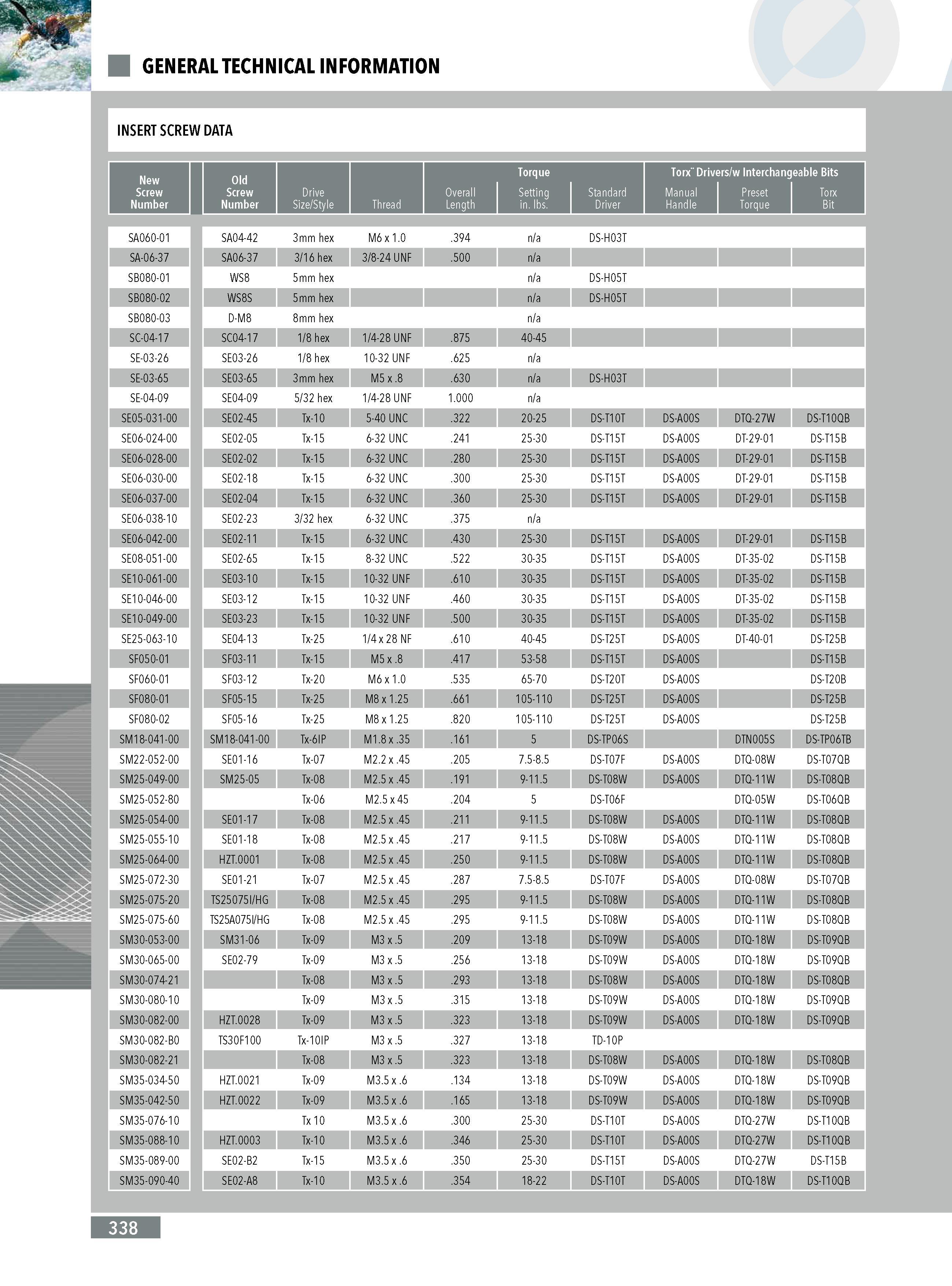

GENERAL TECHNICAL INFORMATION INSERT SCREW DATA Old Drive Size Style Thread Torque Torx" Drivers w Interchangeable Bits Screw Number Screw Number Overall Length Setting in. lbs. Standard Driver Manual Handle Preset Torque Torx Bit SA060-01 SA04-42 3mm hex M6 x 1.0 .394 n a DS-H03T SA-06-37 SA06-37 3 16 hex 3 8-24 UNF .500 n a SB080-01 WS8 5mm hex n a DS-H05T SB080-02 WS8S 5mm hex n a DS-H05T SB080-03 D-M8 8mm hex n a SC-04-17 SC04-17 1 8 hex 1 4-28 UNF .875 40-45 SE-03-26 SE03-26 1 8 hex 10-32 UNF .625 n a SE-03-65 SE03-65 3mm hex M5 x .8 .630 n a DS-H03T SE-04-09 SE04-09 5 32 hex 1 4-28 UNF 1.000 n a SE05-031-00 SE02-45 Tx-10 5-40 UNC .322 20-25 DS-T10T DS-A00S DTQ-27W DS-T10QB SE06-024-00 SE02-05 Tx-15 6-32 UNC .241 25-30 DS-T15T DS-A00S DT-29-01 DS-T15B SE06-028-00 SE02-02 Tx-15 6-32 UNC .280 25-30 DS-T15T DS-A00S DT-29-01 DS-T15B SE06-030-00 SE02-18 Tx-15 6-32 UNC .300 25-30 DS-T15T DS-A00S DT-29-01 DS-T15B SE06-037-00 SE02-04 Tx-15 6-32 UNC .360 25-30 DS-T15T DS-A00S DT-29-01 DS-T15B SE06-038-10 SE02-23 3 32 hex 6-32 UNC .375 n a SE06-042-00 SE02-11 Tx-15 6-32 UNC .430 25-30 DS-T15T DS-A00S DT-29-01 DS-T15B SE08-051-00 SE02-65 Tx-15 8-32 UNC .522 30-35 DS-T15T DS-A00S DT-35-02 DS-T15B SE10-061-00 SE03-10 Tx-15 10-32 UNF .610 30-35 DS-T15T DS-A00S DT-35-02 DS-T15B SE10-046-00 SE03-12 Tx-15 10-32 UNF .460 30-35 DS-T15T DS-A00S DT-35-02 DS-T15B SE10-049-00 SE03-23 Tx-15 10-32 UNF .500 30-35 DS-T15T DS-A00S DT-35-02 DS-T15B SE25-063-10 SE04-13 Tx-25 1 4 x 28 NF .610 40-45 DS-T25T DS-A00S DT-40-01 DS-T25B SF050-01 SF03-11 Tx-15 M5 x .8 .417 53-58 DS-T15T DS-A00S DS-T15B SF060-01 SF03-12 Tx-20 M6 x 1.0 .535 65-70 DS-T20T DS-A00S DS-T20B SF080-01 SF05-15 Tx-25 M8 x 1.25 .661 105-110 DS-T25T DS-A00S DS-T25B SF080-02 SF05-16 Tx-25 M8 x 1.25 .820 105-110 DS-T25T DS-A00S DS-T25B SM18-041-00 SM18-041-00 Tx-6IP M1.8 x .35 .161 5 DS-TP06S DTN005S DS-TP06TB SM22-052-00 SE01-16 Tx-07 M2.2 x .45 .205 7.5-8.5 DS-T07F DS-A00S DTQ-08W DS-T07QB SM25-049-00 SM25-05 Tx-08 M2.5 x .45 .191 9-11.5 DS-T08W DS-A00S DTQ-11W DS-T08QB SM25-052-80 Tx-06 M2.5 x 45 .204 5 DS-T06F DTQ-05W DS-T06QB SM25-054-00 SE01-17 Tx-08 M2.5 x .45 .211 9-11.5 DS-T08W DS-A00S DTQ-11W DS-T08QB SM25-055-10 SE01-18 Tx-08 M2.5 x .45 .217 9-11.5 DS-T08W DS-A00S DTQ-11W DS-T08QB SM25-064-00 HZT.0001 Tx-08 M2.5 x .45 .250 9-11.5 DS-T08W DS-A00S DTQ-11W DS-T08QB SM25-072-30 SE01-21 Tx-07 M2.5 x .45 .287 7.5-8.5 DS-T07F DS-A00S DTQ-08W DS-T07QB SM25-075-20 TS25075I HG Tx-08 M2.5 x .45 .295 9-11.5 DS-T08W DS-A00S DTQ-11W DS-T08QB SM25-075-60 TS25A075I HG Tx-08 M2.5 x .45 .295 9-11.5 DS-T08W DS-A00S DTQ-11W DS-T08QB SM30-053-00 SM31-06 Tx-09 M3 x .5 .209 13-18 DS-T09W DS-A00S DTQ-18W DS-T09QB SM30-065-00 SE02-79 Tx-09 M3 x .5 .256 13-18 DS-T09W DS-A00S DTQ-18W DS-T09QB SM30-074-21 Tx-08 M3 x .5 .293 13-18 DS-T08W DS-A00S DTQ-18W DS-T08QB SM30-080-10 Tx-09 M3 x .5 .315 13-18 DS-T09W DS-A00S DTQ-18W DS-T09QB SM30-082-00 HZT.0028 Tx-09 M3 x .5 .323 13-18 DS-T09W DS-A00S DTQ-18W DS-T09QB SM30-082-B0 TS30F100 Tx-10IP M3 x .5 .327 13-18 TD-10P SM30-082-21 Tx-08 M3 x .5 .323 13-18 DS-T08W DS-A00S DTQ-18W DS-T08QB SM35-034-50 HZT.0021 Tx-09 M3.5 x .6 .134 13-18 DS-T09W DS-A00S DTQ-18W DS-T09QB SM35-042-50 HZT.0022 Tx-09 M3.5 x .6 .165 13-18 DS-T09W DS-A00S DTQ-18W DS-T09QB SM35-076-10 Tx 10 M3.5 x .6 .300 25-30 DS-T10T DS-A00S DTQ-27W DS-T10QB SM35-088-10 HZT.0003 Tx-10 M3.5 x .6 .346 25-30 DS-T10T DS-A00S DTQ-27W DS-T10QB SM35-089-00 SE02-B2 Tx-15 M3.5 x .6 .350 25-30 DS-T15T DS-A00S DTQ-27W DS-T15B SM35-090-40 SE02-A8 Tx-10 M3.5 x .6 .354 18-22 DS-T10T DS-A00S DTQ-18W DS-T10QB 338
