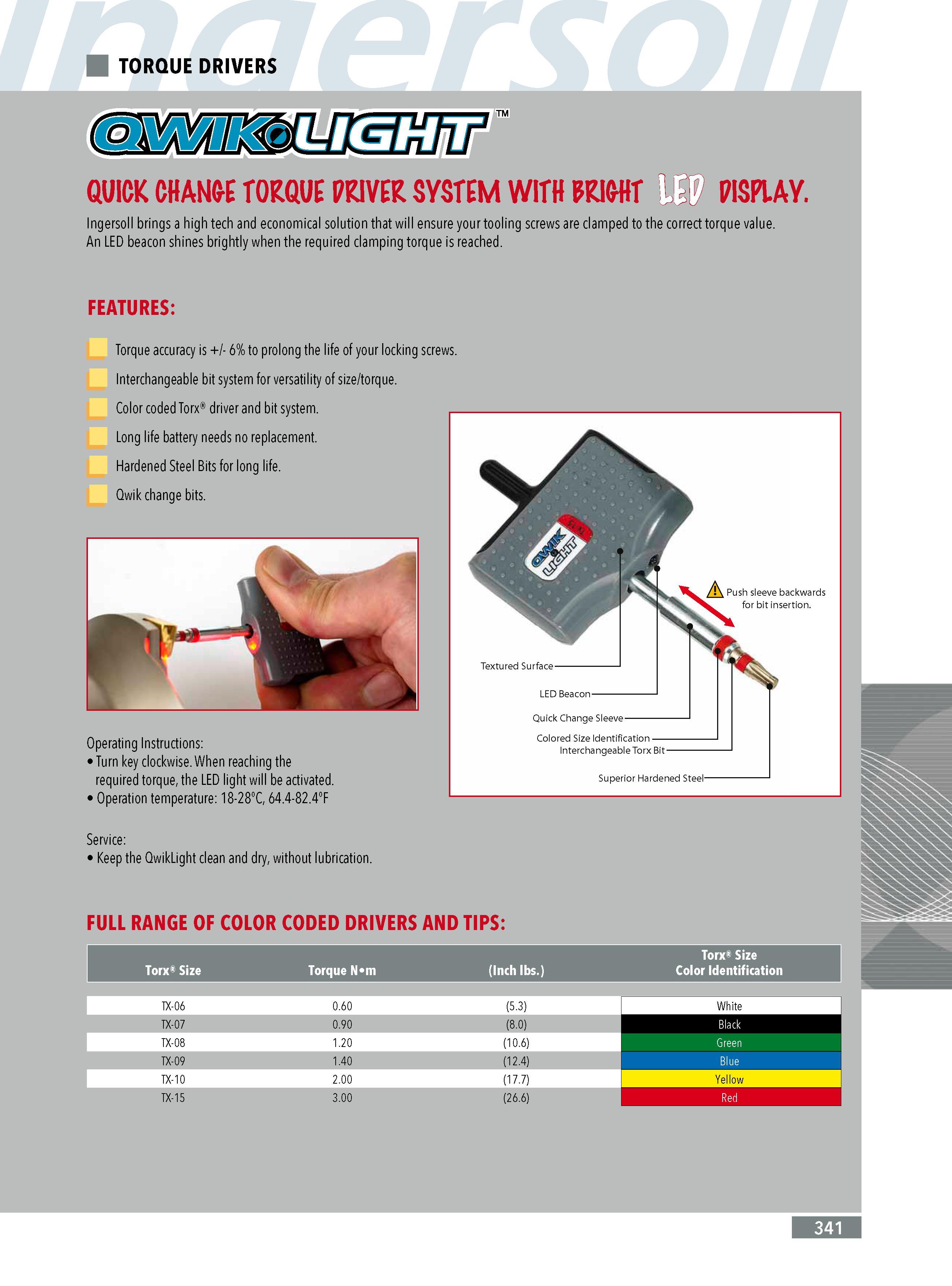

339 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.341

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 341 0339 Lab2u

TORQUE DRIVERS QUICK CHANGE TORQUE DRIVER SYSTEM WITH BRIGHT DISPLAY. Ingersoll brings a high tech and economical solution that will ensure your tooling screws are clamped to the correct torque value. An LED beacon shines brightly when the required clamping torque is reached. FEATURES: Torque accuracy is + - 6% to prolong the life of your locking screws. Interchangeable bit system for versatility of size torque. Color coded Torx driver and bit system. Long life battery needs no replacement. Hardened Steel Bits for long life. Qwik change bits. Textured Surface- k Push sleeve backwards for bit insertion. Quick Change Sleeve- Operating Instructions: Turn key clockwise. When reaching the required torque the LED light will be activated. Operation temperature: 18-28C 64.4-82.4F Service: Keep the QwikLight clean and dry without lubrication. FULL RANGE OF COLOR CODED DRIVERS AND TIPS: Colored Size Identification - Interchangeable Torx Bit- Superior Hardened Steel- Torx Size Torx Size Torque N m (Inch lbs.) Color Identification TX-06 0.60 (5.3) White TX-07 0.90 (8.0) Black TX-08 1.20 (10.6) Green TX-09 1.40 (12.4) Blue TX-10 2.00 (17.7) Yellow TX-15 3.00 (26.6) Red LED Beacon 341
