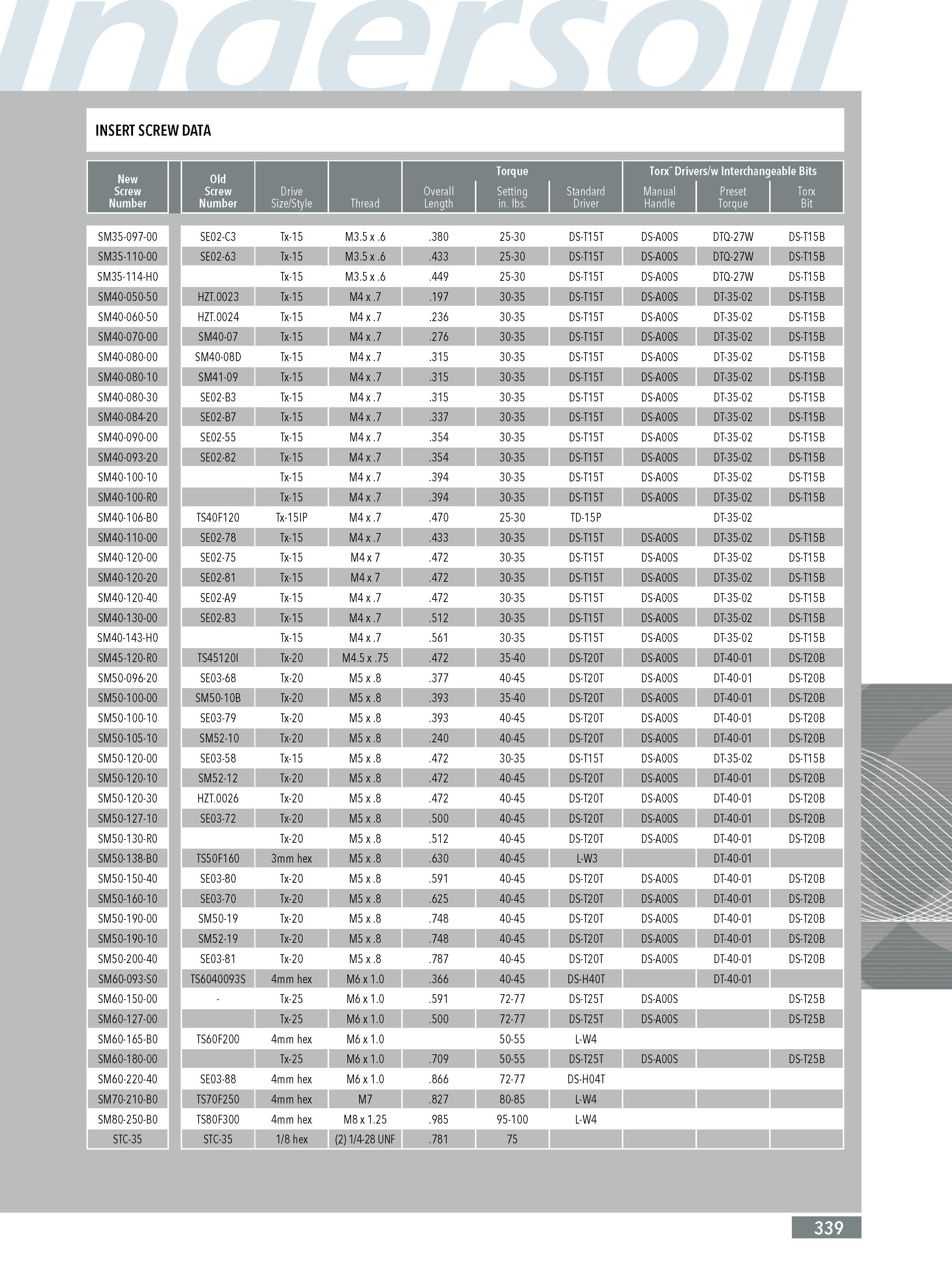

INSERT SCREW DATA Old Drive Size StyIe Thread Torque Torx" Drivers w Interchangeable Bits Screw Number Screw Number OveraII Length Setting in.Ibs. Standard Driver ManuaI HandIe Preset Torque Torx Bit SM35-097-00 SE02-C3 Tx-15 M3.5 x .6 .380 25-30 DS-T15T DS-A00S DTQ-27W DS-T15B SM35-110-00 SE02-63 Tx-15 M3.5 x .6 .433 25-30 DS-T15T DS-A00S DTQ-27W DS-T15B SM35-114-H0 Tx-15 M3.5 x .6 .449 25-30 DS-T15T DS-A00S DTQ-27W DS-T15B SM40-050-50 HZT.0023 Tx-15 M4 x .7 .197 30-35 DS-T15T DS-A00S DT-35-02 DS-T15B SM40-060-50 HZT.0024 Tx-15 M4 x .7 .236 30-35 DS-T15T DS-A00S DT-35-02 DS-T15B SM40-070-00 SM40-07 Tx-15 M4 x .7 .276 30-35 DS-T15T DS-A00S DT-35-02 DS-T15B SM40-080-00 SM40-08D Tx-15 M4 x .7 .315 30-35 DS-T15T DS-A00S DT-35-02 DS-T15B SM40-080-10 SM41-09 Tx-15 M4 x .7 .315 30-35 DS-T15T DS-A00S DT-35-02 DS-T15B SM40-080-30 SE02-B3 Tx-15 M4 x .7 .315 30-35 DS-T15T DS-A00S DT-35-02 DS-T15B SM40-084-20 SE02-B7 Tx-15 M4 x .7 .337 30-35 DS-T15T DS-A00S DT-35-02 DS-T15B SM40-090-00 SE02-55 Tx-15 M4 x .7 .354 30-35 DS-T15T DS-A00S DT-35-02 DS-T15B SM40-093-20 SE02-82 Tx-15 M4 x .7 .354 30-35 DS-T15T DS-A00S DT-35-02 DS-T15B SM40-100-10 Tx-15 M4 x .7 .394 30-35 DS-T15T DS-A00S DT-35-02 DS-T15B SM40-100-R0 Tx-15 M4 x .7 .394 30-35 DS-T15T DS-A00S DT-35-02 DS-T15B SM40-106-B0 TS40F120 Tx-15IP M4 x .7 .470 25-30 TD-15P DT-35-02 SM40-110-00 SE02-78 Tx-15 M4 x .7 .433 30-35 DS-T15T DS-A00S DT-35-02 DS-T15B SM40-120-00 SE02-75 Tx-15 M4 x 7 .472 30-35 DS-T15T DS-A00S DT-35-02 DS-T15B SM40-120-20 SE02-81 Tx-15 M4 x 7 .472 30-35 DS-T15T DS-A00S DT-35-02 DS-T15B SM40-120-40 SE02-A9 Tx-15 M4 x .7 .472 30-35 DS-T15T DS-A00S DT-35-02 DS-T15B SM40-130-00 SE02-83 Tx-15 M4 x .7 .512 30-35 DS-T15T DS-A00S DT-35-02 DS-T15B SM40-143-H0 Tx-15 M4 x .7 .561 30-35 DS-T15T DS-A00S DT-35-02 DS-T15B SM45-120-R0 TS45120I Tx-20 M4.5 x .75 .472 35-40 DS-T20T DS-A00S DT-40-01 DS-T20B SM50-096-20 SE03-68 Tx-20 M5 x .8 .377 40-45 DS-T20T DS-A00S DT-40-01 DS-T20B SM50-100-00 SM50-10B Tx-20 M5 x .8 .393 35-40 DS-T20T DS-A00S DT-40-01 DS-T20B SM50-100-10 SE03-79 Tx-20 M5 x .8 .393 40-45 DS-T20T DS-A00S DT-40-01 DS-T20B SM50-105-10 SM52-10 Tx-20 M5 x .8 .240 40-45 DS-T20T DS-A00S DT-40-01 DS-T20B SM50-120-00 SE03-58 Tx-15 M5 x .8 .472 30-35 DS-T15T DS-A00S DT-35-02 DS-T15B SM50-120-10 SM52-12 Tx-20 M5 x .8 .472 40-45 DS-T20T DS-A00S DT-40-01 DS-T20B SM50-120-30 HZT.0026 Tx-20 M5 x .8 .472 40-45 DS-T20T DS-A00S DT-40-01 DS-T20B SM50-127-10 SE03-72 Tx-20 M5 x .8 .500 40-45 DS-T20T DS-A00S DT-40-01 DS-T20B SM50-130-R0 Tx-20 M5 x .8 .512 40-45 DS-T20T DS-A00S DT-40-01 DS-T20B SM50-138-B0 TS50F160 3mm hex M5 x .8 .630 40-45 L-W3 DT-40-01 SM50-150-40 SE03-80 Tx-20 M5 x .8 .591 40-45 DS-T20T DS-A00S DT-40-01 DS-T20B SM50-160-10 SE03-70 Tx-20 M5 x .8 .625 40-45 DS-T20T DS-A00S DT-40-01 DS-T20B SM50-190-00 SM50-19 Tx-20 M5 x .8 .748 40-45 DS-T20T DS-A00S DT-40-01 DS-T20B SM50-190-10 SM52-19 Tx-20 M5 x .8 .748 40-45 DS-T20T DS-A00S DT-40-01 DS-T20B SM50-200-40 SE03-81 Tx-20 M5 x .8 .787 40-45 DS-T20T DS-A00S DT-40-01 DS-T20B SM60-093-S0 TS6040093S 4mm hex M6 x 1.0 .366 40-45 DS-H40T DT-40-01 SM60-150-00 Tx-25 M6 x 1.0 .591 72-77 DS-T25T DS-A00S DS-T25B SM60-127-00 Tx-25 M6 x 1.0 .500 72-77 DS-T25T DS-A00S DS-T25B SM60-165-B0 TS60F200 4mm hex M6 x 1.0 50-55 L-W4 SM60-180-00 Tx-25 M6 x 1.0 .709 50-55 DS-T25T DS-A00S DS-T25B SM60-220-40 SE03-88 4mm hex M6 x 1.0 .866 72-77 DS-H04T SM70-210-B0 TS70F250 4mm hex M7 .827 80-85 L-W4 SM80-250-B0 TS80F300 4mm hex M8 x 1.25 .985 95-100 L-W4 STC-35 STC-35 1 8 hex (2) 1 4-28 UNF .781 75 339
