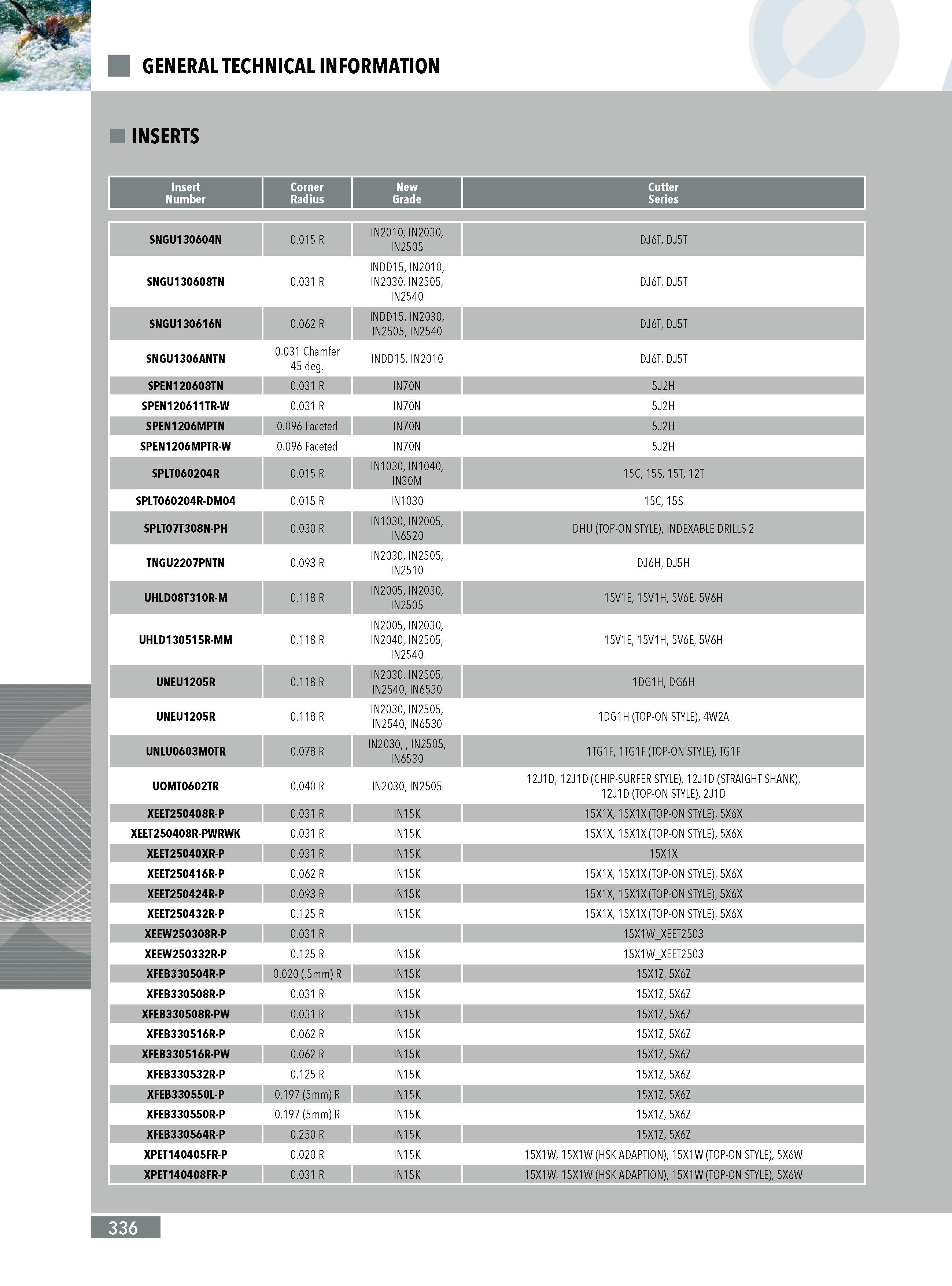

GENERAL TECHNICAL INFORMATION INSERTS Insert Corner New Cutter Number Radius Grade Series SNGU130604N 0.015 R IN2010 IN2030 IN2505 DJ6T DJ5T INDD15 IN2010 SNGU130608TN 0.031 R IN2030 IN2505 IN2540 DJ6T DJ5T SNGU130616N 0.062 R INDD15 IN2030 IN2505 IN2540 DJ6T DJ5T SNGU1306ANTN 0.031 Chamfer 45 deg. INDD15 IN2010 DJ6T DJ5T SPEN120608TN 0.031 R IN70N 5J2H SPEN120611TR-W 0.031 R IN70N 5J2H SPEN1206MPTN 0.096 Faceted IN70N 5J2H SPEN1206MPTR-W 0.096 Faceted IN70N 5J2H SPLT060204R 0.015 R IN1030 IN1040 IN30M 15C 15S 15T 12T SPLT060204R-DM04 0.015 R IN1030 15C 15S SPLT07T308N-PH 0.030 R IN1030 IN2005 IN6520 DHU (TOP-ON STYLE) INDEXABLE DRILLS 2 TNGU2207PNTN 0.093 R IN2030 IN2505 IN2510 DJ6H DJ5H UHLD08T310R-M 0.118 R IN2005 IN2030 IN2505 15V1E 15V1H 5V6E 5V6H IN2005 IN2030 UHLD130515R-MM 0.118 R IN2040 IN2505 IN2540 15V1E 15V1H 5V6E 5V6H UNEU1205R 0.118 R IN2030 IN2505 IN2540 IN6530 1DG1H DG6H UNEU1205R 0.118 R IN2030 IN2505 IN2540 IN6530 1DG1H (TOP-ON STYLE) 4W2A UNLU0603M0TR 0.078 R IN2030 IN2505 IN6530 1TG1F 1TG1F (TOP-ON STYLE) TG1F UOMT0602TR 0.040 R IN2030 IN2505 12J1D 12J1D (CHIP-SURFER STYLE) 12J1D (STRAIGHT SHANK) 12J1D (TOP-ON STYLE) 2J1D XEET250408R-P 0.031 R IN15K 15X1X 15X1X (TOP-ON STYLE) 5X6X XEET250408R-PWRWK 0.031 R IN15K 15X1X 15X1X (TOP-ON STYLE) 5X6X XEET25040XR-P 0.031 R IN15K 15X1X XEET250416R-P 0.062 R IN15K 15X1X 15X1X (TOP-ON STYLE) 5X6X XEET250424R-P 0.093 R IN15K 15X1X 15X1X (TOP-ON STYLE) 5X6X XEET250432R-P 0.125 R IN15K 15X1X 15X1X (TOP-ON STYLE) 5X6X XEEW250308R-P 0.031 R 15X1WXEET2503 XEEW250332R-P 0.125 R IN15K 15X1WXEET2503 XFEB330504R-P 0.020 (.5mm) R IN15K 15X1Z 5X6Z XFEB330508R-P 0.031 R IN15K 15X1Z 5X6Z XFEB330508R-PW 0.031 R IN15K 15X1Z 5X6Z XFEB330516R-P 0.062 R IN15K 15X1Z 5X6Z XFEB330516R-PW 0.062 R IN15K 15X1Z 5X6Z XFEB330532R-P 0.125 R IN15K 15X1Z 5X6Z XFEB330550L-P 0.197 (5mm) R IN15K 15X1Z 5X6Z XFEB330550R-P 0.197 (5mm) R IN15K 15X1Z 5X6Z XFEB330564R-P 0.250 R IN15K 15X1Z 5X6Z XPET140405FR-P 0.020 R IN15K 15X1W 15X1W (HSK ADAPTION) 15X1W (TOP-ON STYLE) 5X6W XPET140408FR-P 0.031 R IN15K 15X1W 15X1W (HSK ADAPTION) 15X1W (TOP-ON STYLE) 5X6W 336
