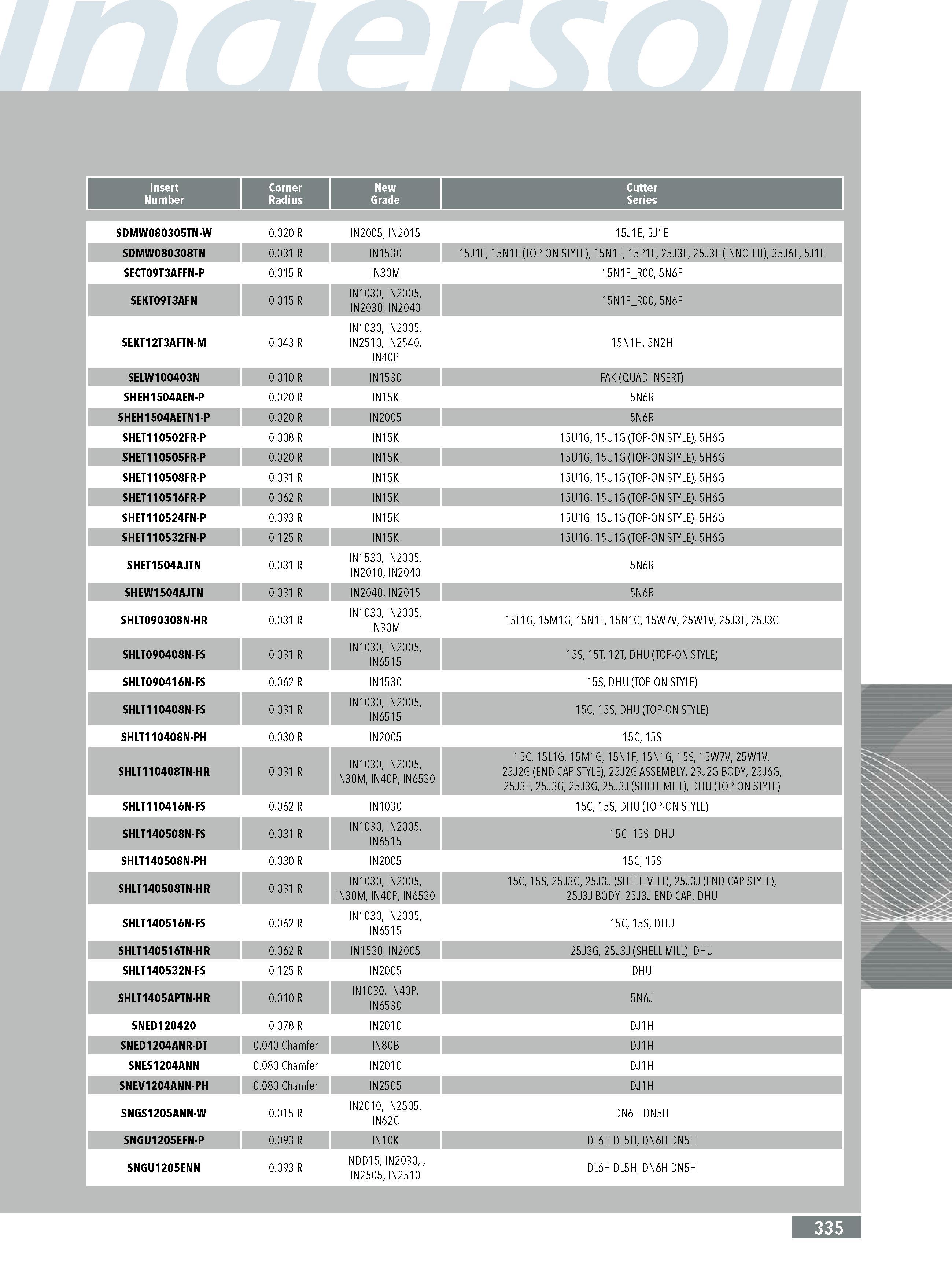

Insert Corner New Cutter Number Radius Grade Series SDMW080305TN-W 0.020 R IN2005 IN2015 15J1E 5J1E SDMW080308TN 0.031 R IN1530 15J1E 15N1E (TOP-ON STYLE) 15N1E 15P1E 25J3E 25J3E (INNO-FIT) 35J6E 5J1E SECT09T3AFFN-P 0.015 R IN30M 15N1FR005N6F SEKT09T3AFN 0.015 R IN1030 IN2005 IN2030 IN2040 15N1FR005N6F IN1030 IN2005 SEKT12T3AFTN-M 0.043 R IN2510 IN2540 IN40P 15N1H 5N2H SELW100403N 0.010 R IN1530 FAK (QUAD INSERT) SHEH1504AEN-P 0.020 R IN15K 5N6R SHEH1504AETN1-P 0.020 R IN2005 5N6R SHET110502FR-P 0.008 R IN15K 15U1G 15U1G (TOP-ON STYLE) 5H6G SHET110505FR-P 0.020 R IN15K 15U1G 15U1G (TOP-ON STYLE) 5H6G SHET110508FR-P 0.031 R IN15K 15U1G 15U1G (TOP-ON STYLE) 5H6G SHET110516FR-P 0.062 R IN15K 15U1G 15U1G (TOP-ON STYLE) 5H6G SHET110524FN-P 0.093 R IN15K 15U1G 15U1G (TOP-ON STYLE) 5H6G SHET110532FN-P 0.125 R IN15K 15U1G 15U1G (TOP-ON STYLE) 5H6G SHET1504AJTN 0.031 R IN1530 IN2005 IN2010 IN2040 5N6R SHEW1504AJTN 0.031 R IN2040 IN2015 5N6R SHLT090308N-HR 0.031 R IN1030 IN2005 IN30M 15L1G 15M1G 15N1F 15N1G 15W7V 25W1V 25J3F 25J3G SHLT090408N-FS 0.031 R IN1030 IN2005 IN6515 15S 15T 12T DHU (TOP-ON STYLE) SHLT090416N-FS 0.062 R IN1530 15S DHU (TOP-ON STYLE) SHLT110408N-FS 0.031 R IN1030 IN2005 IN6515 15C 15S DHU (TOP-ON STYLE) SHLT110408N-PH 0.030 R IN2005 15C 15S IN1030 IN2005 IN30M IN40P IN6530 15C 15L1G 15M1G 15N1F 15N1G 15S 15W7V 25W1V SHLT110408TN-HR 0.031 R 23J2G (END CAP STYLE) 23J2G ASSEMBLY 23J2G BODY 23J6G 25J3F 25J3G 25J3G 25J3J (SHELL MILL) DHU (TOP-ON STYLE) SHLT110416N-FS 0.062 R IN1030 15C 15S DHU (TOP-ON STYLE) SHLT140508N-FS 0.031 R IN1030 IN2005 IN6515 15C 15S DHU SHLT140508N-PH 0.030 R IN2005 15C 15S SHLT140508TN-HR 0.031 R IN1030 IN2005 IN30M IN40P IN6530 15C 15S 25J3G 25J3J (SHELL MILL) 25J3J (END CAP STYLE) 25J3J BODY 25J3J END CAP DHU SHLT140516N-FS 0.062 R IN1030 IN2005 IN6515 15C 15S DHU SHLT140516TN-HR 0.062 R IN1530 IN2005 25J3G 25J3J (SHELL MILL) DHU SHLT140532N-FS 0.125 R IN2005 DHU SHLT1405APTN-HR 0.010 R IN1030 IN40P IN6530 5N6J SNED120420 0.078 R IN2010 DJ1H SNED1204ANR-DT 0.040 Chamfer IN80B DJ1H SNES1204ANN 0.080 Chamfer IN2010 DJ1H SNEV1204ANN-PH 0.080 Chamfer IN2505 DJ1H SNGS1205ANN-W 0.015 R IN2010 IN2505 IN62C DN6HDN5H SNGU1205EFN-P 0.093 R IN10K DL6H DL5H DN6H DN5H SNGU1205ENN 0.093 R INDD15 IN2030 IN2505 IN2510 DL6H DL5H DN6H DN5H 335
