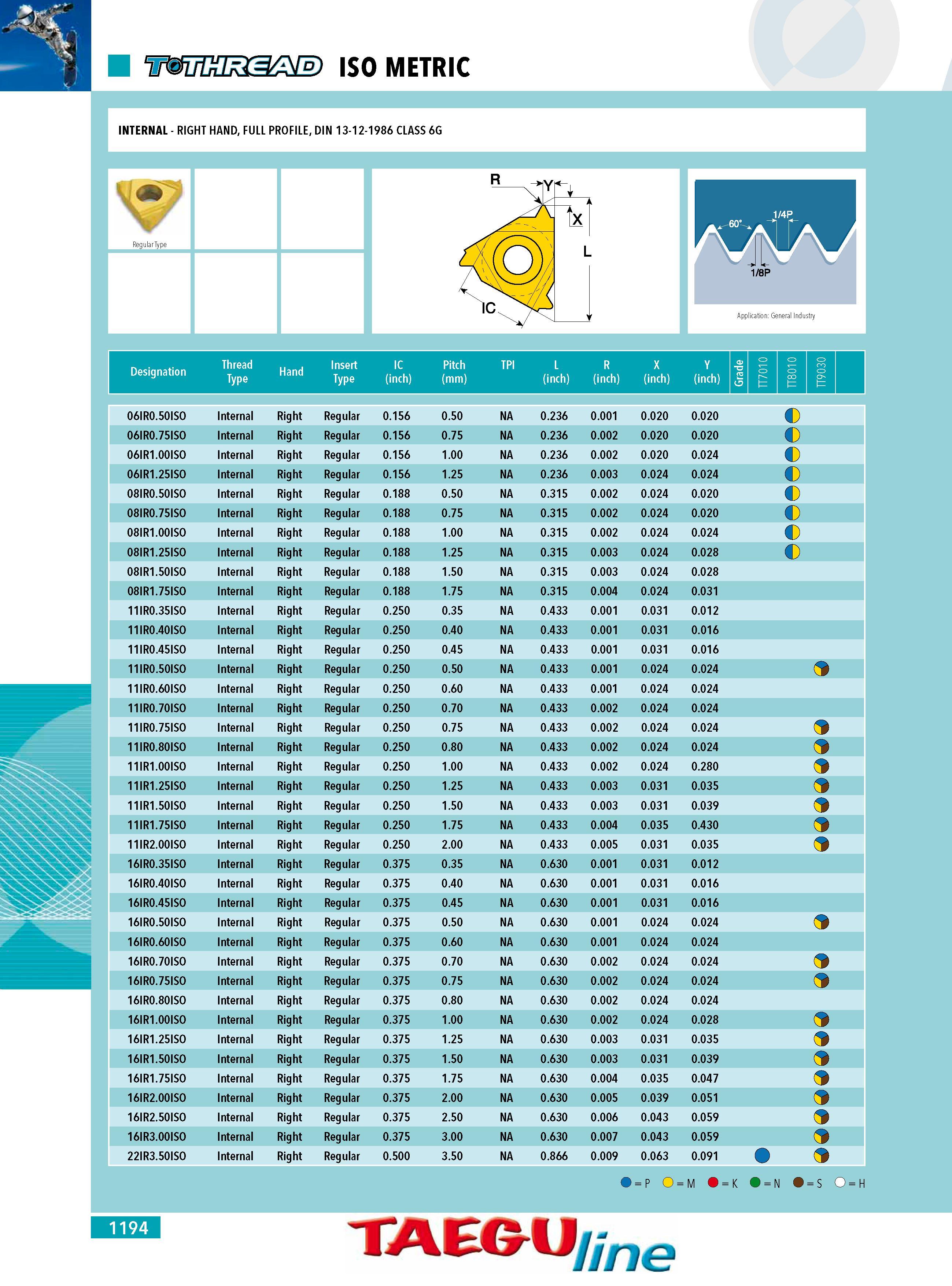

ISO METRIC Designation HY t lT (S L A . J v Insert IC Pitch Type (inch) (mm) L R X Y (inch) (inch) (inch) (inch) TT7010 0 CD 8 TT8 0 3 o 9 TT9 06IR0.50ISC Internal Right Regular 0.156 0.50 NA 0.236 0.001 0.020 0.020 06IR0.75ISO Internal Right Regular 0.156 0.75 NA 0.236 0.002 0.020 0.020 06IR1.00ISC Internal Right Regular 0.156 1.00 NA 0.236 0.002 0.020 0.024 06IR1.25ISC Internal Right Regular 0.156 1.25 NA 0.236 0.003 0.024 0.024 08IR0.50ISC Internal Right Regular 0.188 0.50 NA 0.315 0.002 0.024 0.020 08IR0.75ISC Internal Right Regular 0.188 0.75 NA 0.315 0.002 0.024 0.020 08IR1.00IS0 Internal Right Regular 0.188 1.00 NA 0.315 0.002 0.024 0.024 08IR1.25ISC Internal Right Regular 0.188 1.25 NA 0.315 0.003 0.024 0.028 08IR1.50ISC Internal Right Regular 0.188 1.50 NA 0.315 0.003 0.024 0.028 08IR1.75ISC Internal Right Regular 0.188 1.75 NA 0.315 0.004 0.024 0.031 11IR0.35ISC Internal Right Regular 0.250 0.35 NA 0.433 0.001 0.031 0.012 11IR0.40ISC Internal Right Regular 0.250 0.40 NA 0.433 0.001 0.031 0.016 11IR0.45ISC Internal Right Regular 0.250 0.45 NA 0.433 0.001 0.031 0.016 11IR0.50ISC Internal Right Regular 0.250 0.50 NA 0.433 0.001 0.024 0.024 11IR0.60ISC Internal Right Regular 0.250 0.60 NA 0.433 0.001 0.024 0.024 11IR0.70ISC Internal Right Regular 0.250 0.70 NA 0.433 0.002 0.024 0.024 11IR0.75ISC Internal Right Regular 0.250 0.75 NA 0.433 0.002 0.024 0.024 11IR0.80ISC Internal Right Regular 0.250 0.80 NA 0.433 0.002 0.024 0.024 11IR1.00ISC Internal Right Regular 0.250 1.00 NA 0.433 0.002 0.024 0.280 11IR1.25ISC Internal Right Regular 0.250 1.25 NA 0.433 0.003 0.031 0.035 11IR1.50ISC Internal Right Regular 0.250 1.50 NA 0.433 0.003 0.031 0.039 11IR1.75ISC Internal Right Regular 0.250 1.75 NA 0.433 0.004 0.035 0.430 11IR2.00ISC Internal Right Regular 0.250 2.00 NA 0.433 0.005 0.031 0.035 16IR0.35ISC Internal Right Regular 0.375 0.35 NA 0.630 0.001 0.031 0.012 16IR0.40ISC Internal Right Regular 0.375 0.40 NA 0.630 0.001 0.031 0.016 16IR0.45ISC Internal Right Regular 0.375 0.45 NA 0.630 0.001 0.031 0.016 16IR0.50ISC Internal Right Regular 0.375 0.50 NA 0.630 0.001 0.024 0.024 16IR0.60ISC Internal Right Regular 0.375 0.60 NA 0.630 0.001 0.024 0.024 16IR0.70ISC Internal Right Regular 0.375 0.70 NA 0.630 0.002 0.024 0.024 o 16IR0.75ISC Internal Right Regular 0.375 0.75 NA 0.630 0.002 0.024 0.024 o 16IR0.80ISC Internal Right Regular 0.375 0.80 NA 0.630 0.002 0.024 0.024 16IR1.00ISC Internal Right Regular 0.375 1.00 NA 0.630 0.002 0.024 0.028 16IR1.25ISC Internal Right Regular 0.375 1.25 NA 0.630 0.003 0.031 0.035 16IR1.50ISC Internal Right Regular 0.375 1.50 NA 0.630 0.003 0.031 0.039 16IR1.75ISC Internal Right Regular 0.375 1.75 NA 0.630 0.004 0.035 0.047 16IR2.00ISC Internal Right Regular 0.375 2.00 NA 0.630 0.005 0.039 0.051 o 16IR2.50ISC Internal Right Regular 0.375 2.50 NA 0.630 0.006 0.043 0.059 16IR3.00ISC Internal Right Regular 0.375 3.00 NA 0.630 0.007 0.043 0.059 22IR3.50ISC Internal Right Regular 0.500 3.50 NA 0.866 0.009 0.063 0.091 TPI Hand 1194 O P O M O K O N O S O H TAEGU 7e
