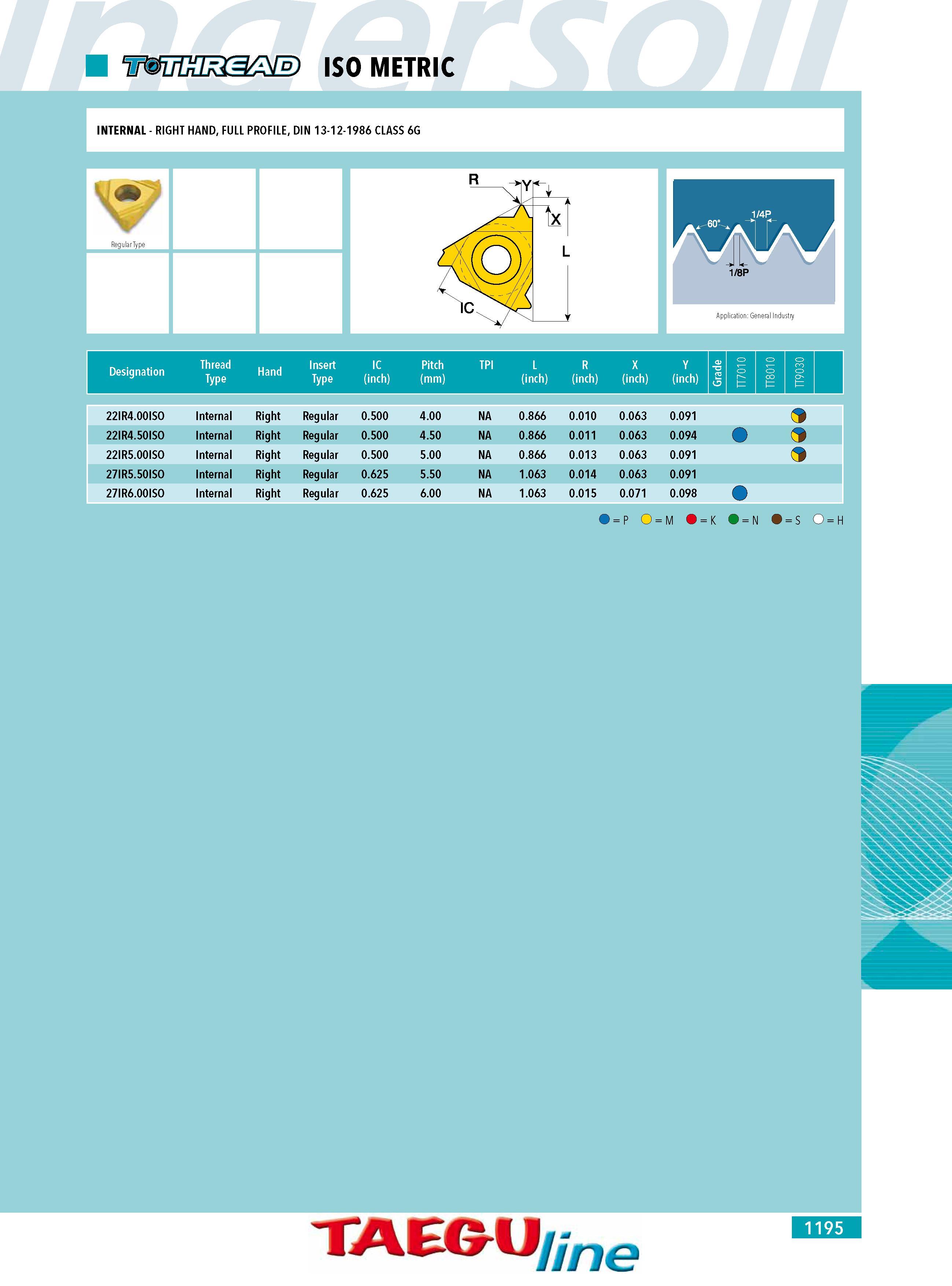

1193 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.1195

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 1195 1193 Lab2u

iso metric Designation Insert IC Pitch Type (inch) (mm) L R X Y (inch) (inch) (inch) (inch) 11 22IR4.00ISO Internal Right Regular 0.500 4.00 NA 0.866 0.010 0.063 0.091 22IR4.50ISO Internal Right Regular 0.500 4.50 NA 0.866 0.011 0.063 0.094 22IR5.00ISO Internal Right Regular 0.500 5.00 NA 0.866 0.013 0.063 0.091 27IR5.50ISO Internal Right Regular 0.625 5.50 NA 1.063 0.014 0.063 0.091 27IR6.00ISO Internal Right Regular 0.625 6.00 NA 1.063 0.015 0.071 0.098 ) P O M O K N ) S O H TPI Hand TAEG-1l 7e 1195
