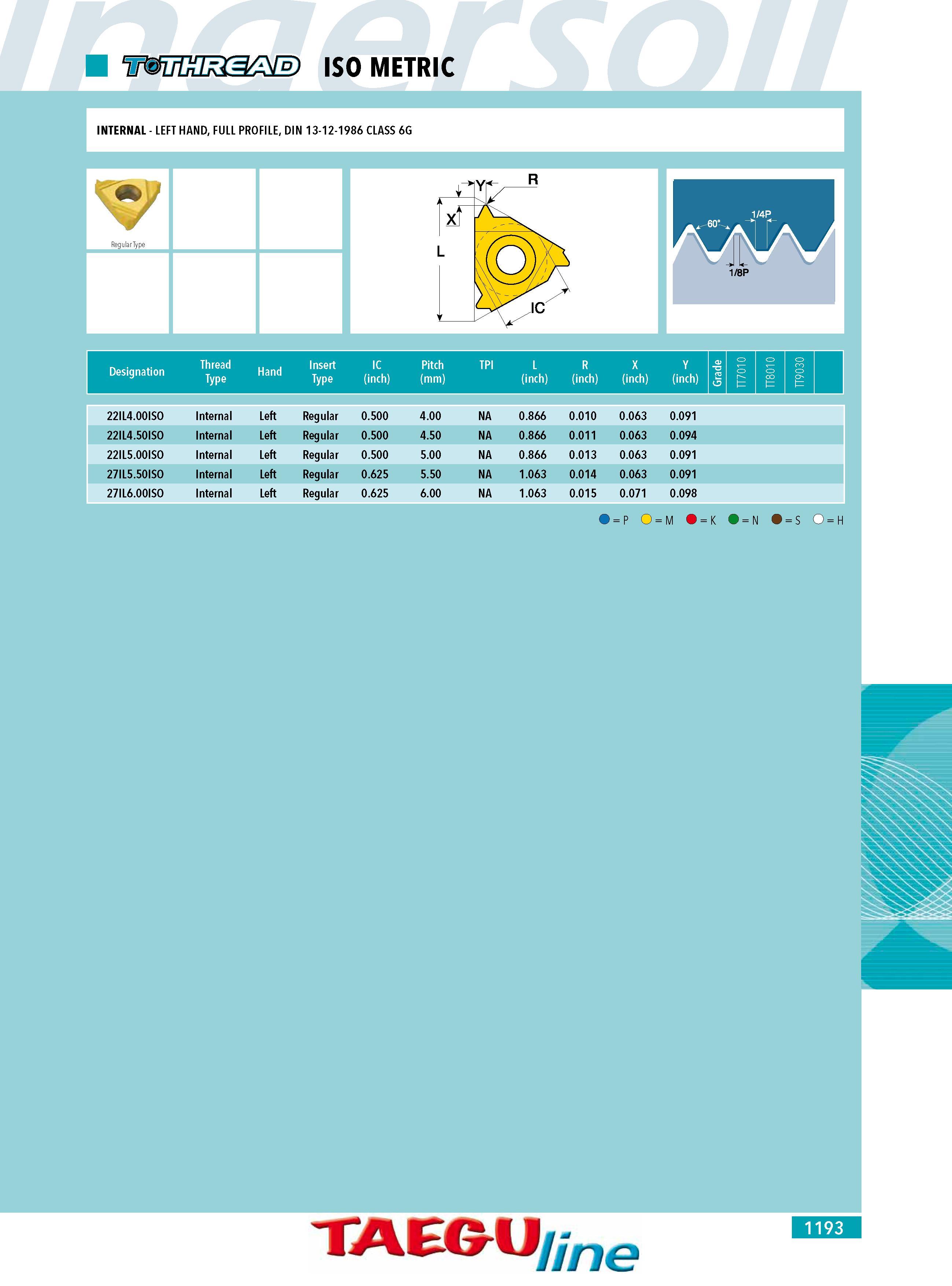

iso metric Designation Insert IC Pitch Type (inch) (mm) L R X Y (inch) (inch) (inch) (inch) 11 22IL4.00ISO Internal Left Regular 0.500 4.00 NA 0.866 0.010 0.063 0.091 22IL4.50ISO Internal Left Regular 0.500 4.50 NA 0.866 0.011 0.063 0.094 22IL5.00ISO Internal Left Regular 0.500 5.00 NA 0.866 0.013 0.063 0.091 27IL5.50ISO Internal Left Regular 0.625 5.50 NA 1.063 0.014 0.063 0.091 27IL6.00ISO Internal Left Regular 0.625 6.00 NA 1.063 0.015 0.071 0.098 ) P O M O K N ) S O H TPI Hand TAEG-1l 7e 1193
