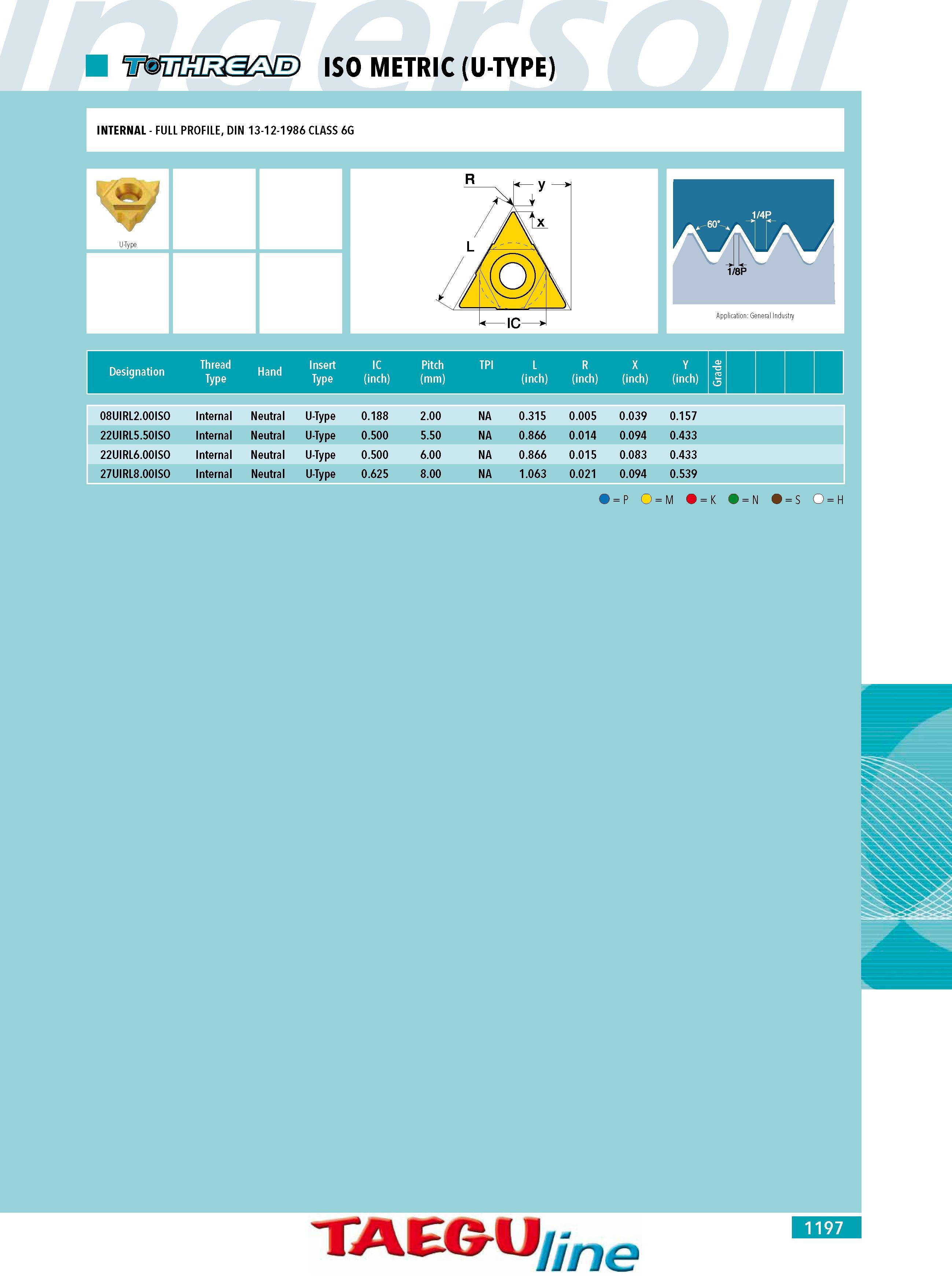

1195 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.1197

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 1197 1195 Lab2u

iso metric (u-type) U-Type n U Designation crv 1 41 i P A f Application: General Industry Insert IC Pitch Type (inch) (mm) L R X Y de (inch) (inch) (inch) (inch) J 08UIRL2.00ISO Internal Neutral U-Type 0.188 2.00 NA 0.315 0.005 0.039 0.157 22UIRL5.50ISO Internal Neutral U-Type 0.500 5.50 NA 0.866 0.014 0.094 0.433 22UIRL6.00ISO Internal Neutral U-Type 0.500 6.00 NA 0.866 0.015 0.083 0.433 27UIRL8.00ISO Internal Neutral U-Type 0.625 8.00 NA 1.063 0.021 0.094 0.539 ') P O M O K N ) S O H TPI Hand TAEG-1l 7e 1197
