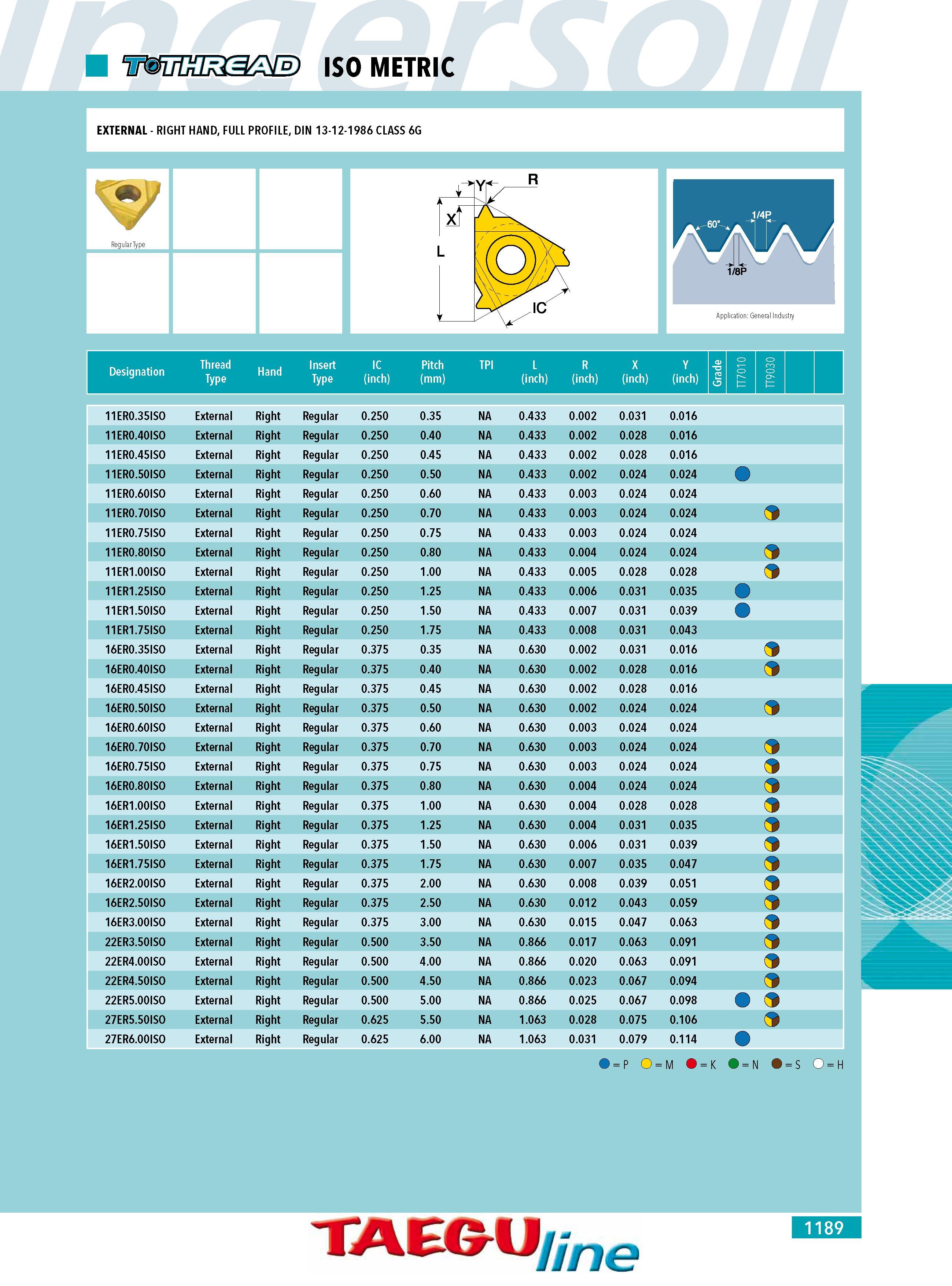

iso metric EXTERNAL - RIGHT HAND FULL PROFILE DIN 13-12-1986 CLASS 6G Regular Type u Designation t '"xl Y y L V 1 cn I 4I P A f 1C Application: General Ir Insert IC Pitch Type (inch) (mm) L R X Y (inch) (inch) (inch) (inch) 11ER0.35ISO External Right Regular 0.250 0.35 NA 0.433 0.002 0.031 0.016 11ER0.40ISO External Right Regular 0.250 0.40 NA 0.433 0.002 0.028 0.016 11ER0.45ISO External Right Regular 0.250 0.45 NA 0.433 0.002 0.028 0.016 11ER0.50ISO External Right Regular 0.250 0.50 NA 0.433 0.002 0.024 0.024 11ER0.60ISO External Right Regular 0.250 0.60 NA 0.433 0.003 0.024 0.024 11ER0.70ISO External Right Regular 0.250 0.70 NA 0.433 0.003 0.024 0.024 o 11ER0.75ISO External Right Regular 0.250 0.75 NA 0.433 0.003 0.024 0.024 11ER0.80ISO External Right Regular 0.250 0.80 NA 0.433 0.004 0.024 0.024 o 11ER1.00ISO External Right Regular 0.250 1.00 NA 0.433 0.005 0.028 0.028 o 11ER1.25ISO External Right Regular 0.250 1.25 NA 0.433 0.006 0.031 0.035 11ER1.50ISO External Right Regular 0.250 1.50 NA 0.433 0.007 0.031 0.039 11ER1.75ISO External Right Regular 0.250 1.75 NA 0.433 0.008 0.031 0.043 16ER0.35ISO External Right Regular 0.375 0.35 NA 0.630 0.002 0.031 0.016 16ER0.40ISO External Right Regular 0.375 0.40 NA 0.630 0.002 0.028 0.016 16ER0.45ISO External Right Regular 0.375 0.45 NA 0.630 0.002 0.028 0.016 16ER0.50ISO External Right Regular 0.375 0.50 NA 0.630 0.002 0.024 0.024 16ER0.60ISO External Right Regular 0.375 0.60 NA 0.630 0.003 0.024 0.024 16ER0.70ISO External Right Regular 0.375 0.70 NA 0.630 0.003 0.024 0.024 16ER0.75ISO External Right Regular 0.375 0.75 NA 0.630 0.003 0.024 0.024 o 16ER0.80ISO External Right Regular 0.375 0.80 NA 0.630 0.004 0.024 0.024 o 16ER1.00ISO External Right Regular 0.375 1.00 NA 0.630 0.004 0.028 0.028 o 16ER1.25ISO External Right Regular 0.375 1.25 NA 0.630 0.004 0.031 0.035 o 16ER1.50ISO External Right Regular 0.375 1.50 NA 0.630 0.006 0.031 0.039 o 16ER1.75ISO External Right Regular 0.375 1.75 NA 0.630 0.007 0.035 0.047 o 16ER2.00ISO External Right Regular 0.375 2.00 NA 0.630 0.008 0.039 0.051 16ER2.50ISO External Right Regular 0.375 2.50 NA 0.630 0.012 0.043 0.059 16ER3.00ISO External Right Regular 0.375 3.00 NA 0.630 0.015 0.047 0.063 22ER3.50ISO External Right Regular 0.500 3.50 NA 0.866 0.017 0.063 0.091 22ER4.00ISO External Right Regular 0.500 4.00 NA 0.866 0.020 0.063 0.091 o 22ER4.50ISO External Right Regular 0.500 4.50 NA 0.866 0.023 0.067 0.094 o 22ER5.00ISO External Right Regular 0.500 5.00 NA 0.866 0.025 0.067 0.098 27ER5.50ISO External Right Regular 0.625 5.50 NA 1.063 0.028 0.075 0.106 27ER6.0QISO External Right Regular 0.625 6.00 NA 1.063 0.031 0.079 0.114 P o M O K O N O S O H me 1189 TPI Hand
