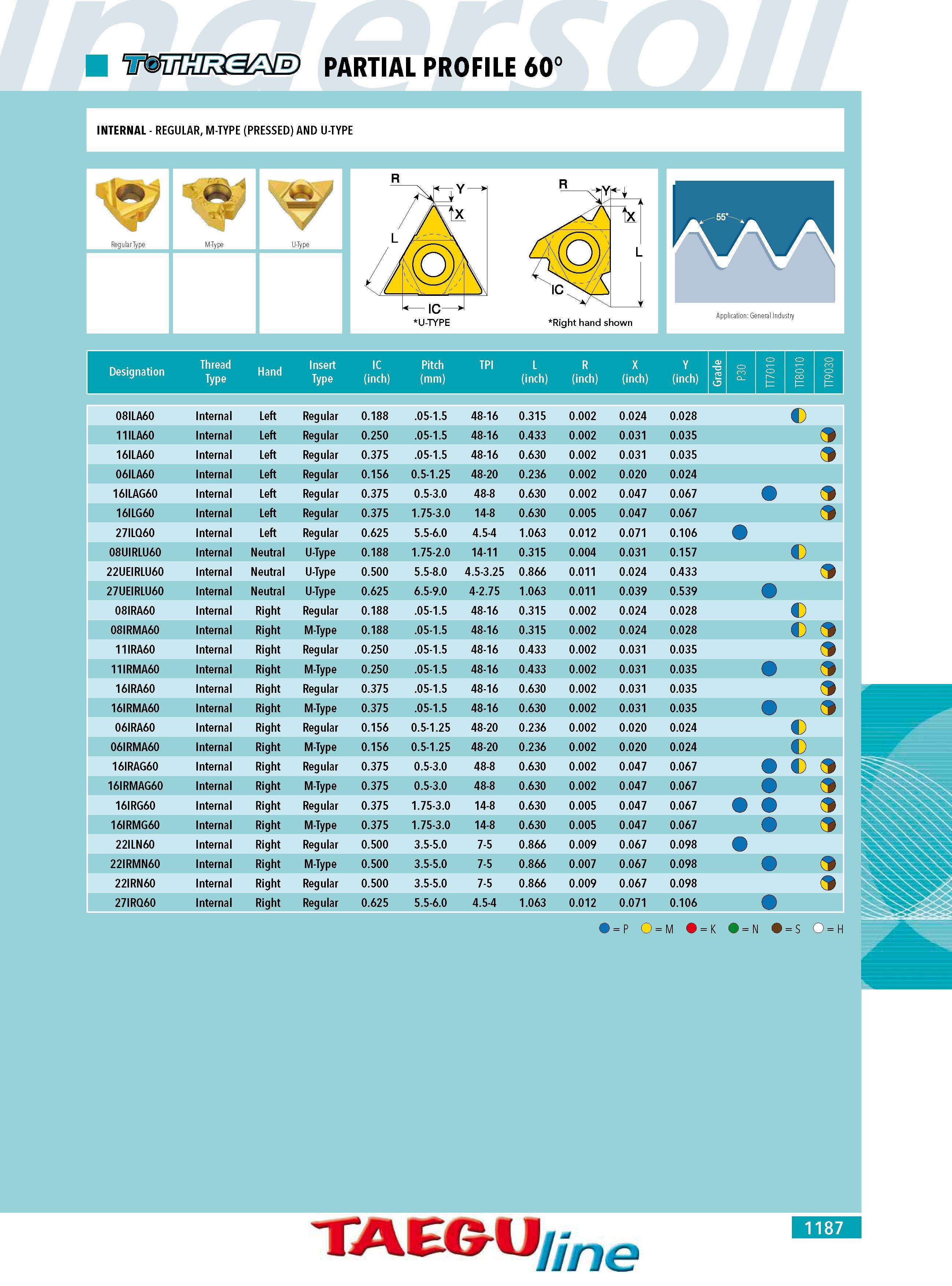

partial profile 60 Regular Type& M-Type U-Type Designation IC Pitch (inch) (mm) i k m L C S Right hand shown 1 55 A A Application: General Industry L R X Y (inch) (inch) (inch) (inch) 08ILA60 Internal Left Regular 0.188 .05-1.5 48-16 0.315 0.002 0.024 0.028 11ILA60 Internal Left Regular 0.250 .05-1.5 48-16 0.433 0.002 0.031 0.035 C 16ILA60 Internal Left Regular 0.375 .05-1.5 48-16 0.630 0.002 0.031 0.035 O 06ILA60 Internal Left Regular 0.156 0.5-1.25 48-20 0.236 0.002 0.020 0.024 16ILAG60 Internal Left Regular 0.375 0.5-3.0 48-8 0.630 0.002 0.047 0.067 16ILG60 Internal Left Regular 0.375 1.75-3.0 14-8 0.630 0.005 0.047 0.067 27ILQ60 Internal Left Regular 0.625 5.5-6.0 4.5-4 1.063 0.012 0.071 0.106 08UIRLU60 Internal Neutral U-Type 0.188 1.75-2.0 14-11 0.315 0.004 0.031 0.157 22UEIRLU60 Internal Neutral U-Type 0.500 5.5-8.0 4.5-3.25 0.866 0.011 0.024 0.433 O 27UEIRLU60 Internal Neutral U-Type 0.625 6.5-9.0 4-2.75 1.063 0.011 0.039 0.539 08IRA60 Internal Right Regular 0.188 .05-1.5 48-16 0.315 0.002 0.024 0.028 08IRMA60 Internal Right M-Type 0.188 .05-1.5 48-16 0.315 0.002 0.024 0.028 11IRA60 Internal Right Regular 0.250 .05-1.5 48-16 0.433 0.002 0.031 0.035 11IRMA60 Internal Right M-Type 0.250 .05-1.5 48-16 0.433 0.002 0.031 0.035 16IRA60 Internal Right Regular 0.375 .05-1.5 48-16 0.630 0.002 0.031 0.035 16IRMA60 Internal Right M-Type 0.375 .05-1.5 48-16 0.630 0.002 0.031 0.035 o 06IRA60 Internal Right Regular 0.156 0.5-1.25 48-20 0.236 0.002 0.020 0.024 06IRMA60 Internal Right M-Type 0.156 0.5-1.25 48-20 0.236 0.002 0.020 0.024 16IRAG60 Internal Right Regular 0.375 0.5-3.0 48-8 0.630 0.002 0.047 0.067 16IRMAG60 Internal Right M-Type 0.375 0.5-3.0 48-8 0.630 0.002 0.047 0.067 16IRG60 Internal Right Regular 0.375 1.75-3.0 14-8 0.630 0.005 0.047 0.067 c 16IRMG60 Internal Right M-Type 0.375 1.75-3.0 14-8 0.630 0.005 0.047 0.067 c 22ILN60 Internal Right Regular 0.500 3.5-5.0 7-5 0.866 0.009 0.067 0.098 22IRMN60 Internal Right M-Type 0.500 3.5-5.0 7-5 0.866 0.007 0.067 0.098 22IRN60 Internal Right Regular 0.500 3.5-5.0 7-5 0.866 0.009 0.067 0.098 27IRQ60 Internal Right Regular 0.625 5.5-6.0 4.5-4 1.063 0.012 0.071 0.106 P O M O K O N O S O H Insert Type TPI Hand TAEG-1l 7e 1187
