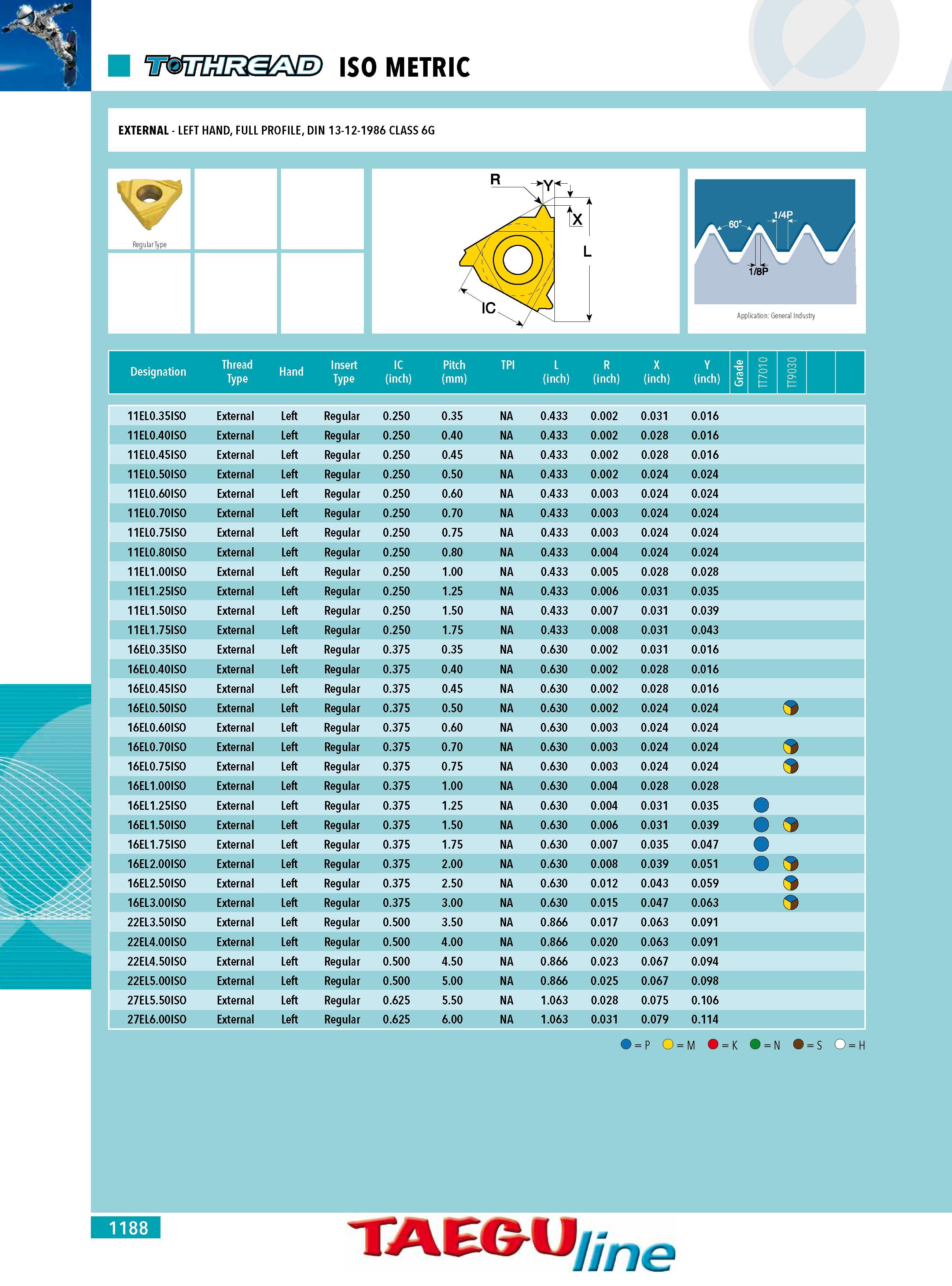

ISO METRIC Designation HY t lT (S L A . J v j Insert IC Pitch Type (inch) (mm) L R X Y (inch) (inch) (inch) (inch) 11EL0.35ISO External Left Regular 0.250 0.35 NA 0.433 0.002 0.031 0.016 11EL0.40ISO External Left Regular 0.250 0.40 NA 0.433 0.002 0.028 0.016 11EL0.45ISO External Left Regular 0.250 0.45 NA 0.433 0.002 0.028 0.016 11EL0.50ISO External Left Regular 0.250 0.50 NA 0.433 0.002 0.024 0.024 11EL0.60ISO External Left Regular 0.250 0.60 NA 0.433 0.003 0.024 0.024 11EL0.70ISO External Left Regular 0.250 0.70 NA 0.433 0.003 0.024 0.024 11EL0.75ISO External Left Regular 0.250 0.75 NA 0.433 0.003 0.024 0.024 11EL0.80ISO External Left Regular 0.250 0.80 NA 0.433 0.004 0.024 0.024 11EL1.00ISO External Left Regular 0.250 1.00 NA 0.433 0.005 0.028 0.028 11EL1.25ISO External Left Regular 0.250 1.25 NA 0.433 0.006 0.031 0.035 11EL1.50ISO External Left Regular 0.250 1.50 NA 0.433 0.007 0.031 0.039 11EL1.75ISO External Left Regular 0.250 1.75 NA 0.433 0.008 0.031 0.043 16EL0.35ISO External Left Regular 0.375 0.35 NA 0.630 0.002 0.031 0.016 16EL0.40ISO External Left Regular 0.375 0.40 NA 0.630 0.002 0.028 0.016 16EL0.45ISO External Left Regular 0.375 0.45 NA 0.630 0.002 0.028 0.016 16EL0.50ISO External Left Regular 0.375 0.50 NA 0.630 0.002 0.024 0.024 16EL0.60ISO External Left Regular 0.375 0.60 NA 0.630 0.003 0.024 0.024 16EL0.70ISO External Left Regular 0.375 0.70 NA 0.630 0.003 0.024 0.024 O 16EL0.75ISO External Left Regular 0.375 0.75 NA 0.630 0.003 0.024 0.024 16EL1.00ISO External Left Regular 0.375 1.00 NA 0.630 0.004 0.028 0.028 16EL1.25ISO External Left Regular 0.375 1.25 NA 0.630 0.004 0.031 0.035 16EL1.50ISO External Left Regular 0.375 1.50 NA 0.630 0.006 0.031 0.039 16EL1.75ISO External Left Regular 0.375 1.75 NA 0.630 0.007 0.035 0.047 16EL2.00ISO External Left Regular 0.375 2.00 NA 0.630 0.008 0.039 0.051 16EL2.50ISO External Left Regular 0.375 2.50 NA 0.630 0.012 0.043 0.059 16EL3.00ISO External Left Regular 0.375 3.00 NA 0.630 0.015 0.047 0.063 22EL3.50ISO External Left Regular 0.500 3.50 NA 0.866 0.017 0.063 0.091 22EL4.00ISO External Left Regular 0.500 4.00 NA 0.866 0.020 0.063 0.091 22EL4.50ISO External Left Regular 0.500 4.50 NA 0.866 0.023 0.067 0.094 22EL5.00ISO External Left Regular 0.500 5.00 NA 0.866 0.025 0.067 0.098 27EL5.50ISO External Left Regular 0.625 5.50 NA 1.063 0.028 0.075 0.106 27EL6.00ISO External Left Regular 0.625 6.00 NA 1.063 0.031 0.079 0.114 P o M O K O N o S O H 1188 TAEGU line TPI Hand
