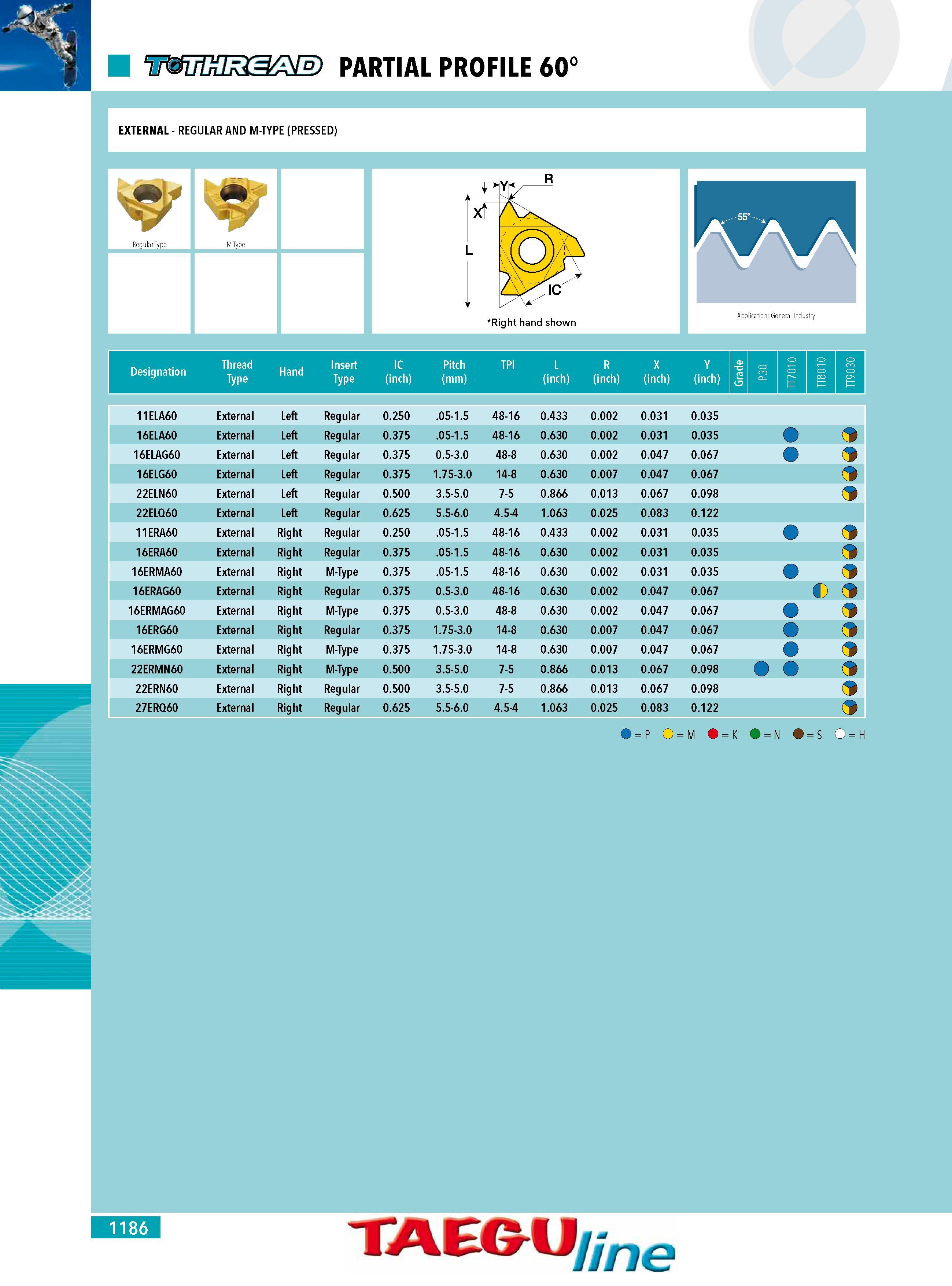

PARTIAL PROFILE 60' EXTERNAL - REGULAR AND M-TYPE (PRESSED) Regular Type M-Type 1C Right hand shown i 55 A A Application: General Industry Designation Thread Type Hand Insert Type IC (inch) Pitch (mm) TPI L (inch) R (inch) X (inch) Y (inch) Grade O 0 s s CO o 02 11ELA60 External Left Regular 0.250 .05-1.5 48-16 0.433 0.002 0.031 0.035 16ELA60 External Left Regular 0.375 .05-1.5 48-16 0.630 0.002 0.031 0.035 0 16ELAG60 External Left Regular 0.375 0.5-3.0 48-8 0.630 0.002 0.047 0.067 O 16ELG60 External Left Regular 0.375 1.75-3.0 14-8 0.630 0.007 0.047 0.067 o 22ELN60 External Left Regular 0.500 3.5-5.0 7-5 0.866 0.013 0.067 0.098 22ELQ60 External Left Regular 0.625 5.5-6.0 4.5-4 1.063 0.025 0.083 0.122 11ERA60 External Right Regular 0.250 .05-1.5 48-16 0.433 0.002 0.031 0.035 & 16ERA60 External Right Regular 0.375 .05-1.5 48-16 0.630 0.002 0.031 0.035 c 16ERMA60 External Right M-Type 0.375 .05-1.5 48-16 0.630 0.002 0.031 0.035 o 16ERAG60 External Right Regular 0.375 0.5-3.0 48-16 0.630 0.002 0.047 0.067 O 16ERMAG60 External Right M-Type 0.375 0.5-3.0 48-8 0.630 0.002 0.047 0.067 9 16ERG60 External Right Regular 0.375 1.75-3.0 14-8 0.630 0.007 0.047 0.067 Q 16ERMG60 External Right M-Type 0.375 1.75-3.0 14-8 0.630 0.007 0.047 0.067 22ERMN60 External Right M-Type 0.500 3.5-5.0 7-5 0.866 0.013 0.067 0.098 Q 22ERN60 External Right Regular 0.500 3.5-5.0 7-5 0.866 0.013 0.067 0.098 C 27ERQ60 External Right Regular 0.625 5.5-6.0 4.5-4 1.063 0.025 0.083 0.122 O P O M ; k O N O S O H 1186 TAEGU line
