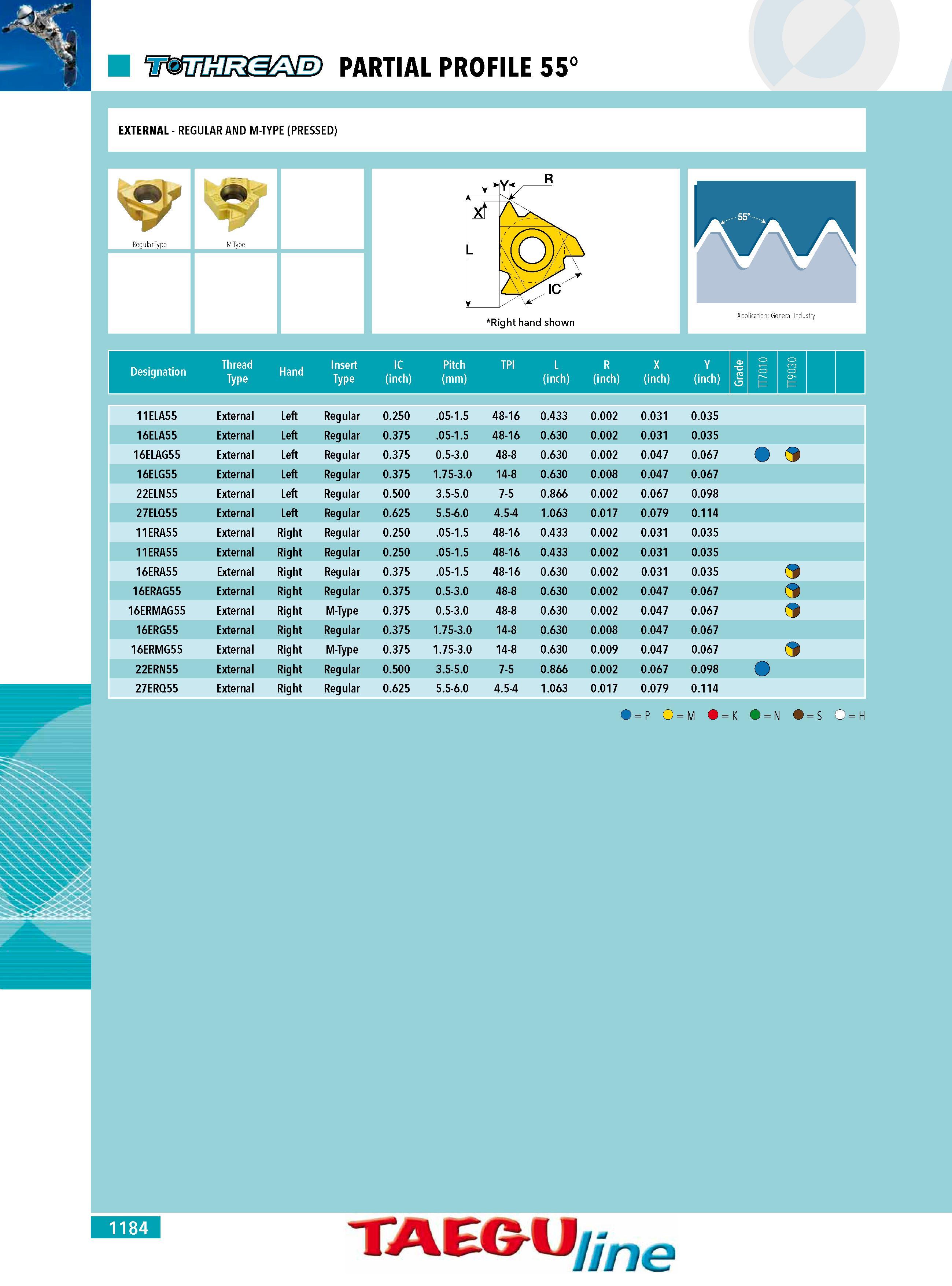

PARTIAL PROFILE 55' EXTERNAL - REGULAR AND M-TYPE (PRESSED) Regular Type M-Type i 55 A A Right hand shown Application: General Industry Designation Thread Type Hand Insert Type IC (inch) Pitch (mm) TPI L (inch) R (inch) X (inch) Y (inch) J nr 11ELA55 External Left Regular 0.250 .05-1.5 48-16 0.433 0.002 0.031 0.035 16ELA55 External Left Regular 0.375 .05-1.5 48-16 0.630 0.002 0.031 0.035 16ELAG55 External Left Regular 0.375 0.5-3.0 48-8 0.630 0.002 0.047 0.067 O 16ELG55 External Left Regular 0.375 1.75-3.0 14-8 0.630 0.008 0.047 0.067 22ELN55 External Left Regular 0.500 3.5-5.0 7-5 0.866 0.002 0.067 0.098 27ELQ55 External Left Regular 0.625 5.5-6.0 4.5-4 1.063 0.017 0.079 0.114 11ERA55 External Right Regular 0.250 .05-1.5 48-16 0.433 0.002 0.031 0.035 11ERA55 External Right Regular 0.250 .05-1.5 48-16 0.433 0.002 0.031 0.035 16ERA55 External Right Regular 0.375 .05-1.5 48-16 0.630 0.002 0.031 0.035 16ERAG55 External Right Regular 0.375 0.5-3.0 48-8 0.630 0.002 0.047 0.067 16ERMAG55 External Right M-Type 0.375 0.5-3.0 48-8 0.630 0.002 0.047 0.067 16ERG55 External Right Regular 0.375 1.75-3.0 14-8 0.630 0.008 0.047 0.067 16ERMG55 External Right M-Type 0.375 1.75-3.0 14-8 0.630 0.009 0.047 0.067 22ERN55 External Right Regular 0.500 3.5-5.0 7-5 0.866 0.002 0.067 0.098 O 27ERQ55 External Right Regular 0.625 5.5-6.0 4.5-4 1.063 0.017 0.079 0.114 P o M O K O N O S O H 1184 TAEOU me
