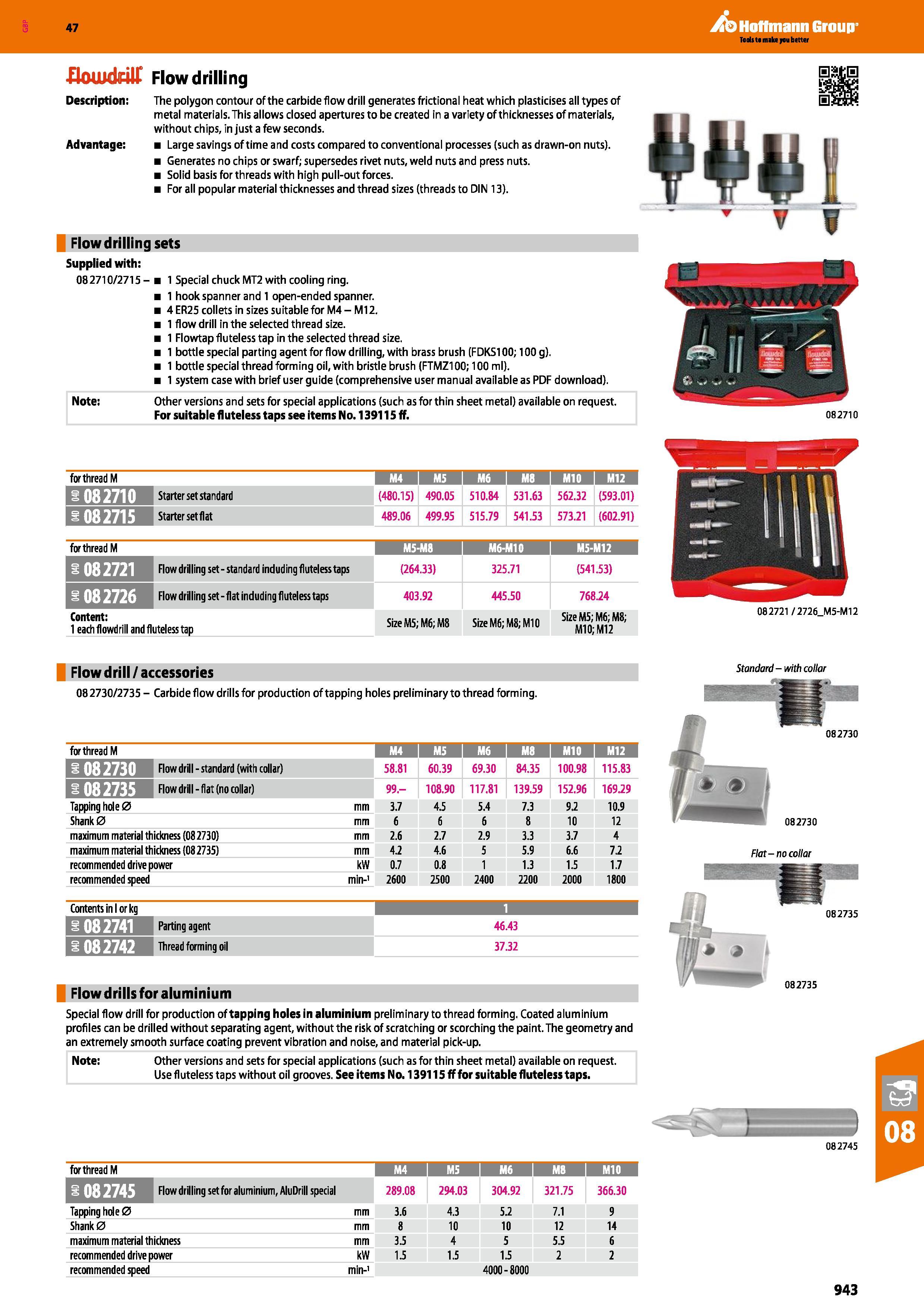

Hoffmann Group 47 EloUMfciK Flow drilling Description: The polygon contour of the carbide flow drill generates frictional heat which plasticises all types of metal materials. This allows closed apertures to be created in a variety of thicknesses of materials, without chips, in just a few seconds. Advantage: Large savings of time and costs compared to conventional processes (such as drawn-on nuts). Generates no chips or swarf; supersedes rivet nuts, weld nuts and press nuts. Solid basis for threads with high pull-out forces. For all popular material thicknesses and thread sizes (threads to DIN 13). Flow drilling sets Supplied with: 082710/2715-1 Note: 1 Special chuck MT2 with cooling ring. 1 hook spanner and 1 open-ended spanner. 4 ER25 collets in sizes suitable for M4 - M12. 1 flow drill in the selected thread size. 1 Flowtap fluteless tap in the selected thread size. 1 bottle special parting agent for flow drilling, with brass brush (FDKS100; 100 g). 1 bottle special thread forming oil, with bristle brush (FTMZ100; 100 ml). 1 system case with brief user guide (comprehensive user manual available as PDF download). Other versions and sets for special applications (such as for thin sheet metal) available on request. For suitable fluteless taps see items No. 139115 ff. for thread M KH M5 M10 I M12 Starter set standard (480.15) 490.05 510.84 531.63 562.32 (593.01) 11082715 489.06 499.95 515.79 541.53 573.21 (602.91) for thread M 8 M5-M8 M6-M10 M5-M12 1 1082721 Flow drilling set - standard induding fluteless taps (264.33) 325.71 (541.53) 1082726 Flow drilling set - flat induding fluteless taps 403.92 445.50 768.24 Content: 1 each flowdrill and fluteless tap SizeM5;M6;M8 SizeMfi; M8; M10 5izeM5;M6;M8; M10; M12 082721 /2726_M5-M12 Flow drill / accessories 082730/2735 - Carbide flow drills for production of tapping holes preliminary to thread forming. for thread M KIM M5 lUIBi M10 I M12 flKM£ V Flow drill-standard (with collar) 58.81 60.39 69.30 84.35 100.98 115.83 Flow drill-flat (no collar) 99.- 108.90 117.81 139.59 152.96 169.29 Tapping hole 0 mm 3.7 4.5 5.4 7.3 9.2 10.9 Shank 0 mm 6 6 6 8 10 12 maximum material thickness (082730) mm 2.6 2.7 2.9 3.3 3.7 4 maximum material thickness (082735) mm 4.2 4.6 5 5.9 6.6 7.2 recommended drive power kW 0.7 0.8 1 1.3 1.5 1.7 recommended speed min-1 2600 2500 2400 2200 2000 1800 Contents in lor kg 1 1 1 1 1 i Parting agent 46.43 1082742 Thread forming oil 37.32 Flow drills for aluminium Special flow drill for production of tapping holes in aluminium preliminary to thread forming. Coated aluminium profiles can be drilled without separating agent, without the risk of scratching or scorching the paint. The geometry and an extremely smooth surface coating prevent vibration and noise, and material pick-up. Note: Other versions and sets for special applications (such as for thin sheet metal) available on request. Use fluteless taps without oil grooves. See items No. 1391 IS ff for suitable fluteless taps. 082745 for thread M 1 M4 S M5 I M I M8 M10 Flow drilling set for aluminium, AluDrill special 289.08 294.03 304.92 321.75 366.30 Tapping hole 0 mm 3.6 4.3 5.2 7.1 9 Shank 0 mm 8 10 10 12 14 maximum material thickness mm 3.5 4 5 5.5 6 recommended drive power kW 1.5 1.5 1.5 2 2 recommended speed min-1 4000-8000 082710 Standard - with collar 082730 082730 Flat-no collar 943
