941 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.941

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 941 0941 ENG Lab2u

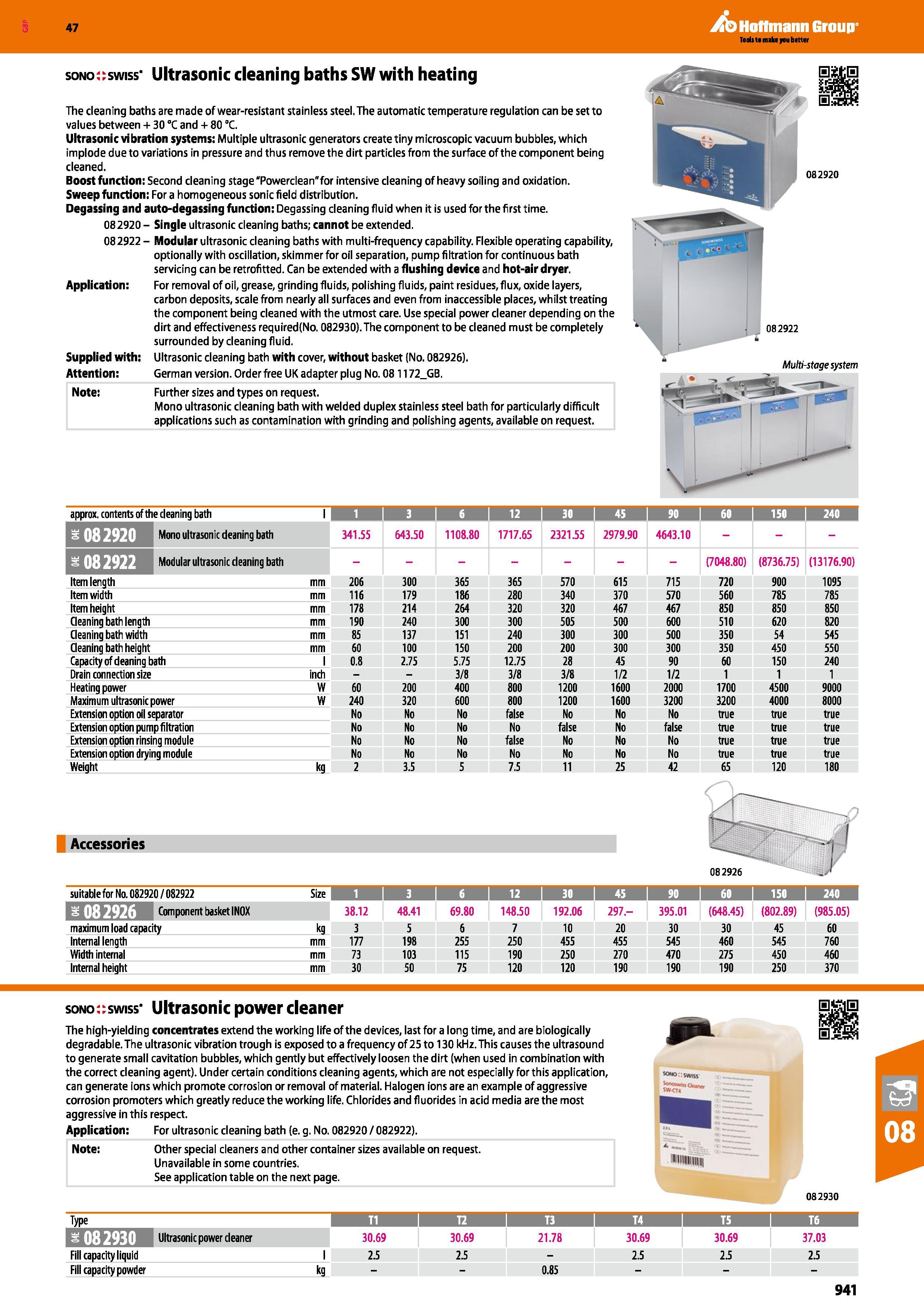

Hoffmann Group 47 sono;rswiss Ultrasonic cleaning baths SW with heating The cleaning baths are made of wear-resistant stainless steel. The automatic temperature regulation can be set to values between + 30 °C and + 80 °C. Ultrasonic vibration systems: Multiple ultrasonic generators create tiny microscopic vacuum bubbles, which implode due to variations in pressure and thus remove the dirt particles from the surface of the component being cleaned. Boost function: Second cleaning stage "Powerclean"for intensive cleaning of heavy soiling and oxidation. Sweep function: For a homogeneous sonic field distribution. Degassing and auto-degassing function: Degassing cleaning fluid when it is used for the first time. 082920 - Single ultrasonic cleaning baths; cannot be extended. 082922 - Modular ultrasonic cleaning baths with multi-frequency capability. Flexible operating capability, optionally with oscillation, skimmer for oil separation, pump filtration for continuous bath servicing can be retrofitted. Can be extended with a flushing device and hot-air dryer. Application: For removal of oil, grease, grinding fluids, polishing fluids, paint residues, flux, oxide layers, carbon deposits, scale from nearly all surfaces and even from inaccessible places, whilst treating the component being cleaned with the utmost care. Use special power cleaner depending on the dirt and effectiveness required(No. 082930). The component to be cleaned must be completely surrounded by cleaning fluid. Ultrasonic cleaning bath with cover, without basket (No. 082926). German version. Order free UK adapter plug No. 081172_GB. Supplied with: Attention: Note; Further sizes and types on request. Mono ultrasonic cleaning bath with welded duplex stainless steel bath for particularly difficult applications such as contamination with grinding and polishing agents, available on request. approx. contents of the cleaning bath 1 1 1 3 6 i 12 j 30 I 45 i 90 I 60 150 j 240 Mono ultrasonic deaning bath 341.55 643.50 1108.80 1717.65 2321.55 2979.90 4643.10 Modular ultrasonic cleaning bath - (7048.80) (8736.75) (13176.90) Item length mm 206 300 365 365 570 615 715 720 900 1095 Item width mm 116 179 186 280 340 370 570 560 785 785 Item height mm 178 214 264 320 320 467 467 850 850 850 Cleaning bath length mm 190 240 300 300 505 500 600 510 620 820 Cleaning bath width mm 85 137 151 240 300 300 500 350 54 545 Cleaning bath height mm 60 100 150 200 200 300 300 350 450 550 Capacity of deaning bath 1 0.8 2.75 5.75 12.75 28 45 90 60 150 240 Drain connection size inch 3/8 3/8 3/8 1/2 1/2 1 1 1 Heating power W 60 200 400 800 1200 1600 2000 1700 4500 9000 Maximum ultrasonic power W 240 320 600 800 1200 1600 3200 3200 4000 8000 Extension option oil separator No No No false No No No true true true Extension option pumpfiltration No No No No false No false true true true Extension option rinsing module No No No false No No No true true true Extension option drying module No No No No No No No true true true Weight kg 2 3.5 5 7.5 11 25 42 65 120 180 Accessories suitable for Na 082920 / 082922 Size 1 I 3 I 6 i 12 i 30 45 i 90 i 60 I 150 j 240 j Component basket IN0X 38.12 48.41 69.80 148.50 192.06 297- 395.01 (648.45) (802.89) (985.05) maximum load capacity kg 3 5 6 7 10 20 30 30 45 60 Internal length mm 177 198 255 250 455 455 545 460 545 760 Width internal mm 73 103 115 190 250 270 470 275 450 460 Internal height mm 30 50 75 120 120 190 190 190 250 370 sonoirswiss Ultrasonic power cleaner The high-yielding concentrates extend the working life of the devices, last for a long time, and are biologically degradable. The ultrasonic vibration trough is exposed to a frequency of 25 to 130 kHz. This causes the ultrasound to generate small cavitation bubbles, which gently but effectively loosen the dirt (when used in combination with the correct cleaning agent). Under certain conditions cleaning agents, which are not especially for this application, can generate ions which promote corrosion or removal of material. Halogen ions are an example of aggressive corrosion promoters which greatly reduce the working life. Chlorides and fluorides in acid media are the most aggressive in this respect. Application: For ultrasonic cleaning bath (e. g. No. 082920/082922). Note: Other special cleaners and other container sizes available on request. Unavailable in some countries. See application table on the next page. 5°f >sw ss SKf’ =r m iSE 082930 Type TI 1 12 1 T3 i T4 1 T5 i T6 i IKyi.' tM Ultrasonic power cleaner 30.69 30.69 21.78 30.69 30.69 37.03 Fill capacity liquid 1 2.5 2.5 - 2.5 25 2.5 Fill capacity powder kg 0.85 082922 Multi-stage system 082920 082926 941
